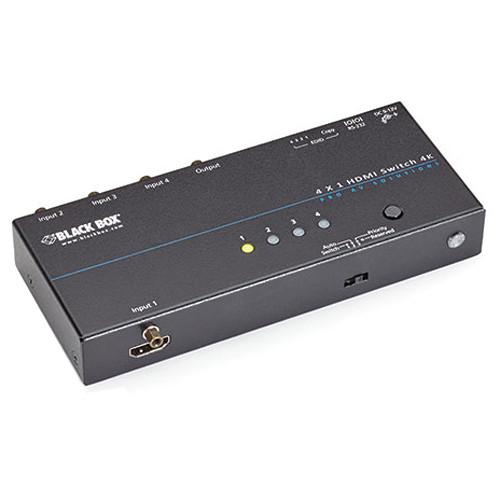

Product description This 4K HDMI Matrix Switch from Black Box routes 4 HDMI sources to 1 HDMI display. Multi-controlled functions include front-panel buttons with LED indicators, IR remote, and serial control, allowing you to operate the system easily. The 4K HDMI switch can operate in auto mode and priority mode. The system can either automatically select the latest video source for display in auto mode, or automatically select a video source following priority order in priority mode. It also offers EDID copy function to ensure the optimal resolution for your application. The built-in serial interface allows users to control the HDMI Matrix through a PC, serial controller devices, or home theater system, integrating the whole A/V environment. - Supports 4 displays as input and 1 HDMI display as output
- Supports resolutions up to full HD 1080p/4K
- Non-volatile memory stores all settings in case of blackout
- Auto-sensing function automatically selects active input source or prioritized source
- Control the switch via the front-panel push button or IR remote controller (included)
- Individually turn ON/OFF the output port
- Optimizes signals by choosing the best output setting from the available alternatives
- Compatible with HDTV and 3D HDTV
- Complies with HDCP standard
In the Box Black Box 4K HDMI Matrix Switch (4 x 1) Power Adapter IR Remote Controller Set of Foot Pads Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box 4K HDMI Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box VSW-HDMI4X1-4K Specs | Frequency Range | 25 to 297 MHz | | Resolution | Maximum 4K @ 30 Hz | | Modes | Switch / Autosensing / Priority / Matrix | | MTBF | 50,000 hours | | EDID | Configuration:
Video: Auto/inventory
Audio: Auto/inventory | | User Control | Port selection switch button, EDID copy button, EDID switch for EDID selection, EGO setting switch for auto functions | | HDMI | Port Type: Female
4 x Input
1 x Output | | Serial Port | 1 x RJ-12 female | | Power | 100 to 240 VAC, 50 to 60 Hz, 45 W
9 to 12 VDC (power adapter included) | | Indicators | 4 x LEDs for input status | | Approvals | FCC Part 15, CE, UL, RoHS, CSA, TUV | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140° F (-20 to 60° C) | | Relative Humidity | 80% | | Altitude | 10,000' (3048 m) | | Dimensions | 0.8 x 6.1 x 2.6" (2.0 x 15.6 x 6.5 cm) | | Weight | 1.55 lb (0.7 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 9.3 x 6.2 x 2.7" |
