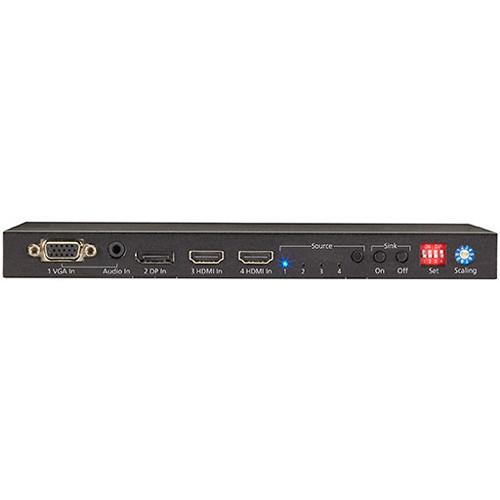

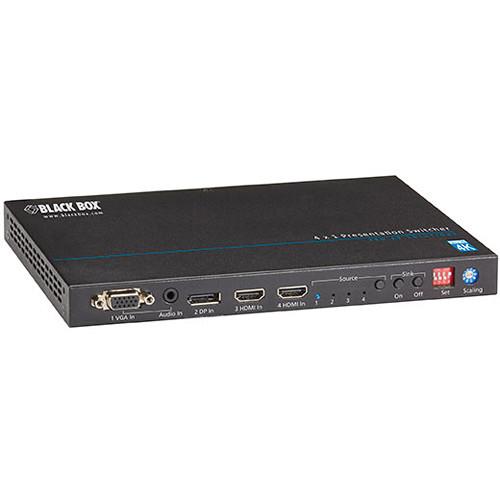

Product description The 4x1 4K Presentation Switcher from Black Box is an advanced multi-format converter, switcher, scaler, and extender with built-in 4K scaling. Designed with four inputs, you can switch, scale, and extend the signal to one high-resolution display using the HDMI and VGA outputs. The switcher provides stereo audio inputs via the VGA. It also supports balanced stereo audio output via the 5-pin Phoenix connector. -
- Supports HDMI and DP input up to 4K @ 30 Hz and HDCP 1.4, and VGA input up to 1920 x 1200 @ 60 Hz
- Provides HDMI out with a 4K @ 30 Hz built-in scaler, and de-embedded balanced stereo audio out
- HDBaseT with PoH allows you to power the remote HDBaseT receivers and transmitters (not included)
- Switches automatically to the latest input when it detects any input being connected or disconnected
In the Box Black Box 4x1 4K Presentation Switcher with HDMI/DisplayPort/VGA/HDBaseT Wall Mount Bracket Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box 4x1 4K Presentation Switcher with HDMI DisplayPort VGA HDBaseT in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

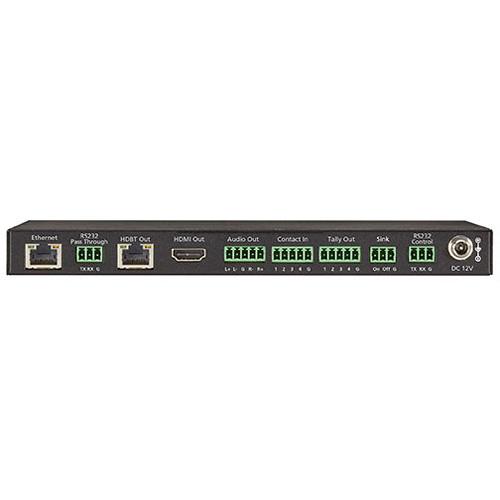

Technical parametersBlack Box AVSC-0401H Specs | | | Video Input | 2 x HDMI
1 x DisplayPort
1 x VGA | | Audio Input | 1 x Stereo audio (embedded with VGA inputs) | | Video Output | 1 x RJ-45 HDBaseT
1 x HDMI (video outputs are mirrored; only the HDMI output supports scaling) | | Audio Output | 1 x Balanced stereo audio output (5-pin Phoenix connector) | | Input/Output Signal | HDMI 1.4, HDBaseT | | Input/Output Resolutions | VESA (60 Hz):
1920 x 1200
1680 x 1050
1600 x 1200/900
1440 x 900
1366 x 768
1360 x 768
1280 x 1024/960/800/768
1024 x 768
800 x 600
640 x 480
SMPTE:
3840 x 2160 @ 30 Hz
1920 x 1080 @ 50/60 Hz
1280 x 720 @ 50/60 Hz
720 x 576 @ 50 Hz
720 x 480 @ 60 Hz | | Deep Color | 1080p: 48-bit
4K: 24-bit | | Format | HDMI Out:
PCM 2.0 and Dolby 5.1
HDBaseT Out:
Multi-channel digital audio supporting up to 7.1 DTS Master HD and Dolby True HD
Audio Out:
PCM2.0 | | | | Control Method | RS-232, front-panel buttons, contact closures | | Approvals | CE, FCC | | | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Humidity | 10 to 90%, non-condensing | | | | ESD Protection | Human Body Model:
±8 kV (air-gap discharge)
±4 kV (contact discharge) | | Surge Protection | Voltage:
±1 kV (ten times respectively for the positive and negative voltage) | | Burst Capability | Data Communication Cord:
1 kV
Power Cord:
2 kV | | Power Supply | 12 VDC, 3 A | | Power Consumption | 22 W maximum | | Approvals | CE, FCC | | | | Rack Height | 1 RU | | Dimensions | 0.8 x 8.7 x 6.5" (2.1 x 16.4 x 22.0 cm) | | Weight | 1.8 lb (0.8 kg) | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 14.252 x 10.315 x 3.622" |
