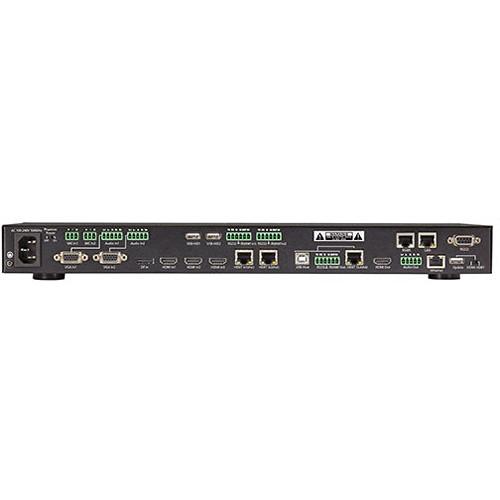

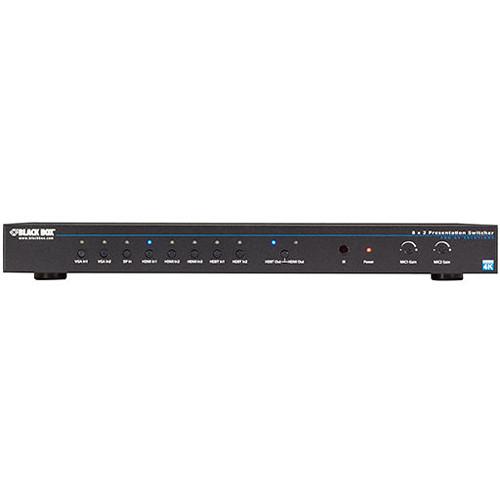

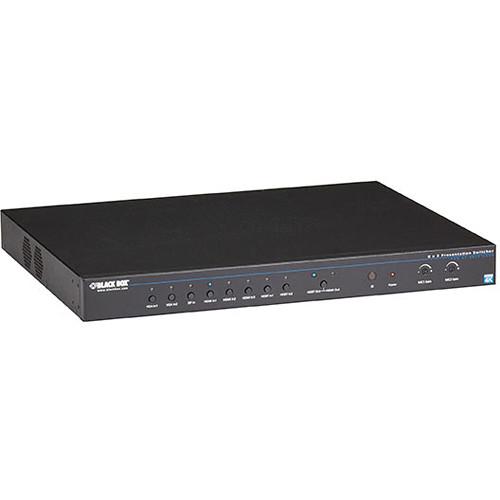

User Manual for Black Box 8x2 4K Presentation Switcher with HDMI DisplayPort VGA HDBaseT Support Click to enlarge the picture
Contents of the user manual for the Black Box 8x2 4K Presentation Switcher
- Product category: Routers & Switchers Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box Routers & Switchers
 |
User manual for the Black Box 8x2 4K Presentation Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description The 8x2 4K Presentation Switcher from Black Box is an advanced multi-format converter, switcher, scaler, and extender with built-in 4K scaling. Designed with eight inputs, you can switch, scale, and extend the signal to two high-resolution displays using the HDMI and VGA outputs. The switcher provides stereo audio inputs via the VGA. It also supports balanced stereo audio output via the 5-pin Phoenix connector. -
- Supports HDMI and DP input up to 4K @ 30 Hz and HDCP 1.4, and VGA input up to 1920 x 1200 @ 60 Hz
- Provides HDMI out with a 4K @ 30 Hz scaler built-in and de-embedded balanced stereo audio out
- HDBaseT with PoH allows you to power the remote HDBaseT receivers and transmitters (not included)
- Switches automatically to the latest input when it detects any input being connected or disconnected
In the Box Black Box 8x2 4K Presentation Switcher with HDMI/DisplayPort/VGA/HDBaseT Support Wall Mount Bracket Limited 3-Year Warranty, with Options to Extend Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box 8x2 4K Presentation Switcher with HDMI DisplayPort VGA HDBaseT Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box AVSC-0802H Specs | | | Video Input | 3 x HDMI
2 x VGA
1 x DisplayPort
2 x HDBaseT | | Audio Input | 2 x Microphone (3-pin Phoenix connector)
2 x Balanced stereo audio (5-pin Phoenix connector) | | Video Output | 1 x RJ-45 HDBaseT
1 x HDMI (video outputs are mirrored; only the HDMI output supports scaling) | | Audio Output | 1 x Balanced stereo audio output (5-pin Phoenix connector) | | Input/Output Signal | HDMI 1.4, HDBaseT | | Input/Output Resolutions | VESA (60 Hz):
1920 x 1200
1680 x 1050
1600 x 1200/900
1440 x 900
1366 x 768
1360 x 768
1280 x 1024/960/800/768
1024 x 768
800 x 600
640 x 480
SMPTE:
3840 x 2160 @ 30 Hz
1920 x 1080 @ 50/60 Hz
1280 x 720 @ 50/60 Hz
720 x 576 @ 50 Hz
720 x 480 @ 60 Hz | | Deep Color | 1080p: 48-bit
4K: 24-bit | | Format | HDMI Out:
PCM 2.0 and Dolby 5.1
HDBaseT Out:
Multi-channel digital audio supporting up to 7.1 DTS Master HD and Dolby True HD
Audio Out:
PCM2.0 | | | | Control Method | RS-485, RS-232, IP (Web UI or Telnet), IR remote, front-panel buttons | | Approvals | CE, FCC | | | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Humidity | 10 to 90%, non-condensing | | | | ESD Protection | Human Body Model:
±8 kV (air-gap discharge)
±4 kV (contact discharge) | | Surge Protection | Voltage:
±1 kV (ten times respectively for positive and negative voltage) | | Burst Capability | Data Communication Cord:
1 kV
Power Cord:
2 kV | | Power Supply | 100 to 240 VAC, 50/60 Hz | | Power Consumption | 73.5 W | | Approvals | CE, FCC | | | | Rack Height | 1 RU | | Dimensions | 1.7 x 17.3 x 13.0" (4.4 x 44.0 x 33.0 cm) | | Weight | 10.4 lb (4.7 kg) |
