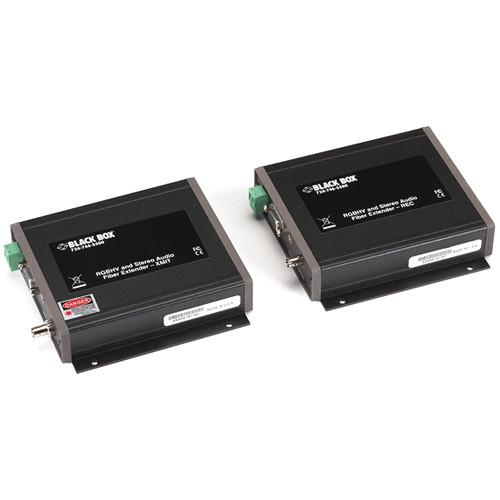

User Manual for Black Box AC1020A Multimedia over Fiber Single-Access Extender Kit Click to enlarge the picture
Contents of the user manual for the Black Box AC1020A Multimedia over Fiber
- Product category: KVM Extenders Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box KVM Extenders
|
User manual for the Black Box AC1020A Multimedia over Fiber contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description The AC1020A Multimedia (VGA/Audio) over Fiber Single-Access Extender Kit by Black Box, comprised of a local transmitter unit and a remote receiver unit, extends VGA and stereo audio signals up to 2460.6' over multimode fiber optic cable or up to 18.6 miles over single-mode fiber optic cable, at HDTV resolutions of 480p, 720p, and 1080i. The extender operates in the 1310nm wavelength for optical loss minimization. Designed for multimedia distribution applications, the AC1020A can work in point-to-point, point-to-multipoint, and drop-and-repeat configurations. A simple set of LEDs on the remote unit gives you immediate status updates. The extender's units are inter-operable with other Black Box VGA/audio fiber local and remote units; many different combinations are possible. No special software or drivers are required. - Extends VGA and stereo audio over fiber optic cable
- Up to 2460' extension over multimode fiber optic cable
- Up to 18.6 miles extension over single-mode fiber optic cable
- Supports HDTV resolutions of 480p, 720p, and 1080i (RGBHV format only)
- Point-to-point, point-to-multipoint, and drop-and-repeat configurations
- Digital processing ensures crystal-clear transmission with no color pixel skewing
- Units require no adjustments, equalization, or de-skewing
In the Box Black Box AC1020A Multimedia (VGA/Audio) over Fiber Single-Access Extender Kit 2 x Power Supplies 2 x 6' VGA 15-Pin Sub-D to 15-Pin Sub-D Cable 2 x 6' Stereo Audio 3.5 mm Plug to 3.5 mm Plug Cable 6' Stereo Audio 3.5 mm Plug to 2 RCA Male Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box AC1020A Multimedia over Fiber Single-Access Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box AC1020A Specs | Video Supported | VGA, SVGA, XGA, and WXGA | | Resolution | 480p, 720p, and 1080i (RGBHV format only) | | Transmission Range | 2461' (750 m) over multimode fiber cable
18.6 mi (30 km) over single-mode fiber cable | | Audio Bandwidth | 20 Hz - 20 kHz | | Wavelength | 1310 nm | | Connectors | Local Unit:
1 x 15-pin sub-D female, video
1 x 3.5 mm stereo jack, audio
1 x ST, fiber
1 x terminal block, power
Remote Unit:
1 x 15-pin sub-D female, video
1 x 3.5 mm stereo jack, audio
1 x ST, fiber
1 x terminal block, power | | Indicators | 1 x LED, power
1 x LED, video
1 x LED, audio | | Power | Local Unit: 9 - 24 VAC or VDC, 5 W
Remote Unit: 9 - 24 VAC or VDC, 5 W | | Dimensions (H x W x D) | Local Unit: 1.2 x 5 x 5.3" (3.1 x 12.7 x 13.5 cm)
Remote Unit: 1.2 x 5 x 5.3" (3.1 x 12.7 x 13.5 cm) | | Weight | Local Unit: 0.6 lb (0.3 kg)
Remote Unit: 0.6 lb (0.3 kg) |
