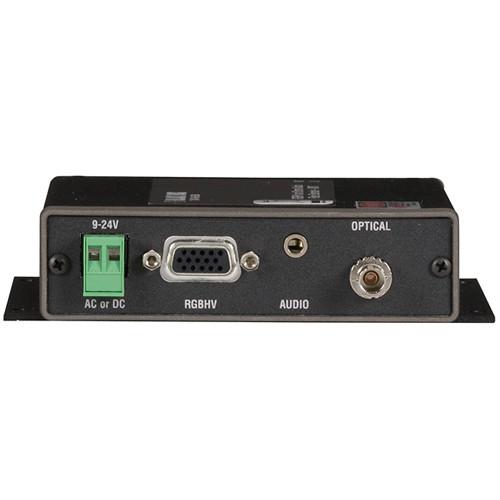

Product description The AC1021A-XMIT Multimedia (VGA/Audio) over Fiber Extender Local Unit without Local Access by Black Box transmits VGA and stereo audio signals to a remote unit (not included) located at a distance of up to 2460.6' over multimode fiber optic cable or up to 18.6 miles over single-mode fiber optic cable, at HDTV resolutions of 480p, 720p, and 1080i. The local unit operates in the 1310nm wavelength for optical loss minimization and maintains high-resolution video integrity with uncompressed, unscaled 24 bit RGB processing. Because the audio signals are also sent over fiber, you are not limited by copper distance restrictions or signal degradation. Designed for multimedia distribution applications, the AC1021A-XMIT can work in point-to-point, point-to-multipoint, and drop-and-repeat configurations. The unit can be operated in combination with nearly any fiber extender remote unit. No special software or drivers are required. - Transmits VGA and stereo audio over fiber optic cable
- Up to 2460' extension over multimode fiber optic cable
- Up to 18.6 miles extension over single-mode fiber optic cable
- Supports HDTV resolutions of 480p, 720p, and 1080i (RGBHV format only)
- Works in point-to-point, point-to-multipoint, and drop-and-repeat configurations
- Digital processing ensures crystal-clear transmission with no color pixel skewing
- Requires no adjustments, equalization, or de-skewing
In the Box Black Box AC1021A-XMIT Multimedia (VGA/Audio) over Fiber Extender Local Unit without Local Access Power Supply 6' 3.5mm Plug to Dual RCA Male Stereo Audio Cable 6' 3.5mm Plug to 3.5mm Plug Stereo Audio Cable 6' VGA Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box AC1021A-XMIT Multimedia over Fiber Extender Local Unit without Local Access in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box AC1021A-XMIT Specs | Resolution | 480p, 720p, and 1080i (RGBHV format only) | | Transmission Range | 2461' (750 m) over multimode fiber cable
18.6 mi (30 km) over single-mode fiber cable | | Cable Supported | Premium ceramic, multimode, 62.5 micron fiber optic cable, STâ"ST (e.g. EFN110-STST)
Single-mode, 9-micron duplex fiber optic cable, PVC, STâ"ST (e.g. EFN310-001M-STST) | | Video Supported | VGA, SVGA, XGA, and WXGA | | Audio Bandwidth | 20 Hz - 20 kHz | | Wavelength | 1310 nm | | Connectors | 1 x 15-pin Sub-D female, RGBHV video input
1 x 3.5 mm stereo phone jack, audio input
1 x ST optical fiber, output
1 x 2 poles terminal block, power | | Indicator LEDs | 1 x LED, power
1 x LED, video
1 x LED, audio | | Power | 9 - 24 VAC or VDC, 5 W | | Dimensions (H x W x D) | 1.2 x 5 x 5.3" (3.1 x 12.7 x 13.5 cm) | | Weight | 0.6 lb (0.3 kg) | | | | Box Dimensions (LxWxH) | 9.75 x 6.75 x 3.0" |
