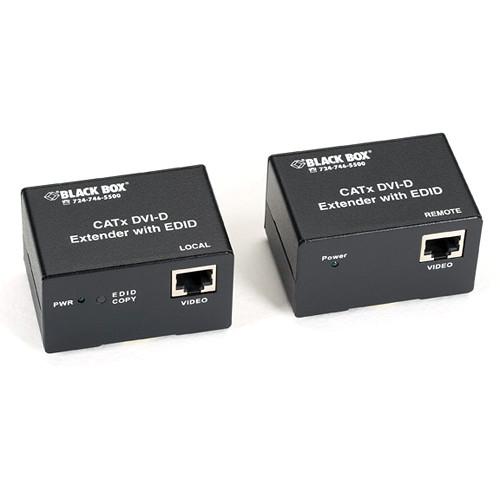

Product description The ACS2001A-R3 Multimedia (DVI-D/EDID) over CATx Single-Access Extender Kit by Black Box, comprised of a local transmitter unit and a remote receiver unit, allows you to broadcast DVI-D computer video with EDID up to 164' from the host computer over a CATx cable (CAT5 or higher). The video resolution goes up to 1280 x 1024 at 164' and 1920 x 1200 at 98.4'. DDC emulation is supported. The local unit features an "EDID copy" button for reading and remembering your monitor's EDID. Internal power protection ensures a continuous and steady video signal. The DVI-D output of your PC is connected to the local unit and your DVI-D display to the remote unit. The two units are interconnected with the CATx link cable, and each of them is powered by its own external power supply. - Extends DVI-D up to 164' over a CATx cable (CAT5 or higher)
- Capable of 1280 x 1024 at 164' and 1920 x 1200 at 98.4'
- Local unit reads and remembers monitor's EDID
- Internal power protection
UPC: 822088055693 In the Box Black Box ACS2001A-R3 Multimedia (DVI-D/EDID) over CATx Single-Access Extender Kit 2 x Universal Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box ACS2001A-R3 Multimedia over CATx Single-Access Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box ACS2001A-R3 Specs | Resolution | 1920 x 1200, 60 Hz at 98.4' (30 m)
1280 x 1024, 60 Hz at 164' (50 m) | | Transmission Range | 164' (50 m) maximum | | Connectors | Local Unit:
1 x RJ-45, interconnect
1 x DVI female, video input
1 x 5 VDC barrel power plug
Remote Unit:
1 x RJ-45, interconnect
1 x DVI female, video output
1 x 5 VDC barrel power plug | | Indicators | Local Unit:
1 x LED, power
Remote Unit:
1 x LED, power | | External Power Supply | Local Unit:
5 VDC, 1 A
Remote Unit:
5 VDC, 1 A | | Dimensions (H x W x D) | Local Unit: 1.5 x 2 x 2.6" (3.8 x 5.2 x 6.7 cm)
Remote Unit: 1.5 x 2 x 2.6" (3.8 x 5.2 x 6.7 cm) | | Weight | Local Unit: 0.3 lb (0.1 kg)
Remote Unit: 0.3 lb (0.1 kg) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 9.7 x 6.1 x 2.8" |
