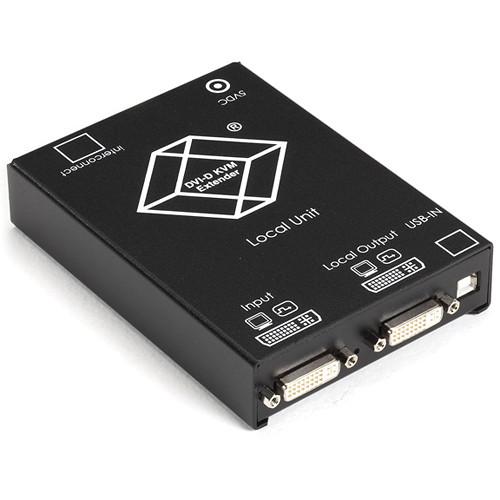

Product description The ACS4001A-R2-T ServSwitch KVM (DVI/USB) over CATx Extender Local Unit with DVI Output by Black Box is a standalone unit designed to transmit DVI-D video and USB keyboard and mouse signals to a ACS4001A-R2-R remote receiver unit (sold separately) located at a distance of up to 400' over a CATx cable (CAT5 or higher). The maximum resolution supported is 1920 x 1200. The local unit's output connector can be used either for connecting a local DVI-D monitor or for cascading other local transmitter units using ServSwitch KVM switches (sold separately). - Transmits DVI-D video and USB keyboard & mouse signals to a remote unit (sold separately) located up to 400' away
- Capable of 1920 x 1200 resolution
- Uses a CATx cable to connect to the remote unit
- Supports connection of local DVI-D monitor
- Cascade other local units using ServSwitch KVM switches (sold separately)
In the Box Black Box ACS4001A-R2-T ServSwitch KVM (DVI/USB) over CATx Extender Local Unit with DVI Output Power Supply and Cord DVI-I Dual-Link Video Cable USB Type A to Type B Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box ACS4001A-R2-T ServSwitch KVM over CATx Extender Local Unit with DVI Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box ACS4001A-R2-T Specs | Compatibility | Remote Receiver Unit: ACS4001A-R2-R
ServSwitch DKM DVI-D KVM Switches: ACX0808, ACX0816, ACX0832, ACX1616, ACX1632 | | Maximum Resolution | 1920 x 1200 @ 60 Hz, maximum | | Transmission Range | 400' (122 m) at 24 AWG
200' (61 m) at 26 or 28 AWG | | Connectors | 1 x DVI-D female, video input
1 x DVI-D female, video output
1 x USB type B female, USB input
1 x RJ-45, interconnect
1 x 5 VDC power plug | | Power | 90 - 240 VAC, 47 - 63 Hz, autosensing, external, with IEC 320 connector | | Dimensions (H x W x D) | 1.1 x 4 x 5.6" (2.8 x 10.2 x 14.2 cm) | | Weight | 1.3 lb (0.6 kg) | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 11.4 x 8.8 x 2.7" |
