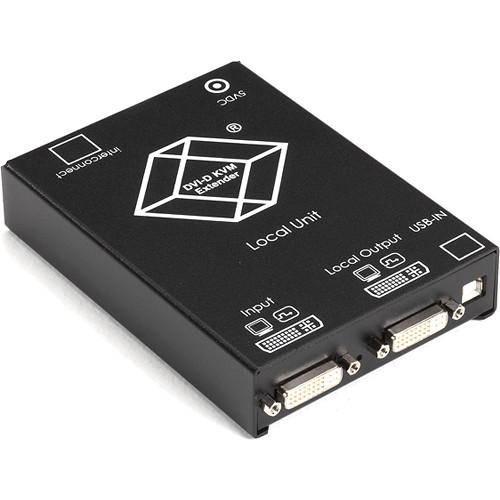

Product description The ACS4201A-R2 ServSwitch KVM (Dual-DVI/USB) over 2 CATx Dual-Access Extender Kit by Black Box, comprised of a local transmitter unit and a remote receiver unit, enables you to connect up to 2 DVI-D monitors directly to the computer on the transmitting end of the link and up to 2 DVI-D monitors at the receiving KVM console. This method of dual access enables you to use your computer at either location. Two CATx cables (CAT5, CAT5e, or CAT6 ) are used to extend your USB keyboard, USB mouse, and DVI-D video signals up to 400'. With this extender, you get video resolution of up to 1920 x 1200. - Supports transmission distances of up to 400' with a maximum resolution of 1920 x 1200
- Drives DVI-D and USB mouse & keyboard signals over CATx cabe
- Enables you to connect up to two DVI-D monitors to the computer and two at the remote KVM site
In the Box Black Box ACS4201A-R2 ServSwitch KVM (Dual-DVI/USB) over 2 CATx Dual-Access Extender Kit 2 x DVI-I Video Cable USB Cable 2 x 5 VDC Power Supply 2 x Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box ACS4201A-R2 ServSwitch KVM over 2 CATx Dual-Access Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box ACS4201A-R2 Specs | Color Depth | 18/21 bit | | Transmission Range | 24 AWG: 400' (121.9 m)
26 or 28 AWG: 200' (60.9 m) | | Maximum Resolution | 1920 x 1200 at 60 Hz | | Operating Temperature | 41 to 113°F (5 to 45°C) | | Humidity Tolerance | Up to 80% noncondensing | | Certification | CE | | Connectors | Local Unit:
1 x USB type B female, keyboard & mouse
2 x DVI-D female, monitor input
2 x DVI-D female, monitor output
2 x RJ-45 interconnect
1 x 5 VDC power plug
Remote Unit:
1 x USB type A female, keyboard
1 x USB type A female, mouse
2 x DVI-D female, monitor output
2 x RJ-45 interconnect
1 x 5 VDC power plug | | Power | 90 - 240 VAC, 47 - 63 Hz, autosensing, external, with IEC 320 connector and cord | | Dimensions (H x W x D) | Each Unit:
1.1 x 4 x 5.6" (2.8 x 10.2 x 14.2 cm) | | Weight | Each Unit:
1.3 lb (0.6 kg) |
