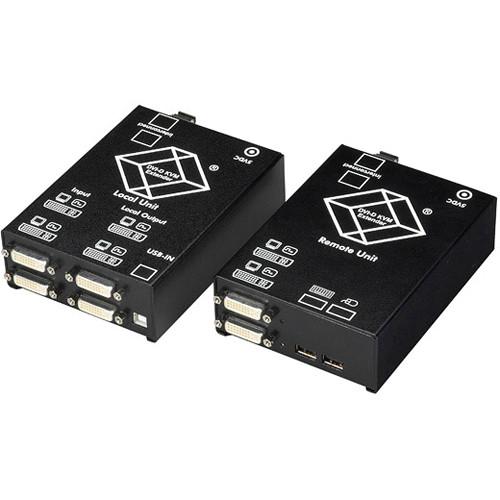

Product description The ACS4201A-R2-SM ServSwitch KVM (Dual-DVI/USB) over 2-Fiber Dual-Access Extender Kit by Black Box, comprised of a local transmitter unit and a remote receiver unit, extends dual-DVI-D video and USB keyboard & mouse signals up to 1300' over 2 multimode fiber optic cables or up to 6.2 miles over 2 single-mode fiber optic cables, with a video resolution of up to 1920 x 1200. A dual-access model, the ACS4201A-R2-SM enables you to connect 2 DVI-D monitors, a USB keyboard, and a USB mouse directly to the computer on the transmitting end of the fiber link and two DVI-D monitors, a USB keyboard, and a USB mouse to the remote unit. Use the 2 monitors on each end either for 2 different applications or to expand a single application that uses many windows. - Extends USB keyboard, dual-DVI-D video, and USB mouse signals up to 6.2 miles over 2 single-mode fiber optic cables
- Capable of 1920 x 1200 resolution
- Dual-access model enables you to operate your PC either from the local or remote dual-DVI user station
- Use the 2 monitors on each end either for 2 different applications or to expand a single application
In the Box Black Box ACS4201A-R2-SM ServSwitch KVM (Dual-DVI/USB) over 2-Fiber Dual-Access Extender Kit 2 x Power Supply and Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box ACS4201A-R2-SM ServSwitch KVM over 2-Fiber Dual-Access Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box ACS4201A-R2-SM Specs | Resolution | 1920 x 1200 at 60 Hz, maximum | | Transmission Range | 1300' (400 m) over multimode fiber
6.2 mi (10 km) over single-mode fiber | | Connectors | Local Unit:
1 x USB type B female
2 x DVI-D female, video input
2 x DVI-D female, video output
2 x pair of LC fiber, interconnect
1 x 5 VDC power plug
Remote Unit:
2 x USB type A female, keyboard and mouse
2 x DVI-D female, video output
2 x pair of LC fiber, interconnect
1 x 5 VDC power plug | | Power | 90 - 240 VAC, 47 - 63 Hz, autosensing, external, with IEC 320 connector | | Operating Temperature | 41 to 113°F (5 to 45°C) | | Humidity Tolerance | Up to 80% non-condensing | | Dimensions (H x W x D) | Local Unit: 1.6 x 4 x 5.6" (4.1 x 10.2 x 14.2 cm)
Remote Unit: 1.6 x 4 x 5.6" (4.1 x 10.2 x 14.2 cm) | | Weight | Local Unit: 1.3 lb (0.6 kg)
Remote Unit: 1.3 lb (0.6 kg) |
