User Manual for Black Box ACU075A-USB ServSwitch Short Range KVM over CAT5 Single-Access Extender Kit Click to enlarge the picture
Contents of the user manual for the Black Box ACU075A-USB ServSwitch Short Range
- Product category: KVM Extenders Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box KVM Extenders
|
User manual for the Black Box ACU075A-USB ServSwitch Short Range contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|

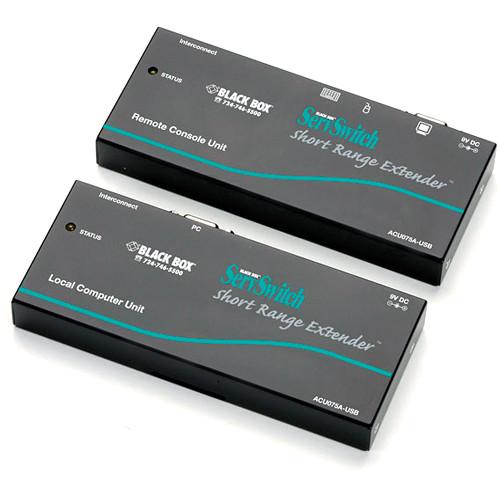

Product description This ACU075A-USB ServSwitch Short Range KVM (VGA/USB) over CAT5 Single-Access Extender Kit by Black Box, comprised of a local transmitter unit and a remote receiver unit, enables you to place a VGA monitor, a USB keyboard, and a USB mouse up to 75' from your PC's CPU (or KVM switch), using a CAT5 cable. The ACU075A-USB extender supports video resolution of 1280 x 1024 at 75'. The local unit is connected directly to a PC's CPU using the included KVM cable, and the monitor, keyboard & mouse are attached to the remote unit. Hotkeys are used to adjust video compensation and set the equalization on the remote unit according to the length of the cable used. Each unit features a LED indicator which lights up when the unit is powered. This extender supports common mice such as Microsoft IntelliMouse (Pro), Explorer, and Optical, and is compatible with XGA, VGA, and SVGA systems. - Place your USB keyboard, VGA monitor, and USB mouse up to 75' from your PC's CPU (or KVM switch)
- Capable of 1280 x 1024 at 75'
- Hotkey adjusts video compensation according to cable length
- LED power indicator on each unit
- Beep sound confirms key control
- Supports common mice such as Microsoft IntelliMouse (Pro), Explorer, and Optical
- Compatible with XGA, VGA, and SVGA systems
UPC: 822088065357 In the Box Black Box ACU075A-USB ServSwitch Short Range KVM (VGA/USB) over CAT5 Single-Access Extender Kit Power Supply 2 x Sets of Foot Pads KVM Cable, 3-to-1 Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box ACU075A-USB ServSwitch Short Range KVM over CAT5 Single-Access Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box ACU075A-USB Specs | Transmission Range | 75' (22.9 m) | | Resolution | 1280 x 1024 at 75' (22.8 m) | | Connectors | Local Unit:
1 x 15-pin Sub-D female, video
1 x RJ-45, interconnect
1 x barrel power plug
Remote Unit:
1 x 15-pin Sub-D female, video
1 x RJ-45, interconnect
2 x USB type A female, keyboard and mouse
1 x barrel power plug | | Indicators | Local Unit: 1 x LED, power
Remote Unit: 1 x LED, power | | Power | 9 VDC, 600 mA, external | | Dimensions (H x W x D) | Local Unit: 0.8 x 6.1 x 2.6" (2 x 15.6 x 6.5 cm)
Remote Unit: 0.8 x 6.1 x 2.6" (2 x 15.6 x 6.5 cm) | | Weight | Local Unit: 0.6 lb (0.3 kg)
Remote Unit: 0.6 lb (0.3 kg) | | | | Package Weight | 3.375 lb | | Box Dimensions (LxWxH) | 11.9 x 9.7 x 3.5" |
