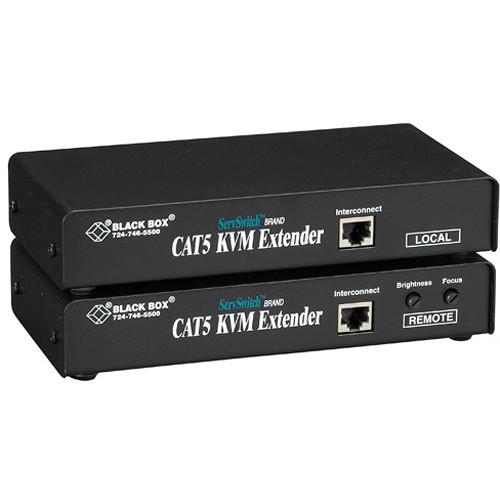

User Manual for Black Box ACU1002A ServSwitch KVM over CAT5 Single-Access Extender Kit Click to enlarge the picture
Contents of the user manual for the Black Box ACU1002A ServSwitch KVM over
- Product category: KVM Extenders Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box KVM Extenders
|
User manual for the Black Box ACU1002A ServSwitch KVM over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description The ACU1002A ServSwitch KVM (VGA/PS/2/Serial) over CAT5 Single-Access Extender Kit by Black Box, comprised of a local transmitter unit and a remote receiver unit, enables you to place a VGA monitor, a PS/2 keyboard, a PS/2 mouse, and a serial device (such as a modem, printer, or touch screen) as far as 1000' from your PC's CPU, using a CAT5 cable. This extender supports video resolutions of up to 1280 x 1024 at 393.7' and 1024 x 768 at 984.3'.
The local unit is connected directly to a PC's CPU or to the user port of a KVM switch using the included extension cable, and the remote KVM console is attached to the remote unit. The serial port enables you to connect almost any standard asynchronous RS-232 peripheral (including trackballs and serial mice) that operates at up to 19.2 kbps and doesn't require any control signals other than RTS, CTS, DSR, and DTR.
The remote unit features brightness and focus dials to adjust the screen image. Because the extender performs complete PS/2 keyboard and mouse emulation, you can boot the PC without having a keyboard or mouse attached to it. Your PC will boot even if your extender's remote unit is not powered or if no keyboard or mouse is connected to the local or remote unit. The keyboard and mouse can be unplugged and re-plugged without disrupting the operation of the PC. The extender requires no software and is compatible with all operating systems.
The remote unit draws its power from the included external power supply, and the local unit is powered by the connection from the CPU's keyboard port. Jumpers on the remote unit's board enable you to configure an equalization-adjustment range appropriate to the length of the cable connecting the local and remote units. Rotary controls on the remote unit enable you to adjust the compensation level while the system operates. The extender is compatible with Microsoft IntelliMouse and other wheel mice.
This extender is designed for use with CAT5 cable only. The tight wire twists in "higher" cables (CAT5e, CAT6, etc.) may degrade video signals. - Place your PS/2 keyboard, VGA monitor, PS/2 mouse, and a serial device (such as a modem, printer, or touch screen) as far as 1000' from your CPU or ServSwitch
- Capable of 1280 x 1024 at 300', or 1024 x 768 at 1000'
- Uses a single CAT5 UTP cable
- Fully adjustable video equalization, even at long distances and high resolutions
- All signals are fully buffered to ensure consistent remote operation of your PC
- Complete PS/2 mouse and keyboard emulation allows you to boot your PC without an attached mouse or keyboard
In the Box Black Box ACU1002A ServSwitch KVM (VGA/PS/2/Serial) over CAT5 Single-Access Extender Kit Power Supply and Cord CPU to Local Unit Cable Serial Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box ACU1002A ServSwitch KVM over CAT5 Single-Access Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box ACU1002A Specs | Clamping Voltage | 15 VDC | | Compatibility | Keyboard: IBM PC/AT, PS/2, (PC/AT types require connector adapter)
Video: : VGA, SVGA, XGA, XGA-2, or RGB (sync on green); call Black Box Tech Support if your system has monitor ID-bit requirements
Mouse: IBM PS/2 two button, Microsoft IntelliMouse, Logitech PS/2 three button | | Transmission Range | 1000' (305 m) | | Resolution | 1280 x 1024 at 300' (91.4 m)
1024 x 768 at 1000' (304.8 m) | | Serial Characteristics | Data Rate: 9600 bps or 19.2 kbps (user-selectable)
Data Format: 8 data bits, no parity, 1 stop bit (fixed)
Flow Control
Hardware: RTS/CTS passed through or looped back, DTR/DSR passed through or looped back, or none (user-selectable)
Software: Transparent to software flow control | | Video Characteristics | Bandwidth (to -3 dB):
Local unit 150 MHz
Remote unit 300 MHz
Across 328' (100 m) of UTP: 95 MHz (with equalization)
Compensation: 3-stage continuously variable
Coupling: DC
I/O Signal Levels: 0.7 VDC pp
Synchronization: H/V or composite, TTL signal levels; sync polarity is preserved | | Connectors | Local Unit:
2 x 6-pin mini DIN female, keyboard and mouse to CPU
1 x 15-pin Sub-D, female, video input
1 x 9-pin Sub-D female, serial port
1 x RJ-45, interconnect
Remote Unit:
2 x 6-pin mini DIN female, keyboard and mouse
1 x 15-pin Sub-D female, video output
1 x RJ-45 interconnect
1 x 9-pin Sub-D male, serial port
1 x 9 VDC barrel power plug | | Controls | Both Units:
1 x internal data-rate jumper
1 x internal flow-control jumper block
Remote Unit Only:
2 x front-mounted dials for brightness and focus
3 x internal video-distance (cable-length) jumpers
1 x internal 4-position DIP switch for various options | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Humidity Tolerance | 5 to 90%, noncondensing | | Power Supply | Local Unit: 5 VDC at up to 120 mA, CPU keyboard port
Remote Unit: 9 VDC, 1 A, external power supply | | External Power Supply (AC Adapter) | 100 - 240 VAC, 50-60 HZ external, autosensing, with IEC 320 connector | | Dimensions (H x W x D) | Local Unit: 1.4 x 7.8 x 3.9" (3.6 x 19.8 x 9.9 cm)
Remote Unit: 1.4 x 7.8 x 3.9" (3.6 x 19.8 x 9.9 cm) | | Weight | Local Unit: 1.1 lb (0.5 kg)
Remote Unit: 1.1 lb (0.5 kg) |
