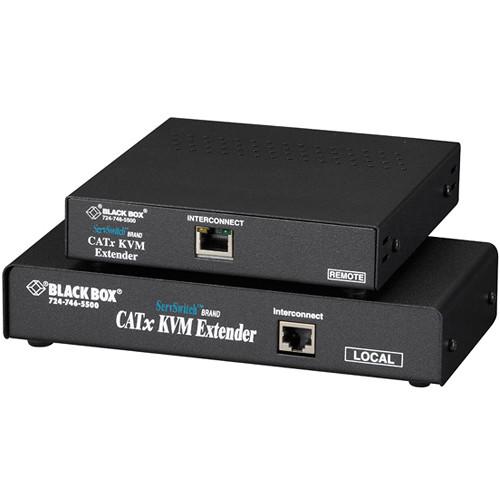

User Manual for Black Box ACU2001A ServSwitch KVM over CATx Single-Access Extender Kit Click to enlarge the picture
Contents of the user manual for the Black Box ACU2001A ServSwitch KVM over
- Product category: KVM Extenders Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box KVM Extenders
|
User manual for the Black Box ACU2001A ServSwitch KVM over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description The ACU2001A ServSwitch KVM (VGA/PS/2) over CATx Single-Access Extender Kit by Black Box, comprised of a local transmitter unit and a remote receiver unit, enables you to place a VGA monitor, a PS/2 keyboard, and a PS/2 mouse up to 984.2' from your PC's CPU, using a CATx cable (CAT5 or higher). The ACU2001A extender supports video resolutions of up to 1600 x 1200 at 656.2' and 1280 x 1024 at 984.3' and features skew compensation. The local unit is connected directly to a PC's CPU using the included extension cable, and the monitor, keyboard & mouse are attached to the remote unit. All KVM signals are fully buffered to ensure consistent remote operation of your PC.
The remote unit's deskewing technology removes color drift by delaying some color signals to compensate for differences in wire pairs. Skew compensation works with all colors transmitted, resulting in a maximum compensation of 42ns, which is sufficient for most applications. Independent low-frequency and high-frequency equalization adjustment enables you to fine-tune the video to match your cable type. Video tuning and configuration can be done by entering simple commands on the keyboard attached to the remote unit. Preset modes help you find the right image balance, and the "quick skew" feature facilitates fast video tuning. All settings can be stored in EEPROM memory.
Because the extender performs complete PS/2 keyboard and mouse emulation, you can boot the PC without having a keyboard or mouse attached to it. The extender is compatible with Microsoft IntelliMouse and other wheel mice. The extender requires no software. The remote unit draws its power from the included external supply, and the local unit is powered by the connection from the CPU's keyboard port. - Place your PS/2 keyboard, VGA monitor, and PS/2 mouse up to 984.3' from your CPU
- Remote unit includes built-in skew compensator
- Capable of 1600 x 1200 at 656.2' and 1280 x 1024 at 984.3'
- Uses a single CATx (CAT5 or higher) cable
- All signals are fully buffered to ensure consistent remote operation of your PC
- Complete PS/2 mouse and keyboard emulation allows you to boot your PC without an attached mouse or keyboard
- Monitor skew compensation can be fine-tuned easily via keyboard hotkey commands
- Skew settings are stored in the EEPROM memory
In the Box Black Box ACU2001A ServSwitch KVM (VGA/PS/2) over CATx Single-Access Extender Kit Cable from CPU to Local Unit Video Input Cable Power Cord Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box ACU2001A ServSwitch KVM over CATx Single-Access Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box ACU2001A Specs | Clamping Voltage | 15 VDC | | Compatibility | Keyboard: PS/2, PC/AT (with optional AC244A and FA212-R2)
Video: VGA, Super VGA, XGA
Mouse: PS/2 mouse only (user) | | Transmission Range | 984.3' (300 m), maximum | | Resolution | 1600 x 1200, 60 Hz at 656.1' (200 m)
1280 x 1024, 75 Hz at 984.2' (300 m) | | Connectors | Local Unit:
2 x 6-pin mini DIN female, keyboard and mouse
1 x 15-pin Sub-D male, video output
1 x RJ45, interconnect
Remote Unit
2 x 6-pin mini DIN female, keyboard and mouse input
1 x 15-pin Sub-D female, video output
1 x RJ45, interconnect
1 x barrel power plug | | Indicators | Local Unit:
1 x green LED, power
1 x yellow LED, data transfer
Remote Unit:
1 x green LED, power
1 x yellow LED, data transfer | | Power Supply | Local Unit: From the PC
Remote Unit: 9 VDC | | External Power Supply (AC Adapter) | 100 - 240 VAC, 50 - 60 Hz | | Dimensions (H x W x D) | Local Unit: 1.4 x 3.9 x 7.8" (3.6 x 9.9 x 19.8 cm)
Remote Unit: 1.1 x 5.7 x 5.5" (2.8 x 14.5 x 14 cm) | | | | Package Weight | 4.3 lb | | Box Dimensions (LxWxH) | 11.9 x 8.8 x 3.9" |
