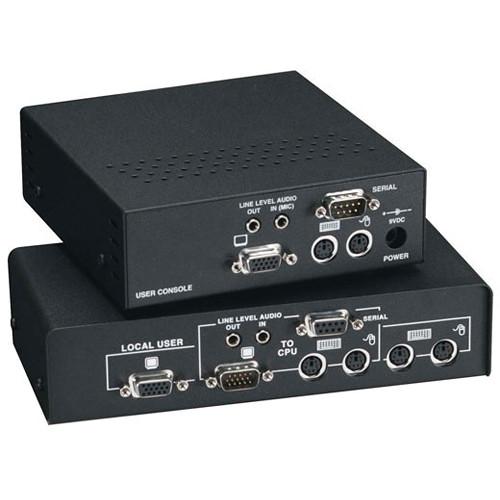

Product description The ACU2028A ServSwitch KVM (VGA/PS/2/Audio/Serial) over CATx Dual-Access Extender Kit by Black Box, comprised of a local transmitter unit and a remote receiver unit, enables you to access your PS/2 CPU from either a local or a remote PS/2 keyboard, VGA monitor, and PS/2 mouse. CATx cable (either CAT5, CAT5e, or CAT6) is used to extend the distance from your PC up to 984.3'. Serial control and bidirectional stereo audio ports on each unit allow you to connect serial and audio devices at both workstations. This extender features skew compensation and supports video resolutions of up to 1600 x 1200 at 656.2' and 1280 x 1024 at 984.3'.
The local unit is connected directly to a PC's CPU using the included extension cable, and the remote KVM console is attached to the remote unit. On the local end you can attach a local KVM console which will contend with the remote station for CPU control. Every time the inactivity timeout period elapses, the dual-user extender switches automatically to the first station from which it detects a keyboard or mouse activity.
The serial and bidirectional stereo audio extensions enable you to attach a serial control port device and audio devices to the remote station. Bidirectional stereo audio and full duplex serial data can be sent along with the KVM signals across the twisted-pair cable. For the serial interface, no setup or adjustments are required. The audio interface is designed to receive the output from a sound card (or other line-level) source and be connected to a set of powered speakers at the remote location. Stereo audio can be transmitted either way across the extender link. A microphone source input can be plugged into the remote unit.
The remote unit's deskewing technology removes color drift by delaying some color signals to compensate for differences in wire pairs. Skew compensation works with all colors transmitted, resulting in a maximum compensation of 42ns, which is sufficient for most applications. Independent low-frequency and high-frequency equalization adjustment enables you to fine-tune the video to match your cable type. Video tuning and configuration can be done by entering simple commands on the keyboard attached to the remote unit. Preset modes help you find the right image balance, and the "quick skew" feature facilitates fast video tuning. All settings can be stored in EEPROM memory.
Because the extender performs complete PS/2 keyboard and mouse emulation, you can boot the PC without having a keyboard or mouse attached to it. The extender is compatible with Microsoft IntelliMouse and other wheel mice. You can even use a standard PS/2 mouse at one user station and an IntelliMouse at the other. The extender requires no software. The remote unit draws its power from the included external supply, and the local unit is powered by the connection from the CPU's keyboard port. - Place your PS/2 keyboard, VGA monitor, and PS/2 mouse up to 984.3' from your CPU
- Dual-access model enables you to operate your PC either from the local or remote user station
- Serial extension and bidirectional stereo audio extension
- Remote unit includes built-in skew compensator
- Capable of 1600 x 1200 at 656.2' and 1280 x 1024 at 984.3'
- Uses a single CATx (CAT5 or higher) cable
- All signals are fully buffered to ensure consistent remote operation of your PC
- Complete PS/2 mouse and keyboard emulation allows you to boot your PC without an attached mouse or keyboard
- Monitor skew compensation can be fine-tuned easily via keyboard hotkey commands
- Skew settings are stored in the EEPROM memory
In the Box Black Box ACU2028A ServSwitch KVM (VGA/PS/2/Audio/Serial) over CATx Dual-Access Extender Kit CPU to Local Unit Cable Serial Cable Audio Cable Video Input Cable Power Cord Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box ACU2028A ServSwitch KVM over CATx Dual-Access Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box ACU2028A Specs | Clamping Voltage | 15 VDC | | Compatibility | Keyboard: PS/2, PC/AT (with optional AC244A and FA212-R2)
Video: VGA, Super VGA, XGA
Mouse: PS/2 mouse only (user) | | Max Resolution | 1600 x 1200, 60 Hz at 656.1' (200 m)
1280 x 1024, 75 Hz at 984.2' (300 m) | | Serial Characteristics | Baud Rate: 19,200 maximum
Data Format: Format independent
Flow Control: RTS, CTS, DTR, DSR sent across link | | Audio Characteristics | Input Impedance: 4Ω
Microphone Support: A mic can be connected to the remote unit; pull-up resistor provides bias for condensor mic; amplification can be set to +17 dB
Signal Levels: Line-level (4 V pp maximum)
Transmission Method: Digitized 16-bit, 38.4-kHz | | Connectors | Local Unit:
4 x 6-pin mini DIN female, keyboard and mouse
1 x 15-pin Sub-D male input, video
1 x 15-pin Sub-D female output, video
1 x 9-pin Sub-D female, serial port
1 x 3.5 mm line level input, audio
1 x 3.5 mm line level output, audio
1 x RJ45, interconnect
Remote Unit:
2 x 6-pin mini DIN female, keyboard and mouse
1 x 15-pin Sub-D female output, video
1 x 9-pin Sub-D male, serial port
1 x 3.5 mm line/microphone level input, audio
1 x 3.5 mm line level output, audio
1 x RJ45, interconnect
1 x barrel power plug | | Indicators | Local Unit:
1 x green LED, power
1 x yellow LED, data transfer
Remote Unit:
1 x green LED, power
1 x yellow LED, data transfer | | Power Supply | Local Unit: From the PC
Remote Unit: 9 VDC | | External Power Supply (AC Adapter) | 100 - 240 VAC, 50 - 60 Hz | | Dimensions (H x W x D) | Local unit: 1.7 x 3.9 x 7.8" (4.3 x 9.9 x 19.8 cm)
Remote unit: 1.7 x 5.7 x 5.5" (4.3 x 14.5 x 14 cm) |
