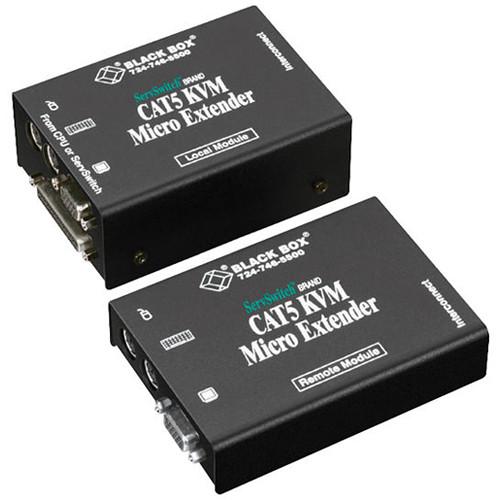

Product description The ACU3009A ServSwitch Micro KVM (VGA/PS/2) over CAT5 Dual-Access Extender Kit by Black Box, comprised of a local transmitter unit and a remote receiver unit, enables you to access your CPU from either a local or a remote PS/2 keyboard, VGA monitor, and PS/2 mouse. A CAT5 cable is used to extend the distance from your PC up to 160'. The maximum resolution supported is 1280 x 1024. All KVM signals are fully buffered to ensure consistent remote operation of your PC.
The local unit is connected directly to a PC's CPU using the included three-to-one cable and the remote KVM console is attached to the remote unit. The local KVM console, which is attached to the local unit, will contend with the remote station for CPU control. One station will be granted control while the user at that station is typing at the keyboard or moving the mouse. Once this activity stops for two seconds, the user at the other station can take take control.
The remote unit draws its power from the included external supply, and the local unit is powered by the connection from the CPU's keyboard port. A single DIP switch is set to tell the extender whether to equalize for CAT5 cable shorter or longer than 82'. Because the local unit always emulates a directly attached keyboard and mouse, you can unplug and replug any keyboard or mouse attached to the extender at any time without disrupting the booting or operation of your CPU. - Dual-access model enables you to operate your PC either from the local or remote user station
- Full-featured KVM extension with a pair of pocket-sized boxes
- Extends KVM signals up to 160'
- Supports resolutions up to 1280 x 1024
- Adjustable video equalization compensates for cable losses
- Fully buffered signals for transparent remote operation
In the Box Black Box ACU3009A ServSwitch Micro KVM (VGA/PS/2) over CAT5 Dual-Access Extender Kit 3' Coax CPU Cable Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box ACU3009A ServSwitch Micro KVM over CAT5 Dual-Access Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box ACU3009A Specs | Clamping Voltage | 15 VDC | | Compatibility | Video: VGA, SVGA, XGA, XGA-2, or RGsB (sync on green)
Keyboard: IBM PC/AT or PS/2 compatible (PC/AT types require connector adapter)
Mouse: IBM PS/2 compatible two-button, Microsoft IntelliMouse, or Logitech PS/2 compatible 3-button | | Transmission Range | 160' (48.8 m), maximum | | Resolution | 1280 x 1024 at 150' (45.7 m) | | Video Characteristics | Video I/O Signal Levels: 0.7 V pp
Video Compensation: For short or long distance (user-switchable)
Synchronization: H/V or composite, TTL signal levels; sync polarity is preserved
Video Coupling: DC | | Connectors | Local Unit
1 x 25 D-sub pin female, video, keyboard & mouse
1 x RJ-45, interconnect
1 x 15-pin D-sub female, video output to local monitor
2 x 6-pin mini DIN female, input from local keyboard & mouse
Remote Unit
1 x RJ-45, interconnect
1 x 15-pin D-sub female output, video
2 x 6-pin mini DIN female, keyboard and mouse
1 x barrel power plug | | User Controls | Keyboard commands
Bottom-mounted 2-position DIP switch for video distance (cable length) and keyboard command recognition, on remote unit | | Indicators and Controls | 1 x LED for power and link integrity (on the local unit) | | Temperature Tolerance | 32 to 104°F (0 to 40°C) | | Humidity Tolerance | 5 - 90% non-condensing | | Power | Local Unit: From the PC
Remote Unit: 9 VDC from external power supply | | External Power Supply (AC Adapter) | 100 - 240 VAC, 47 - 63 Hz | | Dimensions (H x W x D) | Local Unit: 1.7 x 4.3 x 3.1" (4.3 x 10.9 x 7.9 cm)
Remote Unit: 1.0 x 4.3 x 3.1" (2.5 x 10.9 x 7.9 cm) | | Weight | Local Unit: 13.5 oz (382 g)
Remote Unit: 8.3 oz (235 g) | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 9.3 x 6.1 x 3.7" |
