User Manual for Black Box ACU3209A ServSwitch Micro KVM over 2 CATx Dual-Access Extender Kit Click to enlarge the picture
Contents of the user manual for the Black Box ACU3209A ServSwitch Micro KVM
- Product category: KVM Extenders Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box KVM Extenders
|
User manual for the Black Box ACU3209A ServSwitch Micro KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|

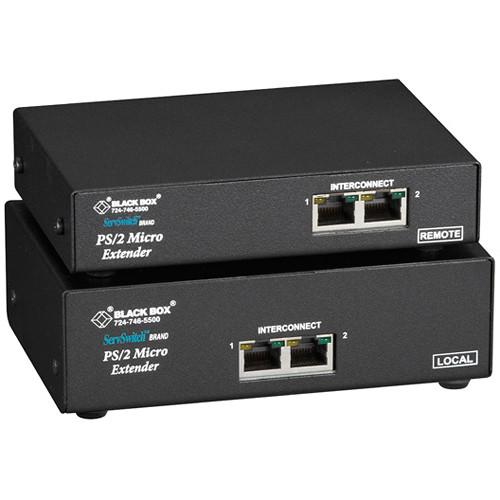

Product description The ACU3209A ServSwitch Micro KVM (Dual-VGA/PS/2) over 2 CATx Dual-Access Extender Kit by Black Box, comprised of a local transmitter unit and a remote receiver unit, extends 2 VGA video signals and enables you to place 2 VGA monitors, a PS/2 keyboard, and a PS/2 mouse up to 164' from your PC's CPU, using 2 CATx cables (CAT5 or higher), making use of the dual-head output supported by many graphics adapter cards. A dual-access model, the ACU3209A also enables you to connect a local console (one or two VGA monitors, a PS/2 keyboard, and a PS/2 mouse) to the local unit. The extender is flash upgradable and supports a maximum resolution of 1600 x 1200. - Dual-access model enables you to operate your PC either from the local or remote user station
- Extends a PS/2 computer with one PS/2 keyboard, one PS/2 mouse, and two VGA monitors
- Supports 1600 x 1200 resolution up to 164' away
- Suited to graphics-intensive extension applications
In the Box Black Box ACU3209A ServSwitch Micro KVM (Dual-VGA/PS/2) over 2 CATx Dual-Access Extender Kit Power Supply and Power Cord CPU Cable Video Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box ACU3209A ServSwitch Micro KVM over 2 CATx Dual-Access Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box ACU3209A Specs | Transmission Range | 164' (50 m) maximum | | Resolution | 1600 x 1200 maximum | | Connectors | Local Unit:
1 x 25-pin Sub-D female, video, keyboard & mouse
1 x 15-pin Sub-D male, video input
2 x 15-pin Sub-D female, video output
2 x 6-pin mini DIN female, keyboard and mouse
2 x RJ-45, interconnect
1 x barrel power plug
Remote Unit:
2 x 15-pin Sub-D female, video output
2 x 6-pin mini DIN female, keyboard and mouse
2 x RJ-45, interconnect
1 x barrel power plug | | Power | Local Unit:
Via PS/2 interface or optional external 9 VDC power supply
Remote Unit:
External power supply 100 - 240 VAC, 50 - 60 Hz (included) | | Dimensions (H x W x D) | Local Unit: 1.7 x 5.7 x 3.9" (4.4 x 14.5 x 10 cm)
Remote Unit: 1.1 x 5.4 x 3.9" (2.9 x 13.8 x 10 cm) | | Weight | Local Unit: 0.05 lb (20 g)
Remote Unit: 0.05 lb (20 g) |
