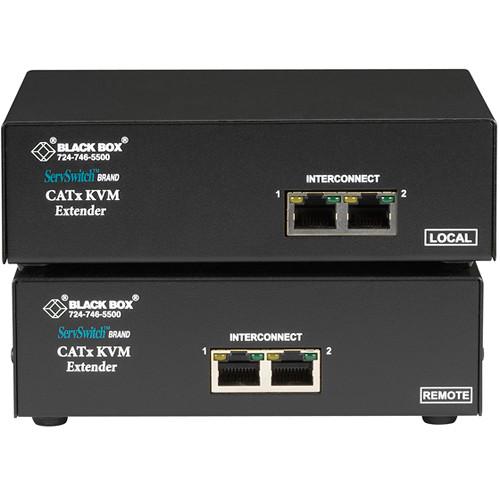

User Manual for Black Box ACU6222A ServSwitch KVM over 2 CATx Single-Access Extender Kit Click to enlarge the picture
Contents of the user manual for the Black Box ACU6222A ServSwitch KVM over
- Product category: KVM Extenders Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box KVM Extenders
|
User manual for the Black Box ACU6222A ServSwitch KVM over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description The ACU6222A ServSwitch KVM (Dual-VGA/USB/Audio/Serial) over 2 CATx Single-Access Extender Kit by Black Box, comprised of a local transmitter unit and a remote receiver unit, extends 2 VGA video channels and enables you to place 2 VGA monitors, a USB keyboard, a USB mouse, and other human interface devices up to 1000' from your PC's CPU (or ServSwitch unit), using a CATx cable (CAT5 or higher). Video resolution goes up to 1600 x 1200 over 650' or 1280 x 1024 over 1000'. The transparent serial port enables you to extend any serial device up to 19.2kbps. Extend one device requiring handshaking lines or up to three simple serial devices with no handshaking. This model also supports 16-bit, digitized stereo audio.
The local unit is connected directly to a PC's CPU (or ServSwitch) using the included extension cables, and the 2 remote monitors and USB devices are attached to the remote unit. Two local VGA monitors can be connected to the local unit. By means of a hotkey command you can switch to private mode, which darkens the local monitors. To configure the ACU6222A for dual-access operation, connect a keyboard and a mouse to the CPU's USB ports. The extender features emulated DDC on the local unit to ensure compatibility with multi-head graphics cards. The remote unit reads DDC tables from all attached monitors and transfers the data to the local unit, where it is stored to support non-standard displays. Independent low-frequency and high-frequency cable equalization control ensures optimum video tuning across different cable types. Control and video tuning are carried out using the remote keyboard with settings stored in EEPROM memory.
In most applications, the local unit draws its power from the USB interface but, if necessary, it also can be powered externally by an optional power supply (PSU1006E-R3). The remote unit is powered by the included external power supply. Compact in design, the extender units fit easily on a desktop. Three units can be rackmounted in 1RU of space within a 19" standard cabinet or rack using the optional rackmount kit (RMK19U-X3). - Extends USB signals and 2 VGA channels over 2 CATx cables to a distance of up to 1000'
- Local unit supports connection of 2 local VGA monitors
- Supports high-resolution video: 1600 x 1200 at 60Hz over 650' or 1280 x 1024 at 75Hz over 1000'
- Fully integrated skew compensation cancels color shift and enhances image sharpness
- Bidirectional stereo audio (16-bit, digitized) support for high-quality, low-noise audio extension
- Surge protection on each CATx port and power supply unit provides overvoltage detection
In the Box Black Box ACU6222A ServSwitch KVM (Dual-VGA/USB/Audio/Serial) over 2 CATx Single-Access Extender Kit Power Supply and Cord USB/Video Local Unit to CPU Cable Video Local Unit to CPU Cable Serial Cable Audio Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box ACU6222A ServSwitch KVM over 2 CATx Single-Access Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box ACU6222A Specs | Resolution | 1600 x 1200 at 60 Hz over 650' (200 m)
1280 x 1024 at 75 Hz over 1000' (300 m) | | Transmission Range | 1000' (300 m) maximum | | Video Compatibility | Analog VGA to UXGA, RGB | | Skew Compensation | 15 stage, 42 nS maximum, 2.8 nS per step
Compensation available on each color | | Video Compensation | Separate LF & HF equalizers | | USB Emulation Compatibility | Standard HID keyboards & mice, hubs | | Serial Interface | Max Baud Rate Supported: 19.2 K baud
Serial Data Format: Transparent
Signals Transferred: TX, RX, RTS, CTS, DTR, DSR | | Audio Interface | Description: Bi-directional stereo audio link
Transmission Method: Digitized virtually CD quality audio (16 bit, 38.4 kHz)
Signal Levels: Line level (4 V p-p maximum)
Input Impedance: 47 kΩ
Microphone Support: Microphone may be connected to remote unit; pull-up resistor provides bias for condenser microphone; option to set microphone amplification to +17 dB | | Connectors | Local Unit:
2 x 15-pin Sub-D male, video input
2 x 15-pin Sub-D female, video output
1 x USB type B
1 x 9-pin Sub-D female, serial control
2 x 3.5 mm line level, audio input/output
1 x RJ-45, interconnect
1 x 5 VDC power plug
Remote Unit:
2 x 15-pin Sub-D female, video output
4 x USB type A
1 x RJ-45, interconnect
1 x 9-pin Sub-D male, serial control
2 x 3.5 mm line level, audio input/output
1 x 5 VDC power plug | | Indicators | 2 x 3-status yellow LED, data transfer
2 x 3-status green LED, power | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Humidity Tolerance | 5-90% non-condensing | | Power | Local Unit:
5 VDC from the USB interface or optional power supply (PSU1006E-R3)
Remote Unit:
Input: 100 - 240 VAC, 50 - 60 Hz, auto-sensing, external
Output: 9 VDC, 4 A (20 W) | | Dimensions (H x W x D) | Local Unit: 5.7 x 4.5 x 1.2" (14.5 x 11.3 x 4.4 cm)
Remote Unit: 5.7 x 5.9 x 1.2" (14.4 x 15.1 x 4.4 cm) |
