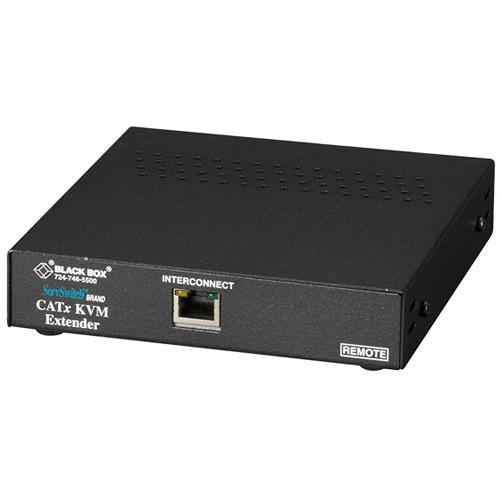

Product description The ACUR001A ServSwitch KVM (VGA/PS/2) over CATx Extender Remote Unit by Black Box is a standalone unit which enables you to enhance your video capabilities with skew compensation by replacing the remote unit of your ServSwitch extender hub. It receives KVM signals from the local transmitter unit, which can be located at a distance of up to 984.3'. The video resolutions supported include 1600 x 1200 at 656.2' and 1280 x 1024 at 984.3'. The ACUR001A remote unit is compatible with the ACU1006RA, ACU1012RA & ACU1006DRA rackmount ServSwitch KVM extender hubs.
This remote unit's deskewing technology removes color drift by delaying some color signals to compensate for differences in wire pairs. Skew compensation works with all colors transmitted, resulting in a maximum compensation of 42ns, which is sufficient for most applications. Independent low-frequency and high-frequency equalization adjustment enables you to fine-tune the video to match your cable type. Video tuning and configuration can be done by entering simple commands on the keyboard attached to the remote unit. Preset modes help you find the right image balance, and the "quick skew" feature facilitates fast video tuning. All settings can be stored in EEPROM memory. - Enhances the video capabilities of your extender hub with skew compensation
- Monitor skew compensation can be fine-tuned easily via keyboard hotkey commands
- Skew settings are stored in the EEPROM memory
- Compatible with rackmount ServSwitch CAT5 extender hubs ACU1006RA, ACU1012RA & ACU1006DRA
In the Box Black Box ACUR001A ServSwitch KVM (VGA/PS/2) over CATx Extender Remote Unit Power Supply Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box ACUR001A ServSwitch KVM over CATx Extender Remote Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box ACUR001A Specs | Clamping Voltage | 15 VDC | | Compatibility | ServSwitch CAT5 Extender Hub: ACU1006RA, ACU1012RA, ACU1006DRA
Keyboard: PS/2, PC/AT
Video: VGA, super VGA, XGA
Mouse: PS/2 | | Transmission Range | 984.3' (300 m), maximum | | Resolution | 1600 x 1200, 60 Hz at 656.2' (200 m)
1280 x 1024, 75 Hz at 984.3' (300 m) | | Connectors | 2 x 6-pin mini DIN female, keyboard and mouse
1 x 15-pin Sub-D female output, video
1 x RJ-45, interconnect
1 x barrel power plug | | Indicators | 1 x green LED, power
1 x yellow LED, data transfer | | External Power Supply (AC Adapter) | 100 - 240 VAC, 50 - 60 Hz, 9 VDC | | Dimensions (H x W x D) | 5.5 x 5.7 x 1.1" (140 x 145 x 29 mm) |
