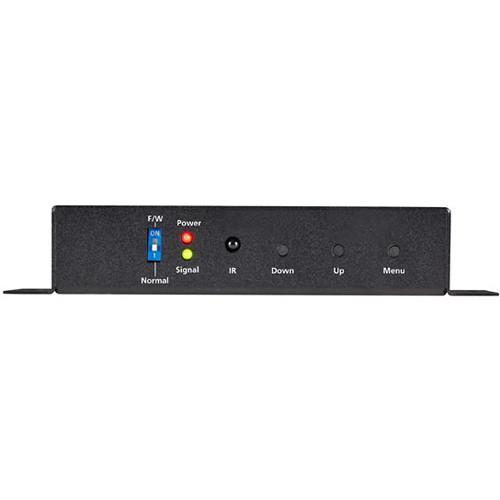

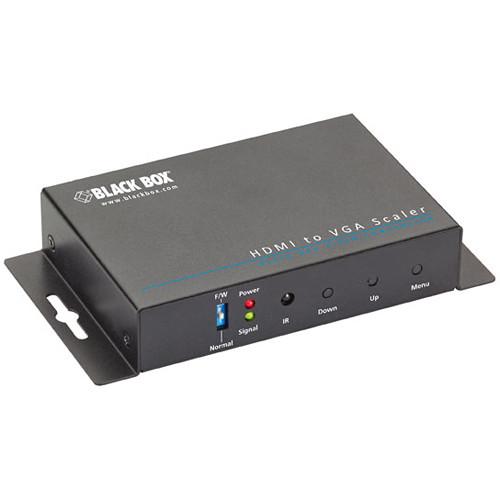

Product description The AVSC-HDMI-VGA HDMI to VGA Scaler from Black Box converts digital HDMI to analog PC video (VGA) with digital audio (S/PDIF) or analog stereo audio. With this module, VGA based receivers such as LCD monitors or plasma TVs can connect to HDMI sources such as DVD players, PCs or gaming consoles. It enables you to keep using your non-HDMI/DVI display to access HDMI or DVI sources for high-definition digital video and audio. - Supports auto-detection of resolution
- Features locking HDMI connector
- Locking power or optional USB power
- Includes an IR remote control
- Remote control via mini-USB
- Maximum pixel rate of 165 MHz
- Supports noise reduction and video enhancement features
- Over/under scanning adjustable
- Supports video H/V mirroring
- Supports active video area adjustment
- USB firmware upgradable for expanding compatibility
- Wall mount housing design for easy installation
In the Box Black Box AVSC-HDMI-VGA HDMI to VGA Scaler Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box AVSC-HDMI-VGA HDMI to VGA Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box AVSC-HDMI-VGA Specs | Video Input | HDMI | | Video Output | VGA
Component with adapter (adapter not included) | | Audio Input | Embedded HDMI | | Audio Output | Digital (S/PDIF)
Analog stereo | | Audio Support | Stereo PCM (48 kHz only), digital S/PDIF | | Frequency Bandwidth | Input: 165 MHz
Output: 165 MHz | | Connectors | Input: 1 x HDMI

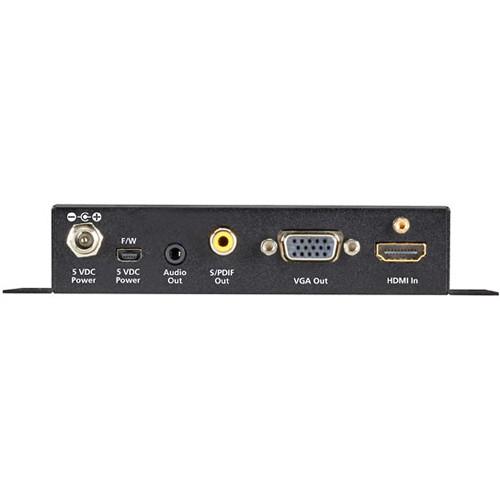

Output: 1 x VGA, or Component with adapter (adapter not included)
1 x S/PDIF
1 x stereo
Control and Power: 1 x USB mini B | | Indicators | 1 x Red LED (power)
1 x Green LED (video signal) | | Firmware Updates | via USB port | | Approvals | CE, FCC | | Enclosure | Metal wall mounting case with screws | | ESD Protection | Human Body Model:
±19 kV (air-gap discharge)
±12 kV (contact discharge)
Core Chipset: ±2 kV | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 20 to 90%, non-condensing | | Power | Supply: 5 VDC, 2 A
Consumption: 5 W maximum | | Dimensions | 1.1 x 4.3 x 3.3" (2.8 x 10.9 x 8.3 cm) | | Weight | 10 oz (290 g) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 8.0 x 5.6 x 3.1" |
