Black Box AVSC-SDI-HDMI SDI to HDMI

Search your instruction manual in PDF to download

User Manual for Black Box AVSC-SDI-HDMI SDI to HDMI Scaler and Converter

Click to enlarge the picture
Black Box AVSC-SDI-HDMI SDI to HDMI Scaler and Converter Contents of the user manual for the Black Box AVSC-SDI-HDMI SDI to HDMI
  • Product category: Signal Converters Black Box
  • Brand: Black Box
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Black Box Signal Converters

Black Box AVSC-SDI-HDMI SDI to HDMI Scaler and Converter Black Box AVSC-SDI-HDMI SDI to HDMI Scaler and Converter
User manual for the Black Box AVSC-SDI-HDMI SDI to HDMI contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Black Box product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!



Product description

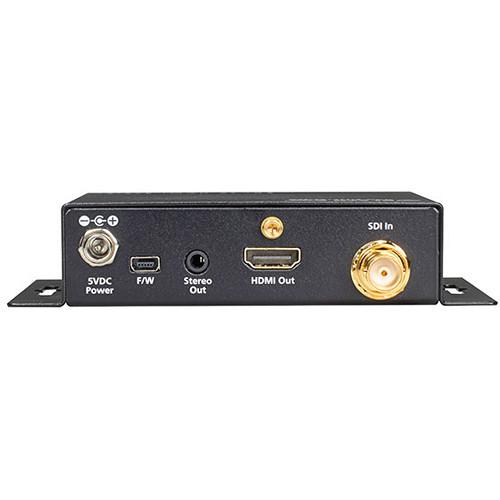

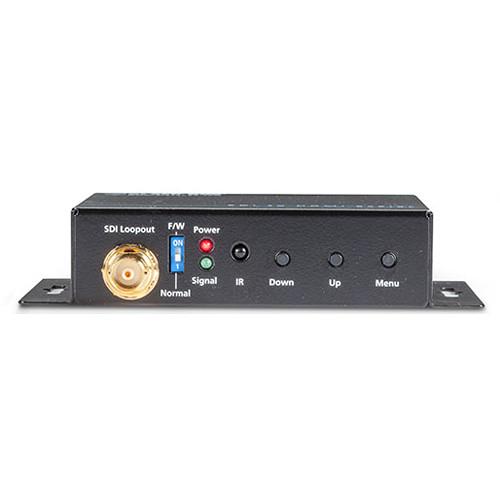

The AVSC-SDI-HDMI SDI to HDMI Scaler and Converter from Black Box converts digital 3D/HD/SD-SDI signal to HDMI digital video signal with analog stereo audio. With this module, 3G/HD/SD-SDI based devices such as Blu-ray disc players, gaming consoles, DVD players, camcorders, or set-top boxes can connect to your PC LCD monitors and speakers. The digital conversion between SDI and HDMI guarantees no loss transformation for both audio and video. Plus, with up to 8 channels audio support, 7.1 channel or 5.1 channel audio becomes available. The scaler also provides two low-jitter and re-clocked outputs for daisy-chaining or connecting multiple monitors.
    • Can be controlled via an IR remote
    • Can be controlled via mini-USB
    • Features an OSD control interface
    • Input bandwidth of 2.97 Gbps
    • Maximum output pixel rate of 165 MHz
    • Output video resolutions support multiple VESA standards
    • Supports de-interlacing
    • Supports noise reduction and video enhancement features
    • Over/under scanning adjustable
    • Supports video H/V mirroring
    • Supports active video area adjustment
    • USB firmware upgradable for expanding compatibility
    • Wall mount housing design for easy installation
In the Box Black Box AVSC-SDI-HDMI SDI to HDMI Scaler and Converter
  • 5 VDC, 2A Power Supply Unit
  • IR Remote Control
  • Software CD
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Black Box AVSC-SDI-HDMI SDI to HDMI Scaler and Converter in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Black Box AVSC-SDI-HDMI Specs

    Audio Support Stereo PCM (48 kHz only; up to 8 channel)
    Firmware Updates Via USB Port
    Frequency Bandwidth Output Video: 165 MHz
    Input Video: 2.970 Gbps, 2.970/1.001 Gbps
    Input Video Resolutions 3G:
    1080p @ 50/59, 94/60 Hz (4:2:2)

    HD:
    720p @ 50/59, 94/60 Hz, 1080i @ 50/59, 94/60 Hz, 1080p @24/30 Hz

    SD:
    NTSC @ 59.94 Hz, PAL @ 50 Hz
    SDI Standards SD-SDI, HD-SDI, and 3G-SDI
    Connectors Input:
    1 x 3G 75-ohm interlocked BNC socket (SDI)

    Output:
    1 x HDMI type A (19-pin female)
    1 x BNC (SDI loopout)
    1 x USB mini for firmware update
    Indicators 1 x Red LED for power
    1 x Green LED for video signal
    Approvals CE, FCC
    Enclosure Metal wall mounting case with screws
    ESD Protection Human Body Model:
    ±19 kV (air-gap discharge) and ±12 kV (contact discharge)
    Core Chipset:
    ±2 kV
    Operating Temperature 32 to 104°F (0 to 40°C)
    Storage Temperature -4 to 140°F (-20 to 60°C)
    Relative Humidity 20 to 90%, non-condensing
    Power Supply: 5 VDC, 2 A
    Consumption: 5 W maximum
    Dimensions 1.1 x 3.6 x 3.3" (2.8 x 9.2 x 8.3 cm)
    Weight 9 oz (260 g)
    Package Weight 2.0 lb
    Box Dimensions (LxWxH) 8.0 x 5.5 x 3.1"

    Rating

    50% users recommend this product to others. And what about you?
    Rating: 2.5 of 5

    This product has already been rated by 20 owners. Add your rating and experience with the product.
