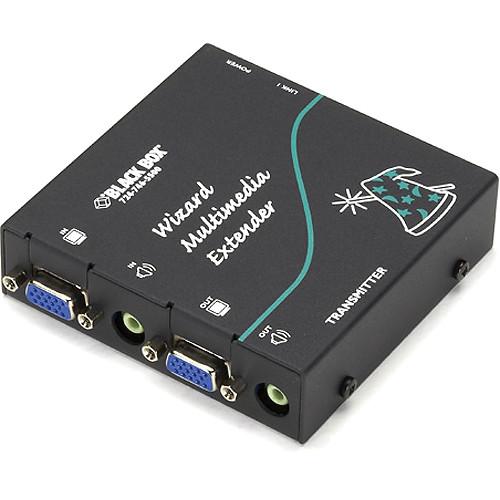

Product description The AVU5001A Wizard Multimedia (VGA/Audio) over CATx Extender Local Unit with Local Access by Black Box is a standalone unit designed to transmit VGA video and stereo audio signals over a CATx cable (CAT5 or higher) and to connect to one of the ports of a compatible Wizard multimedia dual-video/stereo audio remote unit (not included) located at a distance of up to 1000'. The unit supports video resolutions of up to 1280 x 1024 at 984.2' and 1600 x 1280 at 656.1', as well as high-fidelity 16-bit, 44.1kHz stereo audio. The local unit's output connectors can be used either for connecting a local screen and speakers or for cascading other local transmitter units. You can have up to 3 cascade connections between the primary local unit (the one connected to the source PC) and any remote unit. The cascade connections can be all at the transmitter end, all at the receiver end, or a mixture of both. The unit features spike suppression for electrically noisy environments. It is compatible with the AVU5011A and the AVU5111A-R2 Wizard multimedia extender remote receiver units and is suited to digital signage and narrowcasting applications. - Compatible with AVU5011A and AVU5111A-R2 Wizard multimedia extender dual-video/stereo remote units
- Transmits VGA video and stereo audio over a CATx cable to a distance of up to 1000'
- Capable of resolutions of up to 1280 x 1024 at 984.2' and 1600 x 1280 at 656.1'
- Digitally transmits high-fidelity, 16-bit, 44.1 kHz stereo audio
- Local outputs for connecting local screen and speakers or for cascading other transmitter units
- Advanced spike suppression for electrically noisy environments
- Suited to digital signage and narrowcasting applications
- Mount up to 16 units in the optional 3U chassis (AVU5000A)
In the Box Black Box AVU5001A Wizard Multimedia (VGA/Audio) over CATx Extender Local Unit with Local Access Universal Power Supply and 6' Power Cord Set of Self-Adhesive Rubber Feet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box AVU5001A Wizard Multimedia over CATx Extender Local Unit with Local Access in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box AVU5001A Specs | Resolution | 1600 x 1280 at 650' (200 m)
1280 x 1024 at 1000' (305 m) | | Transmission Range | 1000' (300 m) maximum | | Bandwidth | 300 MHz | | Connectors | 1 x 15-pin Sub-D female, VGA video input
1 x 15-pin Sub-D female, VGA video output
1 x 3.5 mm phone jack, stereo audio input
1 x 3.5 mm phone jack, stereo audio output
1 x RJ-45, interconnect
1 x 2.5 mm DC barrel power plug | | Indicators | 1 x LED green, video input
1 x LED red, power | | Power | 100 - 240 VAC, 50 - 60 Hz, autosensing | | Dimensions (H x W x D) | 3.9 x 3.7 x 1" (9.8 x 9.5 x 2.5 cm) | | Weight | 1 lb (0.5 kg) |
