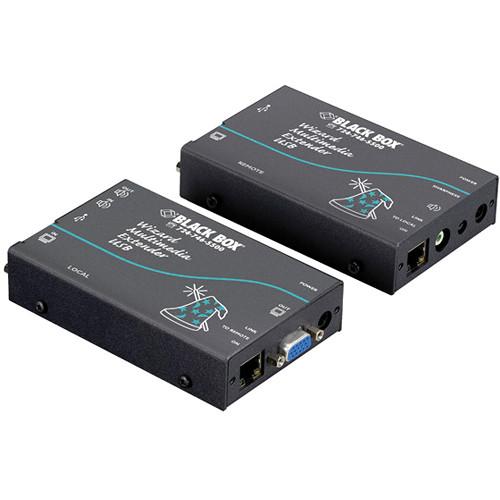

Product description The AVU5020A Wizard Multimedia (VGA/USB/Audio) over CATx Dual-Access Extender Kit by Black Box, comprised of a local transmitter unit and a remote receiver unit, extends VGA, USB, and stereo audio signals up to 164' over a CATx cable (CAT5 or higher), at a video resolution of up to 1920 x 1200. Being a dual-access model, the local unit also features video and audio outputs which enable local control of remote devices. DDC is fully supported. Four full-speed USB 2.0 devices, such as touch screens, speakers, and keyboards can be connected simultaneously to the integrated 4-port USB hub on the remote unit; USB devices can be disconnected and reconnected at any time without causing errors. Stereo 44.1kHz CD-quality audio is transmitted digitally along with the VGA signals over CATx. User-adjustable video compensation enables image fine-tuning. This extender can be used with any operating system and any USB devices. Operation is fully transparent. - Extends VGA video, USB, and stereo audio signals up to 164' over CATx cable
- Capable of 1920 x 1200 resolution
- Dual-access: video and audio outputs on the local unit enable local control of remote devices
- Integrated 4-port USB hub for touch screens, speakers, keyboards, and other USB 2.0 and 1.1 devices
- Digitally transmits 44.1kHz stereo audio
- User-adjustable video compensation for fine-tuning image
In the Box Black Box AVU5020A Wizard Multimedia (VGA/USB/Audio) over CATx Dual-Access Extender Kit Power Supply and Cord 8 x Rubber Feet VGA Cable Audio Cable USB Type A to Type B Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box AVU5020A Wizard Multimedia over CATx Dual-Access Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box AVU5020A Specs | Resolution | 1920 x 1200 maximum | | Transmission Range | 164' (50 m) maximum | | Connectors | Local Unit:
1 x 15-pin Sub-D female, video input
1 x 15-pin Sub-D female, video output
1 x USB type B
2 x 3.5 mm phone jack, audio
1 x RJ-45, interconnect
1 x 2.5 mm DC power
Remote Unit:
1 x 15-pin Sub-D female, video output
4 x USB type A
1 x 3.5 mm phone jack, audio
1 x RJ-45, interconnect
1 x 2.5 mm DC power | | Power | 100 - 240 VAC, 50 - 60 Hz, autosensing | | Dimensions (H x W x D) | Local Unit: 1.7 x 4.7 x 3" (4.4 x 12 x 7.5 cm)
Remote Unit: 1.7 x 4.7 x 3" (4.4 x 12 x 7.5 cm) | | Weight | Local Unit: 1 lb (0.5 kg)
Remote Unit: 1 lb (0.5 kg) | | | | Package Weight | 4.1 lb | | Box Dimensions (LxWxH) | 11.3 x 9.7 x 5.5" |
