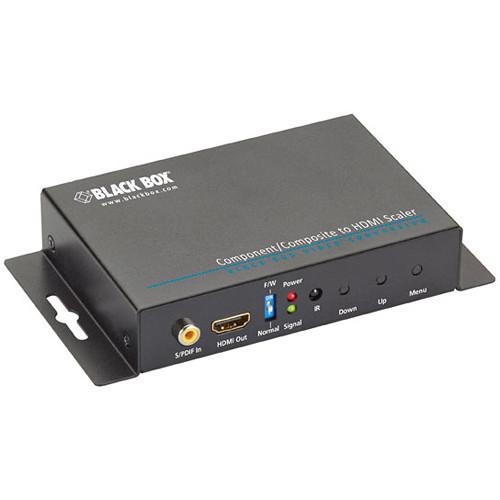

Product description The Component/Composite Signal to HDMI Scaler and Converter from Black Box converts a component or CVBS signal to HDMI compliant format. This converter supports scaling, allowing you to change resolutions to increase quality or improve compatibility. It also supports S/PDIF audio through RCA into HDMI output. With this extra feature, users can combine asynchronous video and audio sources into an HDMI compliant A/V signal. - Power through either wall mount or USB
- Controlled through Mini USB, OSD, or push-buttons
- Supports intelligent color adjustment
- Maximum pixel rate of 165 MHz
- Supports noise reduction and video enhancement features
- Over/under scanning adjustable
- Supports video H/V mirroring
- Supports active video area adjustment
- USB firmware upgradable for expanding compatibility
- Wall mount housing design for easy installation
UPC: 822088079484 In the Box Black Box Component/Composite Signal to HDMI Scaler and Converter 5 VDC, 2A Power Supply Software CD IR Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box Component Composite Signal to HDMI Scaler and Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box AVSC-VIDEO-HDMI Specs | Audio Support | Stereo analog (48 kHz Fs sample rate) | | Input Resolution | 480p / 480i
576p / 576i
720p
1080p / 1080i | | Output Resolution | 720 x 480i @ 60 Hz
720 x 576i @ 50 Hz
720 x 480p @ 60 Hz
720 x 576p @ 50 Hz
1280 x 720p @ 60 Hz
1280 x 720p @ 59 Hz
1280 x 720p @ 50 Hz
1280 x 720p @ 30 Hz
1280 x 720p @ 25 Hz
1920 x 1080i @ 60 Hz
1920 x 1080i @ 59 Hz
1920 x 1080i @ 50 Hz
1920 x 1080p @ 50 Hz
1920 x 1080p @ 30 Hz
1920 x 1080p @ 25 Hz
1920 x 1080p @ 24 Hz
640 x 480p @ 60 Hz
640 x 480p @ 75 Hz
800 x 600p @ 60 Hz
800 x 600p @ 75 Hz
1024 x 768p @ 60 Hz
1024 x 768p @ 75 Hz
1280 x 1024p @ 60 Hz
1280 x 1024p @ 75 Hz
1360 x 768p @ 60 Hz
1366 x 768p @ 60 Hz
1400 x 1050p @ 60 Hz
1600 x 1200p @ 60 Hz
1440 x 900p @ 60 Hz
1440 x 900p @ 75 Hz
1680 x 1050p @ 60 Hz
1680 x 1050p RB
1920 x 1080p RB
1920 x 1200p RB | | Frequency Bandwidth | Input: 74.25 MHz

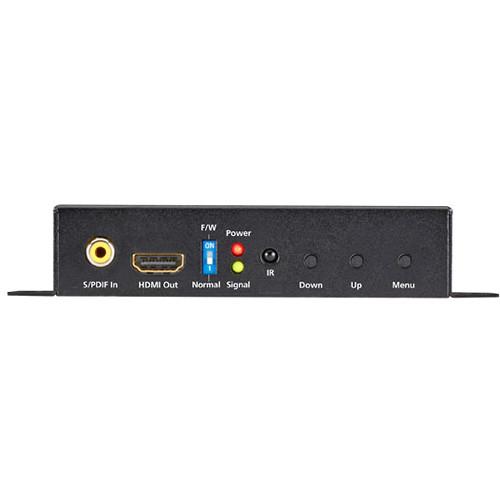

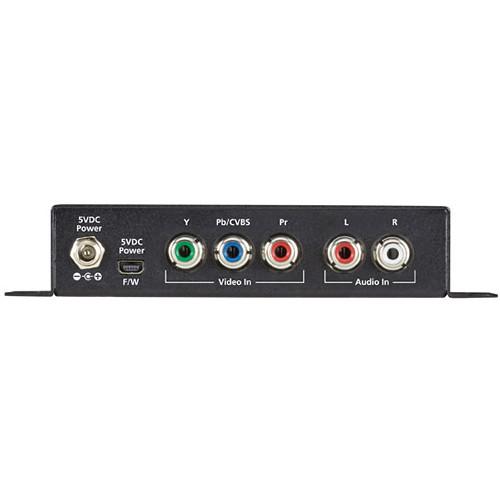

Output: 165 MHz | | Connectors | Input (Component/Composite):
3 x RCA, female
2 x 3.5 mm (L/R) audio
1 x S/PDIF audio
Output:
1 x HDMI
Control and Power:
1 x Mini USB
1 x Screw-lock barrel power connector | | Indicators | 1 x Red LED (power)
1 x Green LED (video signal) | | User Controls | 3 x Push-button | | Enclosure | Metal wall mounting case with screws | | ESD Protection | Human Body Model:
±19 kV (air-gap discharge)
±12 kV (contact discharge)
Core Chipset: ±2 kV | | Firmware Updates | Via USB Port | | Power | Source: Wall mount-style power supply (included), Mini USB (not included)
Input: 100 to 240 VAC, 50 / 60 Hz, 1.5 A
Output: 5 VDC, 2 A Barrel plug | | Maximum Power Consumption | 5 W | | Approvals | CE, FCC, RoHS2, WEEE, UL | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 to 90%, non-condensing | | Maximum Altitude | 10,000 ft (3,048 m) | | Dimensions | 1.1 x 3.6 x 3.3" (3.0 x 9.2 x 8.3 cm) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 7.9 x 5.5 x 3.0" |
