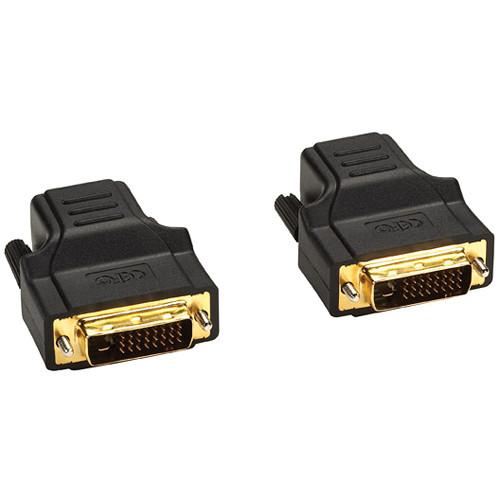

User Manual for Black Box DVI-D Digital Video Extender Kit Click to enlarge the picture
Contents of the user manual for the Black Box DVI-D Digital Video Extender
- Product category: KVM Extenders Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box KVM Extenders
|
User manual for the Black Box DVI-D Digital Video Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description The Black Box DVI-D Digital Video Extender Kit is a compact and affordable single-link transmitter and receiver set. It extends DVI signals in up to 1080i, 720p, or 1280 x 1024 for up to 100 ft over a single CAT5e/6 cable (not included), and 480p or 1024 x 768 signals for up to 130 ft.
This set is ideal for carrying video from a computer to a DVI display/device. No power supply or setup is required. LED indicators on the RJ-45 side confirm power status and active signal status. In the Box Black Box DVI-D Digital Video Extender Kit User Manual 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box DVI-D Digital Video Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box AC1035A-R2 Specs | | | Ports | Transmitter:
1 x RJ45 Ethernet (Output)
1 x DVI-D 1.1 (Input)
Receiver:
1 x DVI-D (Output)
1 x RJ45 Ethernet (Input) | | Supported Resolutions | 1280 x 1024 | | Maximum Transmission Distance | 130' / 40 m | | Transmission Method | CAT5e/CAT6 Cable | | | | Certifications | CE, FCC, RoHS, as per Manufacturer | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 7.0 x 4.5 x 1.5" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 90 owners. Add your rating and experience with the product.
