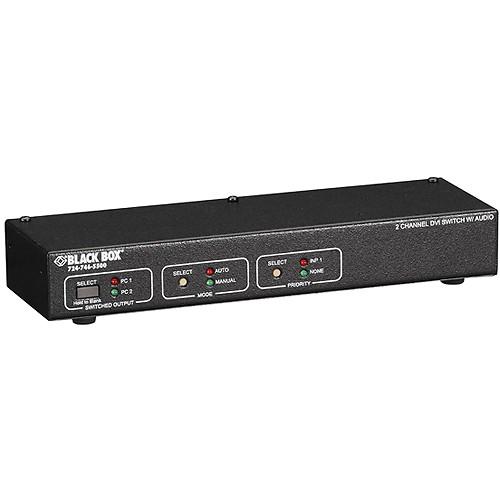

Product description The 2-channel DVI Switch with Audio and Serial Control from Black Box allows up to 2 single-link DVI-D sources to be connected to a single display. The switcher supports VESA computer resolutions up to 1600 x 1280 and HDTV resolutions up to 1920 x 1080 (Full HD). There is also a dedicated stereo analog audio input on a 3.5mm mini jack for each video input and a single 3.5mm audio output paired with the DVI output. As this devices uses DVD-D it is only suitable for digital devices, and cannot be used with legacy VGA hardware unless an additional converter is employed. It supports HDCP pass-through so you will be able to show copy-protected content, such as Blu-ray DVDs. - Control locally with front panel buttons or remotely using RS-232 and third-party automation systems
- Inputs accept cable runs of up to 65' meanwhile the output supports runs of up to 50', depending on the quality of the cable and how much RF interference is present
- Manual or automatic detection switching possible
- Recalls previous settings upon power-up
- Fully shielded metal enclosure
In the Box Black Box DVI Switch with Audio and Serial Control (2-Channel) Power Supply DVI Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box DVI Switch with Audio and Serial Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box AC1032A-2A Specs | | | Inputs | 2 x DVI-D single-link (digital only)
2 x Stereo analog audio on 3.5 mm mini jack (line level) | | Outputs | 1 x DVD-D (digital only) single-link
1 x Stereo analog audio on 3.5 mm mini jack (line level) | | Maximum Resolution | Computer: 1600 x 1200
HDTV: 1920 x 1080 | | HDCP Compliant | Yes | | Maximum Cable Length | Input: Up to 65' / 19.8 m
Output: Up to: 50' / 15.2 m | | Control | 1 x RS-232 on 9-pin D-Sub female | | | | Indicators | LEDs per port | | Power Requirements | Power Supply: 100 to 240 VAC, 50 to 60 Hz
Device: 6 VDC | | Dimensions (H x W x D) | 1.3 x 8.4 x 2.6" / 3.3 x 21.3 x 6.6 cm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 10.4 x 7.7 x 2.7" |
