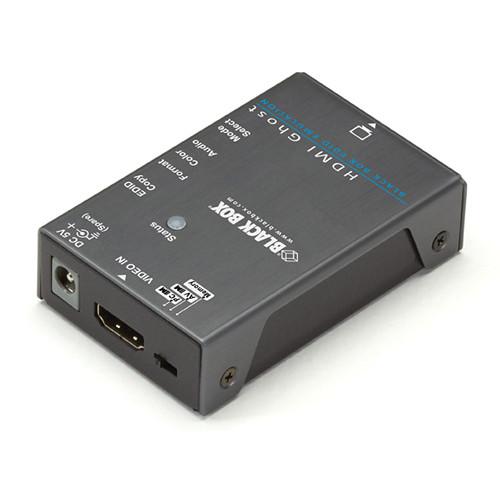

Product description The HDMI EDID Ghost from Black Box optimizes video output for any display. It learns Extended Display Identification Data (EDID) from a display and ensures that your video source conforms to optimal resolution settings. The Ghost function saves the EDID of your displays and enables the source to boot with the correct settings. The unique audio inventory feature provides 5.1 and 7.1 channel audio EDID learning. A built-in rotary switch allows you to manually select and compare video resolution. - Displays either the default or the copied EDID on connected displays
- EDID learning functionality prevents computers from deactivating ports
- Audio Inventory feature provides 5.1 channel and 7.1 channel audio EDID learning; designed for home theater applications
- A built-in rotary switch enables you to manually select and compare video resolution
- Works in three separate modes that includes PC, AV, and memory mode
- Records and stores up to 15 different sets of EDID
- EDID optimizes video card output for the capabilities of the end display. This device enables the copying, emulating, cloning, and learning of EDID from a display
- Works with devices, such as Blu-ray DVD players, game consoles, HD set-top boxes, LCD displays, and digital TVs
- To match the display, go into the video settings table and change the video output in PC
In the Box Black Box HDMI EDID Ghost USB Power Cable Foot Pad Set Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box HDMI EDID Ghost in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

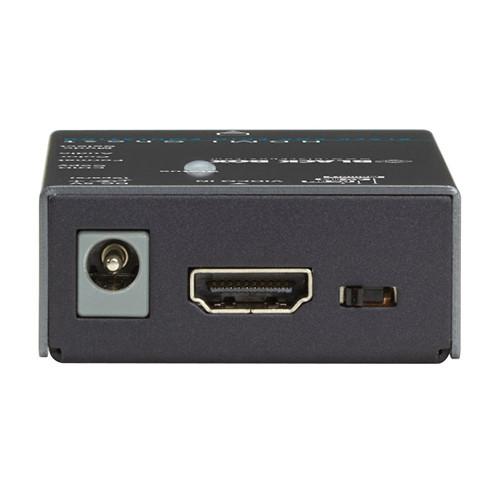

Technical parametersBlack Box VG-HDMI Specs | Connectors | Input: 1 x HDMI female

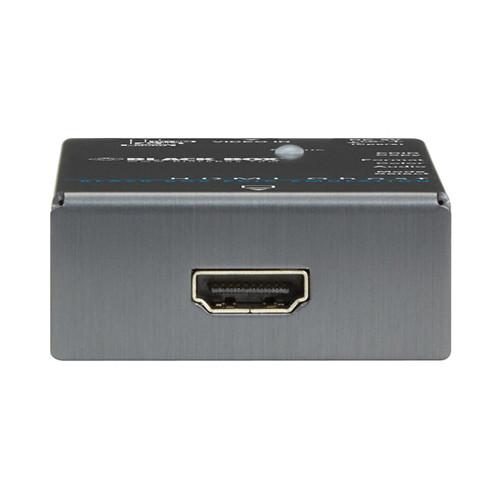

Output: 1 x HDMI female
Power: 1 x 5 VDC barrel connector | | Housing | Metal | | Memory | 15 preset settings | | Resolution | Full HD: 1920 x 1080, 2048 x 1152 | | LED Indicators | 1 x multiple-color status LED | | Power | 5 VDC; may also receive power from the video source | | Approvals | CE, RoHS | | User Controls | 1 x Push Button: EDID Copy

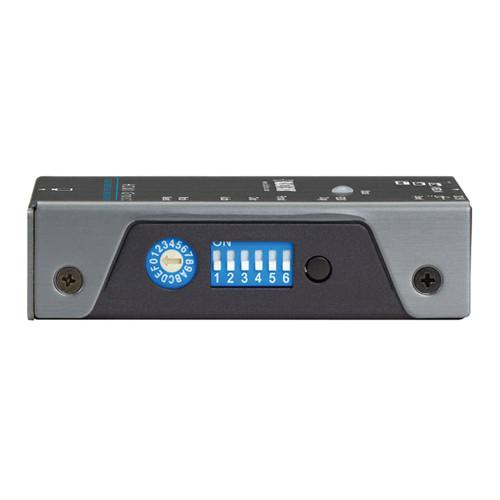

1 x Rotary Switch: 16 x default settings and 15 x sets of inventory
1 x Slide Switch: PC/AV/Memory mode selection
6 x 2-Position DIP Switch: Positions 1 and 2: Audio
Positions 3 and 4: Color
Positions 5 and 6: Format | | Dimensions (W x H x D) | 2.0 x 0.9 x 3.2" (5.0 x 2.2 x 8.1 cm) | | Weight | 4.8 oz (136.0 g) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 6.142 x 4.016 x 1.969" |
