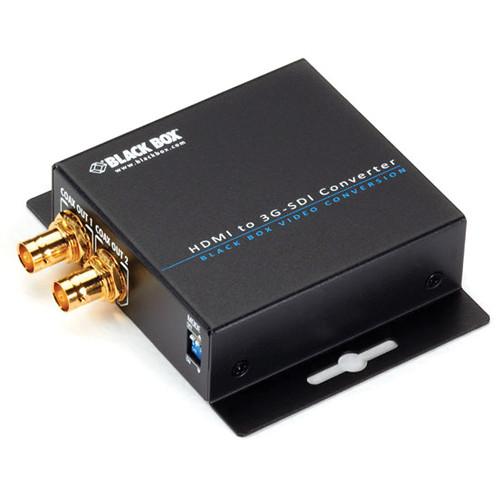

Product description The HDMI to 3G-SDI/HD-SDI Converter from Black Box allows you to convert an HDMI signal so that it conforms to SDI broadcast standards. It will accept most non-HDCP-encrypted SD and HD formats up to 1080p60, outputting via SD-, HD-, or 3G-SDI as dictated by the incoming resolution and frequency. This device finds application in professional video environments such as TV studios and live switching setups that need to incorporate feeds from consumer HDMI sources, such as camcorders, into their broadcast. It can also be used in AV installations as a way of overcoming the distance limitations of HDMI. By combining the HDMI to 3G-SDI/HD-SDI Converter with an SDI to HDMI converter (such as VSC-SDI-HDMI) you can use the pair to bridge two pieces of HDMI equipment.
The converter passes up to eight-channels of HDMI-embedded audio, including 7.1-channel and 5.1-channel formats and Dolby TrueHD audio. It features dual mirrored SDI outputs so that you can connect to two downstream devices without requiring a separate distribution amplifier. - HDMI input support HDMI Deep Color
- EDID learning for optimal source-to-screen communications
- Configurable using DIP switches
- Wallmountable for space-saving installation.
In the Box Black Box HDMI to 3G-SDI/HD-SDI Converter Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box HDMI to 3G-SDI HD-SDI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

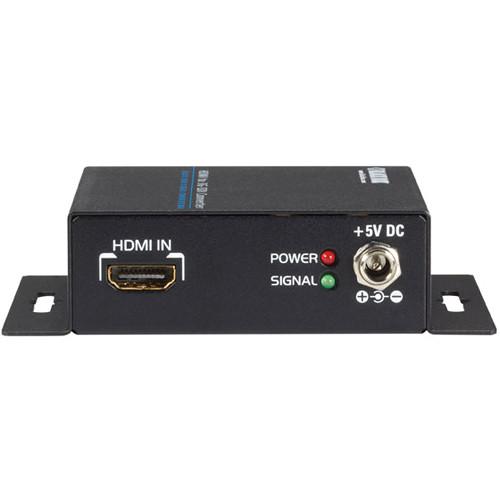

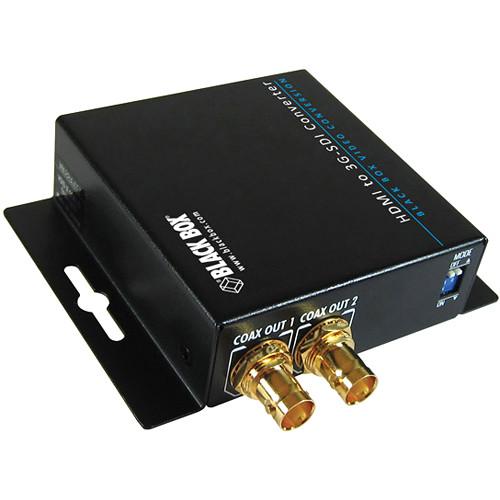

Technical parametersBlack Box VSC-HDMI-SDI Specs | | | Input | 1 x HDMI | | Output | 2 x 3G/HD/SD-SDI on BNC connector
Impedance: 75 ohm Bandwidth: Up to 2.97 Gb/s and 2.975/1.001 Gb/s | | Supported Standards | SDI Outputs: 3G-SDI, HD-SDI, SD-SDI | | Supported Resolutions | 3G-SDI:
1080p (4:2:2): 50, 59.94, and 60 Hz
HD-SDI:
1080p: 23.98, 24, 25, 29.97, and 30 Hz
1080i: 50, 59.94, and 60 Hz
720p: 50, 59.94, and 60 Hz
SD-SDI: NTSC (59.94 Hz), PAL (50 Hz) | | | | Controls | 2 x External DIP switches for EDID | | Power Requirements | Device: 5 VDC, 4 amps
Power Supply: 100 to 240 VAC, 50 to 60 Hz; 0.8 A | | Power Consumption | Maximum: 3 W | | Dimensions (H x W x D) | 1.2 x 3.1 x 3.3" / 0.5 x 7.6 x 8.4 cm | | Weight | 3.7 lb / 1.7 kg | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 7.9 x 5.6 x 3.1" |
