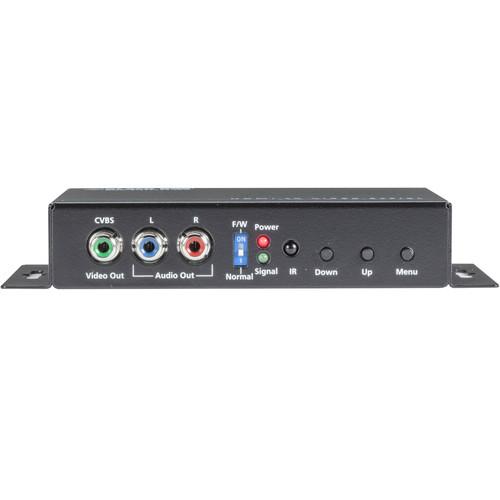

User Manual for Black Box HDMI to Video Signal Scaler and Converter Click to enlarge the picture
Contents of the user manual for the Black Box HDMI to Video Signal
- Product category: Signal Converters Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box Signal Converters
|
User manual for the Black Box HDMI to Video Signal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description The HDMI to Video Signal Scaler and Converter from Black Box converts digital HDMI to component/CVBS signal with either digital audio (S/PDIF) or analog stereo audio. This converter supports scaling, which allows you to change resolutions to increase quality or improve compatibility. With this module, HDMI based devices such as Blu-ray disc players, gaming consoles, DVD players, camcorders, or set-top boxes can connect to your PC LCD monitors and speakers. The device also enables users to connect full digital video and audio to a CVBS monitor and S/PDIF-equipped audio receiver and amplifier, for maximum compatibility with home theater devices. - Can be controlled via an IR remote control
- Can be controlled via mini-USB
- Maximum input pixel rate of 165 MHz
- Supports noise reduction and video enhancement features
- Over/under scanning adjustable
- Supports video H/V mirroring
- Supports active video area adjustment
- USB firmware upgradable for expanding compatibility
- Wall mount housing design for easy installation
In the Box Black Box HDMI to Video Signal Scaler and Converter 5 VDC, 2A Power Supply IR Remote Control Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box HDMI to Video Signal Scaler and Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box AVSC-HDMI-VIDEO Specs | Audio Support | Stereo PCM (48 kHz only) | | Maximum Resolution | 1080p, 1920 x 1200 | | Color | Maximum: 4:2:2 | | Frequency Bandwidth | Output Video: 165 MHz
Input Video: 74.25 MHz | | User Controls | 1 x DIP switch for firmware update
3 x Push buttons (Down, Up, Menu/Enter) | | Connectors | Input:
1 x HDMI type A (19-pin female)
Output:
2 x 3.5mm stereo (L, R)
3 x RCA (YPbPr)
1 x RCA (CVBS)
1 x RCA (S/PDIF)
Firmware Update and Control:
1 x Mini USB
Power:
1 x Interlocking power jack | | Indicators | 1 x Red LED (power)
1 x Green LED (video signal) | | Enclosure | Metal wall mounting case with screws | | ESD Protection | Human Body Model:
±19 kV (air-gap discharge)
±12 kV (contact discharge)
Core Chipset: ±2 kV | | Firmware Updates | Via USB Port | | IR Sensor | Receives IR commands from the IR remote | | Power | Supply: 5 VDC, 2 A
Consumption: 5 W (maximum) | | Operating Temperature & Humidity | 32 to 104° F (0 to 40° C)
Relative Humidity: 20-90%, non-condensing | | Storage Temperature | -4 to +140° F (-20 to +60° C) | | Dimensions | 6.9 x 5.3 x 5" (17.5 x 13.5 x 12.7 cm) | | Weight | 9.5 oz (270 g) | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 8.1 x 5.6 x 3.0" |
