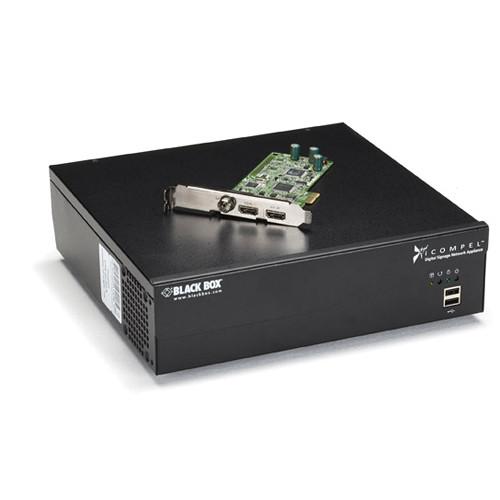

Product description The Black Box iCOMPEL P Series 2U Digital Signage Subscriber with HD Video Card features 500GB of internal HDD storage capacity and an Intel Core I3 processor that is powerful enough to handle professional-quality Flash animation and video-intensive digital signage applications when paired with an iCOMPEL Publisher unit. Software updates are free and there's no annual license fees to worry about - resulting in a lower overall cost of ownership. The iCOMPEL P Series comes with an HD video card as well, which facilitates pure digital signal transmission via its HDMI or DVI-I output. There's also a DisplayPort video output and an eSATA interface for connecting an external eSATA-equipped storage device. For audio signals, this model features multiple analog audio outputs as well as a digital TOSLINK optical jack. The iCOMPEL P Series is equipped with six USB 2.0 ports - two of which are conveniently located on the front panel - and two USB 3.0 ports. Whether you prefer to transfer media and data via USB or eSATA, the iCOMPEL supports a wide variety of audio, video, photo, data, animation, and text file formats, so you'll be able to easily create an exciting, attention-grabbing audiovisual experience with unique signage layouts. Wired LAN connectivity is another highlight of this model. Once connected via RJ-45 Gigabit Ethernet, you can quickly integrate the iCOMPEL into your existing network and manage it over a Web browser. You'll even be able to send media to colleagues across the planet. To ensure your media and data stay secure, Black Box has equipped the iCOMPEL with a built-in firewall that keeps access limited to authorized users only. Plus, there's no need to install any third-party software or virus protection because the iCOMPEL supports HTTP and HTTPS security protocols. It supports the LDAP authentication protocol and VPN capabilities for secure remote access as well. The iCOMPEL's Intel Core I3 processor is able to handle professional Flash content at greater than 20 fps and video content at greater than 30 fps. You can create stimulating, multi-screen layouts that contain multiple display zones. Every zone can have its own continuous-loop playlist as well, so you can add several additional media files and have them run on a preset schedule - meaning you can play different layouts at different times. Plus, built-in RSS subscriber features let you automatically collect and display text crawl feeds from the Internet, which makes it possible for your layouts to contain up-to-the-minute streaming news, weather reports, stock info, etc. It's also worth mentioning that the iCOMPEL supports up to four video zones, so you can run up to four different videos simultaneously. You can take advantage of unlimited text, still image, and audio zones - as well as up to 15 HTML zones. The iCOMPEL provides digital video output resolution up to 2560 x 1600 and it can handle Full HD 1920 x 1080p digital media. Other features include access to Black Box's intuitive graphical user interface and preinstalled drag-and-drop software tools that you can use to quickly and easily change layouts and alter graphical effects. Plus, since the iCOMPEL is built to play SMB signage, it will integrate seamlessly into your existing digital signage setup, which should yield less IT headaches and security problems. To further aid in a seamless installation experience, Black Box offers an optional wall mounting kit as well as an optional 2U rackmount kit (both sold separately) so you can keep everything - from software to hardware - neat and organized.
This Black Box iCOMPEL Subscriber must be connected to an iCOMPEL Publisher device for content delivery. The iCOMPEL Publisher sends media over your network to the iCOMPEL Subscriber for displaying your digital signage content, even from remote locations. The iCOMPEL Subscriber connects directly to your monitor, and one unit is required for each monitor in your digital signage network. - Appliance-based solution for high-performance applications that sets up fast with all software preinstalled
- Black Box's powerful, high-end subscriber for playing a variety of SMB signage content
- Integrated HD video card facilitates pure HDMI digital video transmission from a set-top box or other pure digital source
- For convenience, this digital signage subscriber is controllable via a standard Web browser connection
- Intel Core I3 processor is powerful enough to handle optimized Flash content at >20 fps and video content at >30 fps
- Gigabit Ethernet allows easy integration into your digital signage network system with other iCOMPEL appliances
- Free updates and no ongoing subscription or licensing fees for a lower overall cost of ownership
- Easy to scale and you can use the standalone with one screen or across a network to show content on multiple screens
- Screen content can be updated locally and you can instantly add text messages or alerts for an audience
- Supports HD digital media up to Full HD 1920 x 1080p and a video output resolution 2560 x 1600
- Equipped with HDMI, DVI-I, and DisplayPort video outputs as well as multiple USB 3.0 and USB 2.0 ports
- Simultaneously play up to four videos on a single signage screen
- With up to four video zones, you can create interesting layouts with a mix of different videos displayed side-by-side
- Supports unlimited zones for text, still images, and audio (as well as up to 15 zones for HTML)
- Display layouts with optimized Flash content alongside video, static images, HTML, XML, and RSS Web content
- Easily change layouts and alter graphical effects with preinstalled drag-and-drop software tools
- Set up multizone layouts with each zone playing different media from its own playlist
- Simple to stream dynamic RSS feeds from the Internet (supports XML)
- Rotate screen images for either portrait or landscape orientation
- Secure Linux based appliance with built-in firewall
- GPIO external device input capabilities (for motion detectors, sensors, etc.)
- Professional iCOMPEL P Series makes it easy to gather, distribute, and manage you digital signage content
- Supports wall mounting when paired with the optional ICOMP-WALL Wallmount Kit (sold separately)
- Supports 2U rack mounting when paired with the optional ICOMP-RACK Rackmount Ears (sold separately)
UPC: 822088061441 In the Box Black Box iCOMPEL P Series 2U Digital Signage Subscriber with HD Video Card HD Video Card Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box iCOMPEL P Series 2U Digital Signage Subscriber with HD Video Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box ICPS-2U-SU-N-H Specs | Processor | Intel Core I3 | | Memory | 4 GB (RAM) | | Storage | 500 GB (HDD) | | Video Output Resolution | Digital: Up to 2560 x 1600
HD: Up to Full HD 1920 x 1080p | | Connectivity | HDMI x 2 (female)
DVI-I x 1 (female)
DisplayPort x 1 (female)
1/8" (3.5 mm) audio mini-jack x 5 (female)
TOSLINK optical audio interface x 1 (female)
USB 2.0 (type-A / rear-panel) ports x 4 (female)
USB 2.0 (type-A / front-panel) ports x 2 (female)
USB 3.0 (type-A) ports x 2 (female)
Gigabit Ethernet (10/100/1000 Mbps) RJ-45 x 1 (female)
eSATA external storage interface x 1 (female) | | Video | SD Video (Encoded up to 10 MB, except where indicated)
MPEG2 (MP at ML, POPAI Standard 59)
MPEG2 (DVB-T)
MPEG4 (OpenDivX, POPAI Standard E7)
MPEG4 (H.264 AVC, POPAI Standard S11)
MPEG4 (DVB-T H.264)
Microsoft MPEG4 (V1, V2, V3)
WMV V9 - VC1 also up to 20 Mbps (POPAI Standard E4)
Apple QuickTime (SMC, RPZA Codecs)
HD Video (up to 1920 x 1080p Resolution)
MPEG2 (MP at HL, POPAI Standards S10, S12, E6)
MPEG2 (DVB-T)
MPEG4 (OpenDivX)
MPEG4 (H.264 AVC, POPAI Standards S12, E8)
MPEG4 (DVB-T H.264)
Microsoft MPEG4 (V1, V2, V3)
WMV 9 VC1 (POPAI Standard E5)
Apple QuickTime (SMC, RPZA Codecs) | | Animation | HTML/JavaScript/SVG (as per WebKit)
Animated GIF (within an HTML file)
Flash (.SWF) v11 | | Data | Microsoft PowerPoint 2010 (save as WMV)
Apple Keynote (save as MOV) | | Still Image | TIFF
JPEG/JPG (POPAI Standard S1)
GIF
BMP
PNG (POPAI Standards E1, E2, E3) | | Audio | WAV
MP3 (POPAI Standard S5)
WMA (V1, V2, V3)
AC3
AAC | | Text | RSS
Formatted text
European languages (and Greek, Russian, Chinese, Japanese, Korean, Arabic in OpenType)
TrueType fonts | | Media Zones Supported | Unlimited text zones (per layout)
Unlimited still image zones (per layout)
Unlimited audio zones (per layout)
Two video zones (per layout)
Transparent zone capable | | Input Voltage | 100 - 240 VAC (50/60 Hz) | | Compliances | FCC (subscriber / power supply)
RoHS (subscriber / power supply)
WEEE (subscriber / power supply)
UL (power supply)
CE (power supply)
CSA (power supply) | | Dimensions (WxHxD) | 11 x 3 x 10.5" (279 x 76 x 267 mm) | | Weight | 9.2 lb (4.2 kg) |
