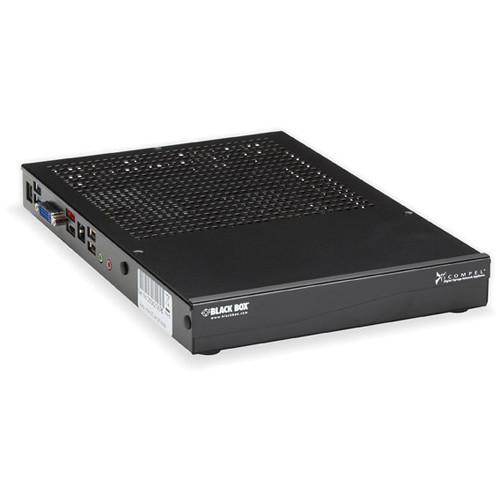

User Manual for Black Box iCOMPEL P Series VESA Digital Signage Subscriber Click to enlarge the picture
Contents of the user manual for the Black Box iCOMPEL P Series VESA
- Product category: Digital Signage Players Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box Digital Signage Players
|
User manual for the Black Box iCOMPEL P Series VESA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description The Black Box iCOMPEL P Series VESA Digital Signage Subscriber features 40GB of internal SSD storage capacity and an Intel Core I3 processor that is powerful enough to handle professional-quality Flash animation and video-intensive digital signage applications when paired with an iCOMPEL Publisher unit. It's ready-to-go right out-of-the-box with all necessary software already preinstalled. Software updates are free and there's no annual license fees to worry about - resulting in a lower overall coFst of ownership. The iCOMPEL P Series features HDMI and DVI-I outputs. There's also an eSATA interface for connecting an external eSATA-equipped storage device. The iCOMPEL P Series is equipped with two USB 2.0 ports as well as two USB 3.0 ports and two USB sleep-and-charge ports. Whether you prefer to transfer media and data via USB or eSATA, the iCOMPEL supports a wide variety of audio, video, photo, data, animation, and text file formats, so you'll be able to easily create an exciting, attention-grabbing audiovisual experience with unique signage layouts. Wired LAN and wireless Wi-Fi connectivity are another highlight of this model. Once connected, you can quickly integrate the iCOMPEL into your existing network and manage it over a Web browser. To ensure your media and data stay secure, Black Box has equipped the iCOMPEL with a built-in firewall that keeps access limited to authorized users only. Plus, there's no need to install any third-party software or virus protection because the iCOMPEL supports HTTP and HTTPS security protocols. It supports the LDAP authentication protocol and VPN capabilities for secure remote access as well. The iCOMPEL's Intel Core I3 processor is able to handle professional Flash content at greater than 20 fps and video content at greater than 30 fps. You can create stimulating, multi-screen layouts that contain multiple display zones. Every zone can have its own continuous-loop playlist as well, so you can add several additional media files and have them run on a preset schedule - meaning you can play different layouts at different times. Plus, it's simple to stream RSS feeds from the Internet in order to display text crawl feeds so your layouts contain up-to-the-minute streaming news, weather reports, stock info, etc. It's also worth mentioning that the iCOMPEL supports up to four video zones, so you can run up to four different videos simultaneously. You can take advantage of unlimited text, still image, and audio zones - as well as up to 15 HTML zones.
This Black Box iCOMPEL Subscriber must be connected to an iCOMPEL Publisher device for content delivery. The iCOMPEL Publisher sends media over your network to the iCOMPEL Subscriber for displaying your digital signage content, even from remote locations. The iCOMPEL Subscriber connects directly to your monitor, and one unit is required for each monitor in your digital signage network. - Appliance-based solution for high-performance applications that sets up fast with all software preinstalled
- Black Box's powerful, high-end subscriber for playing a variety of SMB signage content over network
- For convenience, this digital signage subscriber is controllable via a standard Web browser connection
- Intel Core I3 processor is powerful enough to handle optimized Flash content at >20 fps and video content at >30 fps
- Gigabit Ethernet allows easy integration into your digital signage network system with other iCOMPEL appliances
- Free updates and no ongoing subscription or licensing fees for a lower overall cost of ownership
- Easy to scale and you can use the standalone with one screen or across a network to show content on multiple screens
- Screen content can be updated locally and you can instantly add text messages or alerts for an audience
- Supports HD digital media up to Full HD 1920 x 1080p
- Equipped with HDMI and DVI-I video outputs as well as multiple USB 3.0 and USB 2.0 ports
- Simultaneously show up to four videos on a single signage screen
- With up to four video zones, you can create interesting layouts with a mix of different videos displayed side-by-side
- Supports unlimited zones for text, still images, and audio (as well as up to 15 zones for HTML)
- Display layouts with optimized Flash content alongside video, static images, HTML, XML, and RSS Web content
- Easily change layouts and alter graphical effects with preinstalled drag-and-drop software tools
- Set up multizone layouts with each zone playing different media from its own playlist
- Simple to stream dynamic RSS feeds from the Internet (supports XML)
- Rotate screen images for either portrait or landscape orientation
- Secure Linux based appliance with built-in firewall
- GPIO external device input capabilities (for motion detectors, sensors, etc.)
- Professional iCOMPEL P Series makes it easy to gather, distribute, and manage you digital signage content
- Small form factor with hardware for VESA mounting on the back of a display
UPC: 822088061496 In the Box Black Box iCOMPEL P Series VESA Digital Signage Subscriber Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box iCOMPEL P Series VESA Digital Signage Subscriber in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box ICPS-VE-SU-N Specs Processor | Intel Core I3 | Memory | 4 GB (RAM) | Storage | 40 GB (SSD) | Video Output Resolution | Full HD 1920 x 1080p (digital) | Connectivity | HDMI x 1 (female) DVI-I x 1 (female) 1/8" (3.5 mm) audio mini-jack x 1 (female) USB 2.0 (type-A) ports x 2 (female) USB 3.0 (type-A) ports x 2 USB (type-A) sleep-and-charge ports x 2 (female) Gigabit Ethernet (10/100/1000 Mbps) RJ-45 x 1 (female) eSATA external storage interface x 1 (female) | Video | SD Video (Encoded up to 10 MB, except where indicated) MPEG2 (MP at ML, POPAI Standard 59) MPEG2 (DVB-T) MPEG4 (OpenDivX, POPAI Standard E7) MPEG4 (H.264 AVC, POPAI Standard S11) MPEG4 (DVB-T H.264) Microsoft MPEG4 (V1, V2, V3) WMV V9 - VC1 also up to 20 Mbps (POPAI Standard E4) Apple QuickTime (SMC, RPZA Codecs)
HD Video (up to 1920 x 1080p Resolution) MPEG2 (MP at HL, POPAI Standards S10, S12, E6) MPEG2 (DVB-T) MPEG4 (OpenDivX) MPEG4 (H.264 AVC, POPAI Standards S12, E8) MPEG4 (DVB-T H.264) Microsoft MPEG4 (V1, V2, V3) WMV 9 VC1 (POPAI Standard E5) Apple QuickTime (SMC, RPZA Codecs) | Animation | HTML/JavaScript/SVG (as per WebKit) Animated GIF (within an HTML file) Flash (.SWF) v11 | Data | Microsoft PowerPoint 2010 (save as WMV) Apple Keynote (save as MOV) | Still Image | TIFF JPEG/JPG (POPAI Standard S1) GIF BMP PNG (POPAI Standards E1, E2, E3) | Audio | WAV MP3 (POPAI Standard S5) WMA (V1, V2, V3) AC3 AAC | Text | RSS Formatted text European languages (and Greek, Russian, Chinese, Japanese, Korean, Arabic in OpenType) TrueType fonts | Media Zones Supported | Unlimited text zones (per layout) Unlimited still image zones (per layout) Unlimited audio zones (per layout) Four video zones (per layout) Transparent zone capable | Input Voltage | 90 - 250 VAC (50/60 Hz) | Compliances | FCC (subscriber / power supply) RoHS (subscriber / power supply) WEEE (subscriber / power supply) UL (power supply) CE (power supply) CSA (power supply) | Dimensions (WxHxD) | 11 x 1.1 x 7.3" (280 x 29 x 186 mm) | Weight | 4 lb (1.8 kg) | | Package Weight | 6.0 lb | Box Dimensions (LxWxH) | 16.8 x 14.4 x 3.3" |
