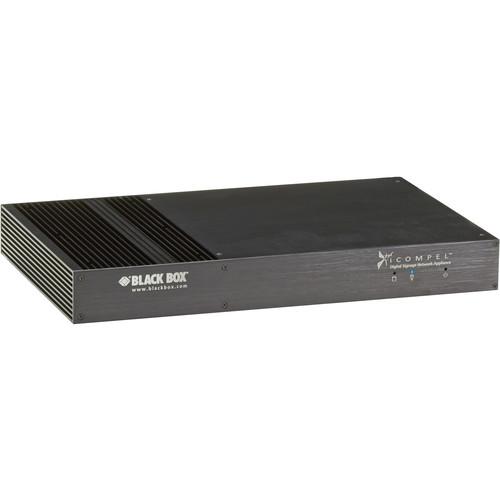

User Manual for Black Box iCOMPEL Q Series VESA Digital Signage Subscriber Click to enlarge the picture
Contents of the user manual for the Black Box iCOMPEL Q Series VESA
- Product category: Digital Signage Players Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box Digital Signage Players
|
User manual for the Black Box iCOMPEL Q Series VESA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description The Black Box iCOMPEL Q Series VESA Digital Signage Subscriber features 60GB of SSD system storage and it is designed for a variety of digital signage applications including small business and industrial applications when paired with an iCOMPEL Publisher unit. Software updates are free and there's also no annual license fees to worry about - resulting in a lower overall cost of ownership. The iCOMPEL subscriber has a fanless, sealed core, which keeps airborne particles at bay. This feature allows the system to thrive in environments where silence is required, such as museums, libraries, theaters, etc. The iCOMPEL is designed to integrate seamlessly into your existing digital signage setup, which means you'll experience less IT and security problems. Plus, the subscriber supports a wide variety of audio, video, photo, data, animation, and text file formats so you'll be able to easily create an exciting, attention-grabbing audiovisual experience. The iCOMPEL supports wired Gigabit Ethernet LAN connectivity so you can easily integrate the subscriber into your existing network and manage it over a Web browser. You'll even be able to send media to colleagues across the planet. Setup is easy and a built-in firewall keeps access limited to authorized users only. Plus, there's no need to install any third-party software or virus protection because the iCOMPEL uses HTTP and HTTPS security protocols. It also supports the LDAP authentication protocol and VPN capabilities for secure remote access. It comes preinstalled with intuitive software layout tools as well. For instance, there are several free pre-designed media layout templates, which make it possible for even beginners to display a professional-looking design in a matter of minutes. You can also create your own layouts thanks to the preinstalled suite of adjustment tools. These include resizing, repositioning, zone layering, and template adjusting tools. manually set pixel or percentage measurements as well, which helps users create a pixel-accurate alignment. It allows users to lock movie zones to a desired aspect ratio (16:9/5:4/4:3) as well. Other useful iCOMPEL features include USB 3.0 connectivity, an HDMI output, support for up to 15 HTML zones, and support for unlimited text/image zones. You can create multiple screen layouts containing multiple display zones. Plus, every zone can have its own continuous-loop playlist where you can add several additional media files that will run on a preset schedule. You can play different layouts at different times. You can also automatically collect and display text crawl feeds from the Internet thanks to the iCOMPEL's RSS subscriber features. This makes it possible for your layouts to contain up-to-the-minute streaming news, weather reports, stock info, etc.
This Black Box iCOMPEL Subscriber must be connected to an iCOMPEL Publisher device for content delivery. The iCOMPEL Publisher sends media over your network to the iCOMPEL Subscriber for displaying your digital signage content, even from remote locations. The iCOMPEL Subscriber connects directly to your monitor, and one unit is required for each monitor in your digital signage network. - An appliance-based solution that sets up fast with all software preinstalled
- A high-performing system that's designed for small business signage
- Ideal for challenging environments with airborne contaminants
- Fanless design means silent operation for environments where noise is a concern
- Integrates into your digital signage system with other iCOMPEL appliances
- Free updates and no ongoing subscription or licensing fees for lower cost of ownership
- Appliance is sealed, fanless, and quiet
- Controllable via a standard Web browser connection
- Includes free, professionally-designed screen layouts
- Use across a network to show content
- Screen content can be updated locally and you can instantly add text messages or alerts for an audience
- Supports HD digital media and a video output up to 1920 x 1080 Full HD resolution
- Equipped with HDMI and DisplayPort video outputs
- Plays up to two simultaneous videos, which is ideal for showing different videos on a screen
- Also supports unlimited zones for text and images as well as up to 15 zones for HTML
- Easy to change and alter layouts and graphical effects with drag-and-drop tools
- Set up multizone layouts with each zone playing different media from its own playlist
- Simple to stream dynamic RSS feeds from the Internet (supports XML)
- Rotate screen images for either portrait or landscape orientation
- Secure Linux based appliance with built-in firewall
- GPIO external device input capabilities (for motion detectors, sensors, etc.)
- Small form factor with SSD drive (VESA mounts on back of screen)
- Aluminum heat sink and high-capacity heat pipes for rapid heat transfer/dissipation
In the Box Black Box iCOMPEL Q Series VESA Digital Signage Subscriber Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box iCOMPEL Q Series VESA Digital Signage Subscriber in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box ICQS-VE-SU-N Specs | Processor | Intel Celeron G620T | | Memory | 4 GB (RAM) | | Storage | 60 GB (SSD) | | Video Output Resolution | Full HD 1920 x 1080p (digital) | | Connectivity | HDMI x 1 (female)
DisplayPort x 1 (female)
1/8" (3.5 mm) audio mini-jack x 1 (female)
USB 3.0 (type-A) ports x 4 (female)
Gigabit Ethernet (10/100/1000 Mbps) RJ-45 x 2 (female) | | Wireless Connectivity | No | | Video | SD Video (Encoded up to 10 MB, except where indicated)
MPEG2 (MP at ML, POPAI Standard 59)
MPEG2 (DVB-T)
MPEG4 (OpenDivX, POPAI Standard E7)
MPEG4 (H.264 AVC, POPAI Standard S11)
MPEG4 (DVB-T H.264)
Microsoft MPEG4 (V1, V2, V3)
WMV V9 - VC1 also up to 20 Mbps (POPAI Standard E4)
Apple QuickTime (SMC, RPZA Codecs)
HD Video (up to 1920 x 1080p Resolution)
MPEG2 (MP at HL, POPAI Standards S10, S12, E6)
MPEG2 (DVB-T)
MPEG4 (OpenDivX)
MPEG4 (H.264 AVC, POPAI Standards S12, E8)
MPEG4 (DVB-T H.264)
Microsoft MPEG4 (V1, V2, V3)
WMV 9 VC1 (POPAI Standard E5)
Apple QuickTime (SMC, RPZA Codecs) | | Animation | HTML/JavaScript/SVG (as per WebKit)
Animated GIF (within an HTML file)
Flash (.SWF) v11 | | Data | Microsoft PowerPoint 2010 (save as WMV)
Apple Keynote (save as MOV) | | Still Image | Tiff
JPEG/JPG (POPAI Standard S1)
GIF
BMP
PNG (POPAI Standards E1, E2, E3) | | Audio | WAV
MP3 (POPAI Standard S5)
WMA (V1, V2, V3)
AC3
AAC | | Text | RSS
Formatted text
European languages (and Greek, Russian, Chinese, Japanese, Korean, Arabic in OpenType)
TrueType fonts | | Media Zones Supported | Unlimited text zones (per layout)
Unlimited still image zones (per layout)
Unlimited audio zones (per layout)
Two video zones (per layout)
Transparent zone capable | | Input Voltage | 90 - 250 VAC (50/60 Hz) | | Compliances | FCC (subscriber / power supply)
RoHS (subscriber / power supply)
WEEE (subscriber / power supply)
UL (power supply)
CE (power supply)
CSA (power supply) | | Dimensions (WxHxD) | 12 x 1.5 x 7.5" (307 x 37 x 190 mm) | | Weight | 5.5 lb (2.5 kg) |
