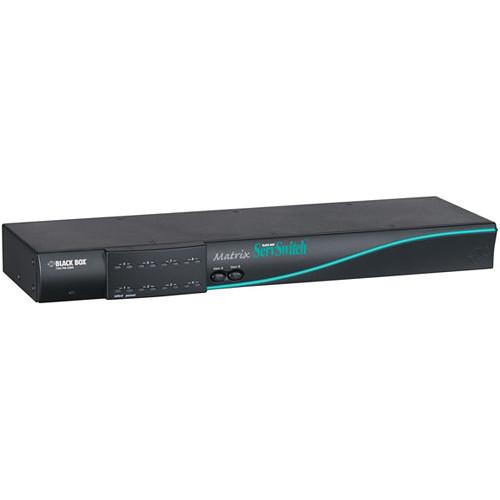

User Manual for Black Box Matrix ServSwitch for PC with 2 Users x 8 CPUs Click to enlarge the picture
Contents of the user manual for the Black Box Matrix ServSwitch for PC
- Product category: KVM Switches Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box KVM Switches
|
User manual for the Black Box Matrix ServSwitch for PC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More zfyydddaryzzzqswaddvbdcrfactcuaedydx The slim chassis style Matrix ServSwitch for PC with 2 Users x 8 CPUs from Black Box manages your CPUs from two locations, or gives two users simultaneous server access. It can connect CPUs and control stations up to 100.0' from the switch. The ServSwitch supports video resolutions up to 1600 x 1280. - Connects two independent KVM users to eight PC CPUs.
- Connect CPUs and control stations up to 100.0' from the switch.
- True multi-channel operation, simultaneous and independently controlled by two users.
- Supports video resolutions up to 1600 x 1280.
- Security features keep data safe.
In the Box Black Box Matrix ServSwitch for PC with 2 Users x 8 CPUs (Slim Chassis Style) Power Cord 6' Serial Cable with RJ-12 (6-Wire RJ-11) Plugs RJ-12 Female to DB9 Female Modular Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box Matrix ServSwitch for PC with 2 Users x 8 CPUs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box SW742A-R3 Specs | Interface | On CPU/KVM and in/out ports of expansion modules
Keyboard:
IBM PS/2, PC/AT
Mouse:
PS/2, RS-232
KV99MCON adapter also supports ADB (Mac compatible) keyboard and mouse ports
RS-232 Ports:
TIA/EIA pinned on RJ-12 (6-wire RJ-11) connectors, DTE | | Distance (Maximum) | Matrix ServSwitch to Attached Devices: 20.00' (6.09 m) of CPU or user cable*
Between any Two Matrix Units: 100.00' (30.48 m) of expansion cable
From any Matrix RS-232 Port to Computer's Serial Port: 50.00' (15.24 m) of serial cable *: Depending on CPUs, monitors, and video resolutions, possibly as much as 100.00' (30.48 m).
Cables need to be purchased separately. | | Protocols | Async | | Data Format | 8 data bits
1 stop bit br> No parity (fixed) | | Data Transfer Rate | 9600.0 b/s
57.6 kb/s | | Resolutions | Up to 1600 x 1280 | | Connectors | 2 x RJ-12 female for serial management
2 x DB25 female for KVM user connections
8 x DB25 female CPU ports
1 x IEC 320 male power inlet Connectors can be added to Matrix by installing SW740C-R3-B expansion module:1 x DB15 female for bus (daisychain) input to switch, and 1 x DB15 male for bus (daisychain) output from switch. | | Indicators | 1 x Power for switch
16 LEDs for CPUs (8 for Select and 8 for Power) | | Standards | With original server cabling
-VGA (color or monochrome/page white) video
With original server cabling (minimal) or coaxial cabling (recommended)
-SVGA and (with KV99MA adapter) Mac video
With coaxial cabling
-XGA (color or monochrome), RS/6000, SGI | | Hardware Requirements | Monitor that supports computer's video standard
Multi-Platform applications require a multi-sync model, capable of creating videos from either composite sync, or separate horizontal and vertical sync signals | | Temperature | 32 to 113°F (0 to 45°C) | | Humidity | 5 to 80% (non-condensing) | | Enclosure | Steel | | Chassis Style | Slim | | Power | 85 to 250 VAC
47 to 63 Hz | | Compatibility | Matrix ServSwitch expansion module (SW740A-C-R3-B)
Multi-Platform Matrix ServSwitch for PC and Sun (SW761A-R4-SW763A-R4, SW767A-R4-SW769A-R4)
ServSwitch Ultra Remote (ACR9002A, ACR9004A)
ServSwitch Remote single-user (ACR9005A)
Matrix ServSwitch expansion cables, DB15 (KV180010 and more)
Standard CPU/Server to ServSwitch cables (EHN048, EHN151)
Coax CPU/Server to ServSwitch cables (EHN282, EHN382, EHN206, EHN515)
ServSwitch USB Coax CPU cables (EHN485)
Standard ServSwitch to keyboard/monitor/mouse cables, for PS/2 (EHN154)
Coax ServSwitch to keyboard/monitor/mouse cables (EHN283, EHN383, EHN201, EHN225) | | Certifications | CE
FCC Part 15 Subpart B Class A
IC Class A/classe A | | Dimensions (WxHxD) | 16.80 x 1.75 (1U) x 4.80" (42.67 x 4.44 (1U) x 12.19 cm) | | Weight | 4.9 lb (2.2 kg) | | | | Package Weight | 6.1 lb | | Box Dimensions (LxWxH) | 19.7 x 7.9 x 4.1" |
