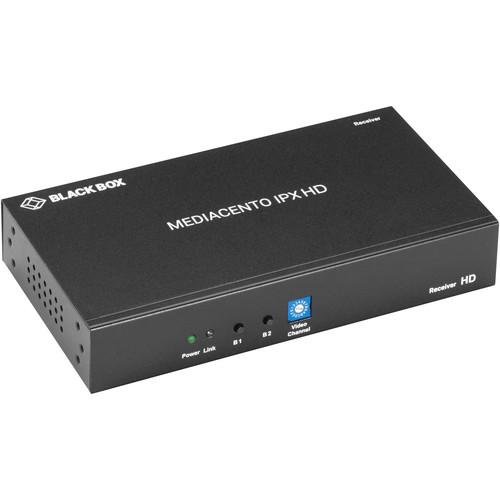

User Manual for Black Box MediaCento IPX HD Extender Receiver Click to enlarge the picture
Contents of the user manual for the Black Box MediaCento IPX HD Extender
- Product category: Video Extenders & Repeaters Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box Video Extenders & Repeaters
 |
User manual for the Black Box MediaCento IPX HD Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description Provided by third party: This IP-based video distribution solution uses existing standards-based Ethernet technology and TCP/IP protocols to extend HD HDMI video signals on your Gigabit Ethernet network. In a multicast configuration, one transmitter can drive multiple receivers with no extra network load.
The MediaCento IPX HD supports High Defenition video for great pictures up to 1080p.
Whether you choose to utilize existing LAN infrastructure, or setup a dedicated video network, setup is easy. For a unicast setup, simply connect your source, your display, a network switch, and you're ready go!
- Key Features
-
- Better video: supports up to 1080p HD (High Def)

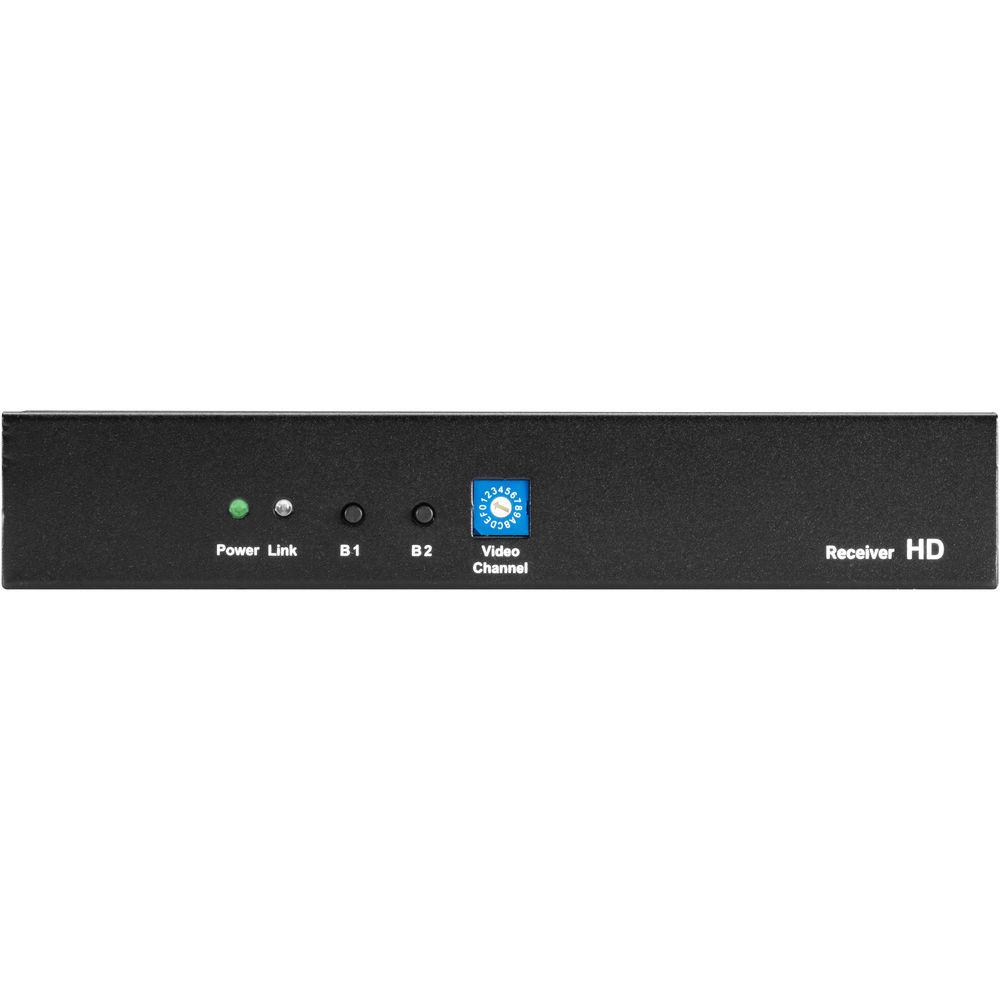

- Better configuration: Setup units using only the front panel interface, no additional configuration required
- Better compatibility: Intercompatible with the MediaCento 4k
- Any source to any screen, over IP
- Extend HDMI video signals over a Gigabit Ethernet network
- Create eye-catching video walls of up to 8x8 displays
- PoE power eliminates external power supplies
- Use with the MediaCento Controller for matrix switching and video wall control
- HDMI HD video over IP
- This IP-based video distribution solution uses existing standards-based Ethernet technology and TCP/IP protocols to extend HD HDMI video signals on your Gigabit Ethernet network. In a multicast configuration, one transmitter can drive multiple receivers with no extra network load.
- HD means better video
- The MediaCento IPX HD supports High Defenition video for great pictures up to 1080p.
- Plug-and-Play setup
- Whether you choose to utilize existing LAN infrastructure, or setup a dedicated video network, setup is easy. For a unicast setup, simply connect your source, your display, a network switch, and you're ready go!
- PoE support for remote powering
- The MediaCento IPX HD is PoE powered eliminating the need for additional power supplies. Using a PoE network switch completely eliminates the need for external power supplies making installation easier.
In the Box Black Box MediaCento IPX HD Extender Receiver (HDMI over IP) 1) MediaCento IPX HD Receiver 1) 5-VDC, 3-A power supply 1) Quick Start Guide Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box MediaCento IPX HD Extender Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

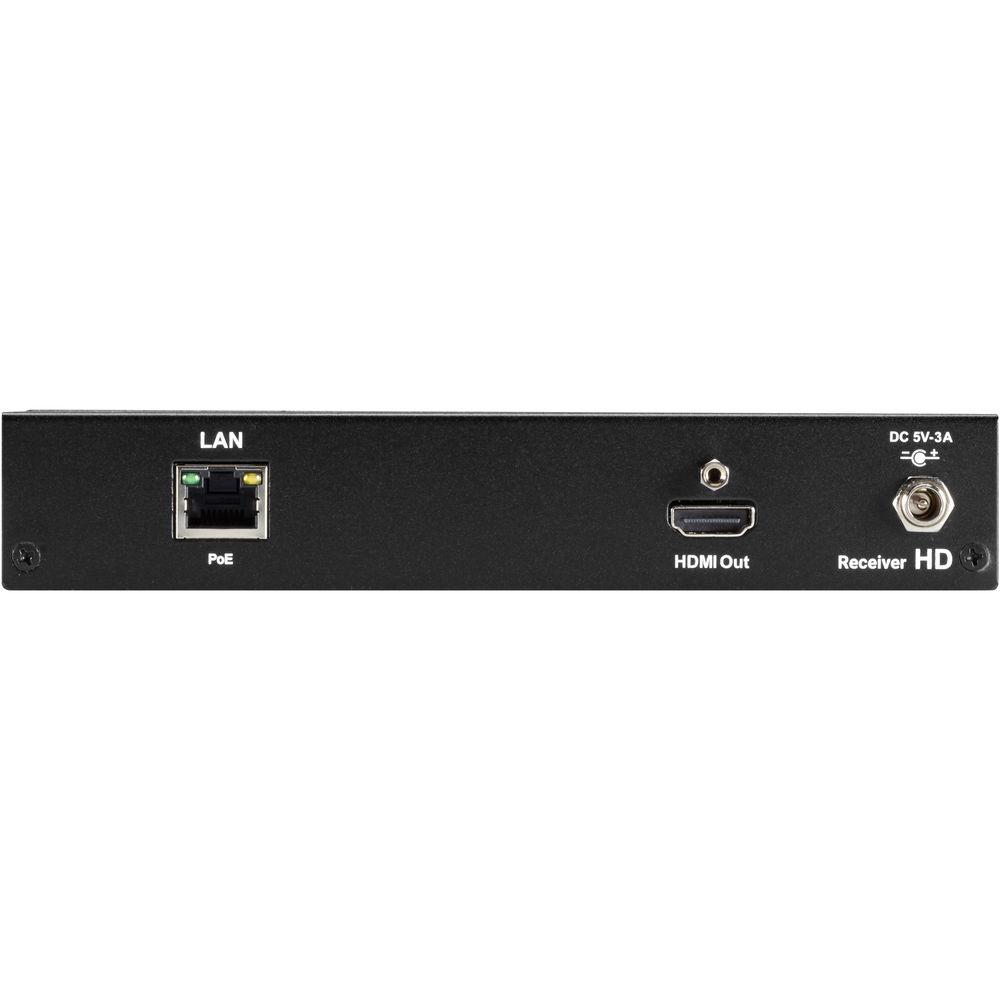

Technical parametersBlack Box MediaCento Specs | | | Device Type | Video/audio extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Cabling type | 1000Base-T | | Data Link Protocol | GigE | | Max Resolution | 1920 x 1080 | | Max Transfer Distance | 328 ft | | Status Indicators | Power, link OK | | Features | 7.1 channel audio support, 5.1 channel audio support, LPCM 7.1 support, Dolby TrueHD support, DTS-HD Master Audio support | | Compliant Standards | IEEE 802.3at | | | | Interfaces | 1 x HDMI (output) - 19 pin HDMI Type A female
1 x network - RJ-45 female | | | | Compliant Standards | RoHS2, EDID compatible, HDCP 2.2 | | TAA Compliant | Yes | | | | Power Over Ethernet (PoE) | PoE | | Power Device | External power adapter | | | | Width | 3.9 in | | Depth | 7.1 in | | Height | 1.3 in | | Weight | 16.58 oz | | | | Service & Support | Limited warranty - 1 year | | | | Min Operating Temperature | 32
