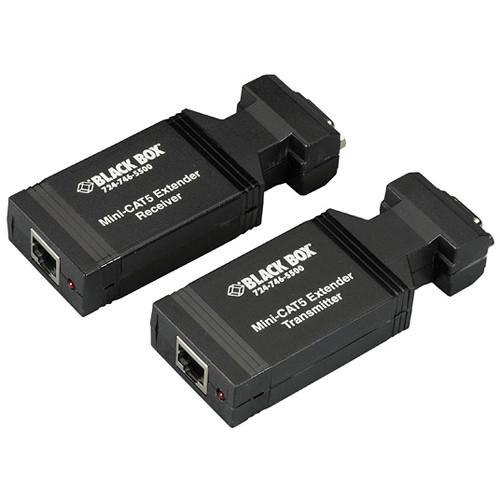

User Manual for Black Box Mini CAT5 VGA & Component Extender Kit Click to enlarge the picture
Contents of the user manual for the Black Box Mini CAT5 VGA &
- Product category: KVM Extenders Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box KVM Extenders
|
User manual for the Black Box Mini CAT5 VGA & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description The Black Box Mini CAT5 VGA & Component Extender Kit is a VGA over CAT5e/6 transmitter/receiver set including two VGA-to-RCA adapter cables, one for each end. You can extend either VGA or RCA Component video in resolutions up to 1600 x 1200 up to 300 ft, and in up to 1280 x 1024 up to 500 ft. The transmitter handles resolutions up to 1600 x 1200 at any refresh rate.
The video signal is buffered and boosted to deliver a clear image, and differential signaling eliminates ground loops and noise. Extensions up to 300 ft require the use of only one power supply, which is included, connected on only one of the two units. Distances beyond 300 ft require a second power supply, Black Box model # AC504A-PS, sold separately, connected on the second unit. - VGA & RCA Component Video Extender
-
- VGA over CAT5e/6 UTP transmitter/receiver set
- Includes two VGA to RCA adapter cables
- Carries 1600 x 1200 300 ft @ 85Hz; 1280 x 1024 500 ft @ 60Hz
- The transmitter handles up to 1600 x 1200 at any refresh rate
- Buffered and boosted video signal
- Differential signaling
- Compact, lightweight, plastic enclosure
In the Box Black Box Mini CAT5 VGA & Component Extender Kit Transmitter Receiver Power Supply 2 x HD-15 M to 3-RCA M Cables User's Manual 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box Mini CAT5 VGA & Component Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box AC504A-CP Specs | | | Ports | Transmitter:
1 x HD15 VGA (Input)
1 x RJ45 Ethernet (Output)
Receiver:
1 x HD15 VGA (Output)
1 x RJ45 Ethernet (Input) | | Supported Resolutions | 1600 x 1200 @ 85 Hz
1280 x 1024 @ 60 Hz | | Maximum Transmission Distance | 500' / 152.4 m | | Transmission Method | CAT5e/CAT6 Cable | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | CE, as per Manufacturer | | Material of Construction | Plastic | | Dimensions | 0.8 x 1.7 x 4.5" / 2.0 x 4.3 x 11.4 cm | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 8.74 x 5.433 x 3.15" |
