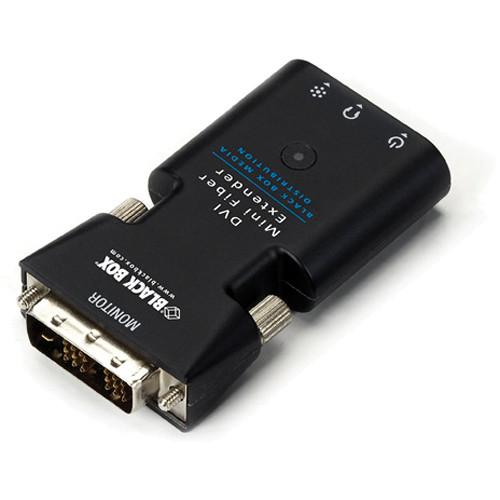

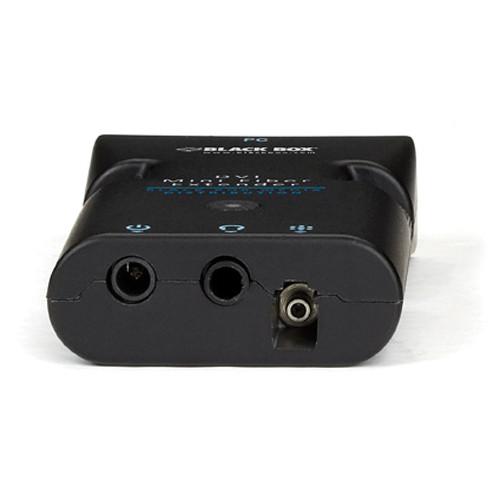

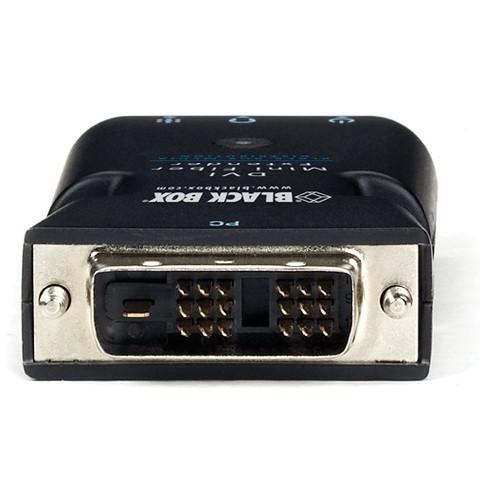

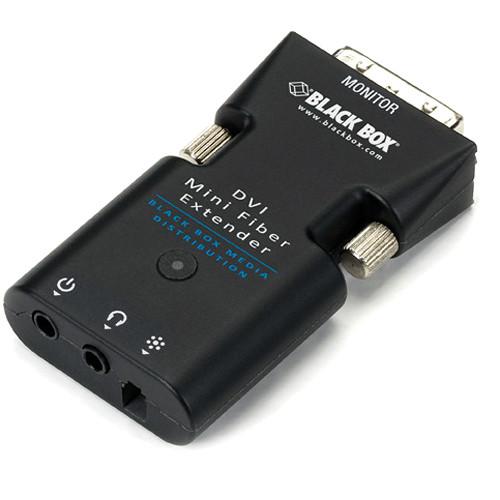

Product description The Black Box Mini Extender Receiver for DVI-D & Stereo Audio over Fiber carries a DVI and 24-bit stereo audio signal over fiber from the Mini Extender Transmitter, sold separately, or from Black Box optical splitters connected to the transmitter. It's the same receiver included with the Mini Extender Set, supporting 1920 x 1200 resolution, singlemode distances up to 0.9 miles, multimode distances up to 0.3 miles, EDID programming, and 24-bit true color. (The available Black Box optical splitter model #s are AVX-DVI-FO-SP8, AVX-DVI-FO-SP4, and AVX-DVI-FO-SPCS.)
Optical fiber is immune to interference from machinery or equipment, so the signal is carried without any loss even in high EMI/RFI environments. A two-color LED indicates power status and link status. - Features
-
- Carries signal from the Mini Extender Transmitter via Black Box optical splitters
- Carries up to 0.9 miles over a single strand of singlemode fiber or 0.3 miles over multimode fiber
- EDID programmable
- Supports 24-bit true color
- Power and link status LED indicators
- 1310/1550 nm dual wavelength
- Lower power consumption
In the Box Black Box Mini Extender Receiver for DVI-D & Stereo Audio over Fiber Power Supply 3.5mm Audio Cables User Manual 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box Mini Extender Receiver for DVI-D & Stereo Audio over Fiber in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box AVX-DVI-FO-MINI-RX Specs | | | Ports | Receiver:
1 x DVI-D Male (Output)
1 x 3.5 mm Audio (Output)
1 x LC (Input) | | Supported Resolutions | 1920 x 1200 @ 60 Hz | | Maximum Transmission Distance | .9 mi / 1.5 km | | Transmission Method | Multimode/Singlemode Cable | | Color Depth | 24-Bit | | Audio Channels Supported | 2-Channel Stereo (24-Bit) | | Impedance | 60K Ohms (Audio) | | | | Frequency Response | 20Hz to 20kHz | | Signal Level | 2 Vp-p (Audio) | | | | DC Input Power | 5 VDC at 0.5 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | RoHS, as per Manufacturer | | Dimensions | 0.6 x 2.7 x 1.5" / 1.5 x 6.9 x 3.8 cm | | Weight | 0.2 lb / 90.7 g | | | | Box Dimensions (LxWxH) | 9.0 x 5.0 x 2.0" |
