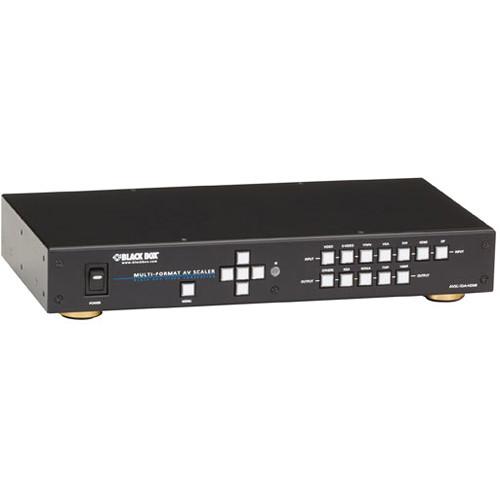

User Manual for Black Box Multi-Format AV Scaler Switcher with DisplayPort Click to enlarge the picture
Contents of the user manual for the Black Box Multi-Format AV Scaler Switcher
- Product category: Signal Converters Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box Signal Converters
|
User manual for the Black Box Multi-Format AV Scaler Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description Ideal for presentations and multi-format AV setups, the Multi-Format AV Scaler/Switcher with DisplayPort from Black Box scales and scan-converts video from composite, S-video, component, VGA, DVI, HDMI, and DisplayPort sources outputting it to HDMI and VGA. It will support input resolutions up to 2560 x 1600 for DisplayPort sources, and up to 1080p (at 50 or 60 Hz) and 1920 x 1200 (WUXGA) for DisplayPort, HDMI, DVI, component, and VGA sources. After scaling and re-timing, if required, it can output at up to 1600 x 1200 (UXGA) and 1080p resolutions. Additionally, NTSC and PAL/SECAM SD video signals are supported across the inputs and outputs.
The video inputs apart from DisplayPort are each paired with a stereo analog input, and the component input features a S/PDIF (RCA) audio input as well as the analog one. There is one stereo analog and one S/PDIF digital audio output. In addition to the separate inputs and output, HDMI-embedded audio will also pass through the device.
The device can be controlled locally via front-panel controls or using the included IR remote control. For remote operation, there is an RS-232 port for automation systems a software-based control, and there is an Ethernet port for controlling it over a network. - A total of 7 different video inputs
- HDMI I/O support 36-bit Deep Color
- HDCP 2.0 compliant for connecting Blu-ray players or HD set-top boxes (HDCP-encrypted sources cannot be output through VGA)
- Supports IR remote signal extension up to 1000'
- Features 3:2 and 2:2 pull-down support to accommodate 24 fps film frame rates
- Four preset color modes plus intelligent color adjustment for hue, saturation, sharpness, brightness, and more
- Autodetection of the video input signal, be it NTSC, PAL, or SECAM
- 19" rackmountable form factor with the included brackets
UPC: 822088064701 In the Box Black Box Multi-Format AV Scaler/Switcher with DisplayPort IR Remote Control 2 x Rackmount Brackets Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box Multi-Format AV Scaler Switcher with DisplayPort in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box AVSC-7DA-HDMI Specs | | | Video Inputs | 1 x DisplayPort
1 x HDMI
1 x DVI-D
1 x Composite on RCA connector
1 x VGA
1 x Component on 3 x RCA connectors
1 x S-video in 4-pin mini-DIN | | Input Resolutions | All Inputs: NTSC (480i), PAL (576i)
DisplayPort, HDMI, DVI, Component, VGA:1080p (up to 60 Hz), WUXGA (1920 x 1200)
DisplayPort Only: 2560 x 1600 | | Audio Inputs | Component Video Channel:
1 x Stereo analog on 2 x RCA connectors
1 x S/PDIF on RCA connector
S-video Channel:
1 x Stereo analog on 2 x RCA connectors
Composite Video Channel:
1 x Stereo analog on 2 x RCA connectors
DVI Channel:
1 x Stereo analog audio on 3.5 mm mini jack
VGA Channel:
1 x Stereo analog audio on 3.5 mm mini jack | | Video Outputs | 1 x HDMI
1 x VGA | | Output Resolutions | 50 Hz Only: 576p, 720p
60 Hz Only: 480i, 480p, 920 x 1200
50 or 60 Hz: SVGA (800 x 600), XGA (1024 x 768), 720p, 1080p, WXGA (1280 x 800), UXGA (1600 x 1200), 1400 x 1500
24 Hz: 1080p
100 Hz: 720p
120 Hz: 720p, XGA (1024 x 768) | | Audio Outputs | 1 x S/PDIF on RCA connector
1 x Stereo analog audio on 3.5 mm mini jack
HDMI-embedded audio | | Control | 1 x Ethernet on RJ-45 connector
1 x RS-232 on DB-9 female connector
1 x IR extender port on 3.5 mm mini jack | | Service | 1 x Link port on 4-pin terminal block connector (for firmware updates) | | DC Jack | Outer Diameter: 5.5 mm
Inner Diameter: 2.1 mm | | | | Power Requirements | Device: 12 VDC, 10 A
Power Supply: 100 to 240 VAC, 50 to 60 Hz | | Dimensions (H x W x D) | 1.7 x 12 x 6" / 4.3 x 30.5 x 15.2 cm | | Weight | 3.4 lb / 2 kg | | | | Package Weight | 5.85 lb | | Box Dimensions (LxWxH) | 13.0 x 10.2 x 3.0" |
