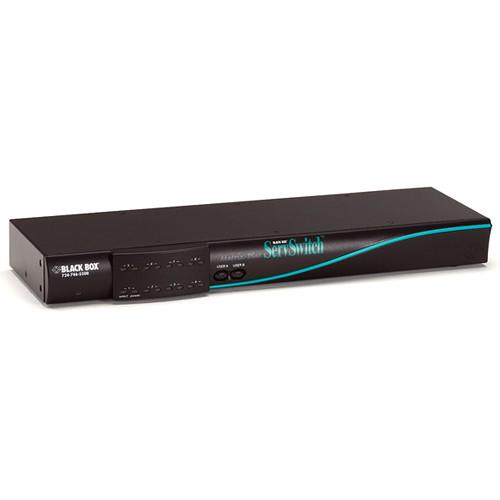

Product description Multi-Monitors: Maximizing Multitasking Read More xsbuvybsuceytzwutuyr The Multi-Platform Matrix ServSwitch for PC & Sun (2 Users x 4 CPUs) from Black Box is a slim chassis style ServSwitch, which manages your CPUs from two locations, or gives two users simultaneous server access. It can connect the CPUs and control stations up to 100.0' from the switch. The switch supports video resolutions up to 1600 x 1280. - Connects two independent KVM users to four PC only or PC and Sun CPUs.
- USB support and serial emulation.
- Connects CPUs and control stations up to 100.0' from the switch.
- True multi-channel operation, simultaneous and independent control by two users.
- Supports video resolutions up to 1600 x 1280.
- Security features keep data safe.
In the Box Black Box Multi-Platform Matrix ServSwitch for PC & Sun (2 Users x 4 CPUs) Power Cord 6.0' Serial Cable with RJ-12 (6-Wire RJ-11) Plugs RJ-12 Female to DB9 Female Modular Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box Multi-Platform Matrix ServSwitch for PC & Sun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box SW761A-R4 Specs | Chassis Style | Slim | | Interface | On CPU/ KVM and In/Out Ports of Expansion Modules:
Keyboard:
IBM PS/2, PC/AT, or Sun HD15 or 13W3
Mouse:
PS/2, RS-232, or Sun HD15 or 13W3
KV99MCON adapter also supports ADB (Mac compatible) keyboard and mouse ports
RS-232 Ports:
TIA/EIA pinned on RJ-12 (6-wire RJ-11) connectors, DTE | | Distance (Maximum) | Matrix ServSwitch to Attached Devices:
20.00' (6.09 m) of CPU or user cable*
Between any Two Matrix Units:
100.00' (30.48 m) of expansion cable
From any Matrix RS-232 Port to Computer's Serial Port:
50.00' (15.24 m) of serial cable *: Depending on CPUs, monitor, and video resolution, possibly as much as 100.00' (30.48 m).
Cables sold separately | | Protocol | Async | | Data Format | 8 data bits
1 stop bit
No parity (fixed) | | Data Transfer Rate | 9600.0 b/s
57.6 kb/s | | Resolutions | Up to 1600 x 1280 | | Connectors | 1 x RJ-12 female for serial management
2 x DB25 F for KVM user connections
4 x DB25 female CPU ports
1 x IEC 320 male power inlet Can be added to Matrix by installing SW740C-R3-B Expansion Module: 1 x DB15 female for bus (daisy chain) input to switch, 1 x DB15 male for bus (daisy chain) output from switch. | | Indicators | 1 x power for switch
8 x LEDs for CPUs (4 for select and 4 for power) | | Standards | With Original Server Cabling:
VGA (color or monochrome/page white) video
With original Server Cabling (Minimal) or Coaxial Cabling (Recommended):
SVGA and (with KV99MA adapter) Mac video
With Coaxial Cabling:
XGA (color or monochrome), RS/6000, SGI, or Sun video | | Hardware Requirements | Monitor that supports your computer's video standard
Multi-platform applications require a multi-sync model capable of forming video from either composite sync or separate horizontal and vertical sync signals | | Temperature | 32 to 113°F (0 to 45°C) | | Humidity | 5 to 80% (non-condensing) | | Enclosure | Steel | | Power | 85 to 250 VAC
47 to 63 Hz | | Compatibility | Matrix ServSwitch expansion module (SW740C-R3-B)
Matrix ServSwitch for PC (SW741A-R3-SW743A-R3, SW764A-R3-SW766A-R3)
ServSwitch Ultra Remote (ACR9002A, ACR9004A)
ServSwitch Remote single-user (ACR9005A)
Multi-platform Matrix ServSwitch expansion cables, DB15 (KV180010, and more)
Multi-platform Matrix ServSwitch serial cables (EHN290-EHN293)
Standard CPU/Server to ServSwitch cables (EHN048, EHN151)
Coax CPU/Server to ServSwitch cables (EHN282, EHN382, EHN206, EHN515)
ServSwitch USB Coax CPU cables (EHN485)
Standard ServSwitch to keyboard/monitor/mouse cables, for PS/2 (EHN154)
Coax ServSwitch to keyboard/monitor/mouse cables (EHN283, EHN383, EHN201, EHN225) | | OS Compatibility | PC, Sun, and Mac | | Certifications | CE
FCC Part 15 Subpart B Class A
IC Class A/classe A | | Dimensions (WxHxD) | 16.80 x 1.75 (1U) x 4.80" (42.67 x 4.44 (1U) x 12.19 cm) | | Weight | 4.3 lb (1.9 kg) | | | | Box Dimensions (LxWxH) | 19.75 x 7.75 x 4.25" |
