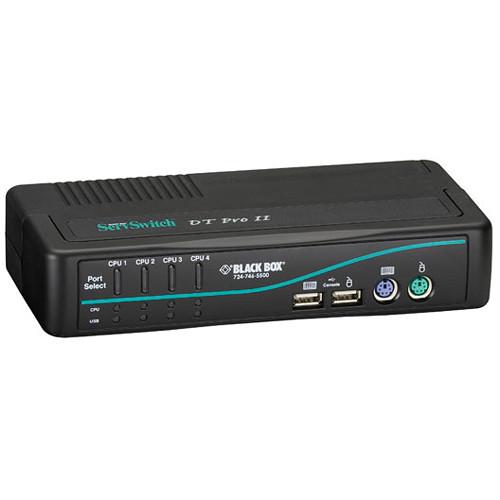

User Manual for Black Box ServSwitch 4-Port DT Pro II KVM Switch with Audio Kit Click to enlarge the picture
Contents of the user manual for the Black Box ServSwitch 4-Port DT Pro
- Product category: KVM Switches Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box KVM Switches
|
User manual for the Black Box ServSwitch 4-Port DT Pro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More ycebequadauxwsrzsbfaxcxqtdbwefzxf The ServSwitch 4-Port DT Pro II KVM Switch with Audio Kit from Black Box lets you control and switch multiple PS/2 or USB CPUs and their keyboard, video, mouse, and audio connections. You can link PS/2 KVM to PS/2 CPUs, USB KVM to PS/2 CPUs, PS/2 KVM to USB CPUs, or USB KVM to USB CPUs. Further, you can connect audio and USB peripherals to the KVM switch. The switch provides superior video resolutions of up to 1920 x 1440 and crystal-clear audio. The switch allows you to choose from two ways to switch KVM and CPU and USB peripherals: via front-panel buttons or PC hot-keys. Simply press the front-panel button that corresponds to the CPU you want to switch or use hot-keys to start autoscan. The autoscan function enables you to automatically scan and monitor all computers one by one, that are connected to the switch. - Use desktop switch to control up to four PS/2 or USB CPUs and their KVM connections
- Supports 1920 x 1440 maximum resolution
- Choose from push button or hot-key switching
- Enables USB 2.0 peripheral switching
- Integral LEDs on push buttons show port activity
- Provides audio connections
- Use hot-keys to select or switch channels, bind or unbind switching, or to start or stop autoscan. You can:
Select PC channel
Select hub port control
Select audio and microphone channel
Bind/unbind PC and hub port control switching
Bind/unbind PC and audio/microphone switching
Switch to next lower/higher PC channel
Previous PC channel
Turn beep sound on/off
Define hot-key switch to preceding sequence
Start autoscan
Start autoscan with programmable delay time
Stop autoscan - Autoscan function enables you to automatically scan and monitor attached computers
- Works with Windows 98/Me/XP, Windows 2000, Windows NT, Linux, NetWare, and Mac OS operating systems
In the Box Black Box ServSwitch 4-Port DT Pro II KVM Switch with Audio Kit 4 x 6' DT Pro II CPU Cables ServSwitch DT Pro II Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box ServSwitch 4-Port DT Pro II KVM Switch with Audio Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box KV7021A-K Specs | User Controls | 4-port selection buttons | | Connectors | Computer End:
PS/2 Keyboard, PS/2 Mouse, and VGA Video: 4 x HD15 female
USB Keyboard, Mouse, and Peripherals: 4 x USB type B female
Microphones/Speakers: 8 x 3.5 mm jacks
Console End:
Keyboard: 1 x 6-pin mini DIN female or 1 x USB type A female
Mouse: 1 x 6-pin mini DIN female or 1 x USB type A female
Monitor: 1 x HD15 female
USB Peripherals: 2 x USB type A female
Microphone/Speaker: 2 x 3.5 mm jacks
Power: 1 x barrel connector | | Resolution | 1920 x 1440 | | Power | Power Supply: 9 VDC | | Indicators | 4 x Port LEDs
4 x Hub LEDs | | Operating Systems Supported | Windows 98/Me/2000/XP and Windows NT
Linux, NetWare, Mac OS | | Temperature Tolerance | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to +140°F (-20 to +60°C) | | Relative Humidity | Up to 80% (non-condensing) | | Dimensions (W x H x D) | 8.7 x 1.8 x 4.1" (22.0 x 4.5 x 10.4 cm) | | Weight | 31.7 oz (900.0 g) |
