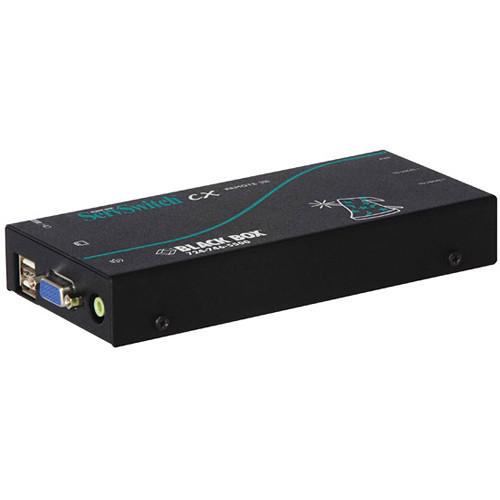

User Manual for Black Box ServSwitch CX Basic User Station with USB Click to enlarge the picture
Contents of the user manual for the Black Box ServSwitch CX Basic User
- Product category: Networking Accessories Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box Networking Accessories
|
User manual for the Black Box ServSwitch CX Basic User contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description The ServSwitch CX Basic User Station with USB from Black Box allows you to connect a remote KVM to the ServSwitch CX or ServSwitch CX with IP. The ServSwitch CX basic user station should be used with CAT5 or skew-free cabling to achieve the maximum distance. It can also be used with CATx cabling to achieve shorter distances. The ServSwitch allows you to make two separate links up to 328' to different remote systems. The USB keyboard and mouse connections are available without audio and de-skew compensation capabilities. The user station comes with port connectivity including two USB type A female connectors for mouse and keyboard, one HD15 female connector for video, two RJ-45 female connectors for interconnect, and a barrel type jack center positive output connector. - Connects a remote KVM to the ServSwitch CX or ServSwitch CX with IP
- Achieve maximum distance with CAT5 or skew-free cabling and CATx cabling to achieve shorter distances.
In the Box Black Box ServSwitch CX Basic User Station with USB Power Supply Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box ServSwitch CX Basic User Station with USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box KV04U-REM Specs | Connectors | Mouse and Keyboard: 2 x USB type A female
Video: 1 x HD15 female
Interconnect: 2 x RJ-45 female
Power: 1 x barrel type jack center positive | | Distance | 2 links up to 328' (100 m) | | | | Power Source | Transformer Type (PS649-R2) | | Input Voltage | 100-240 VAC, 50-60 Hz | | Input Current | 0.4 A | | Output Voltage | 5 VDC | | Output Current | 2 A | | | | Operating Temperature | 0 to 40°C (32 to 104°F) | | Operating Humidity | Non-condensing: 5 to 85% | | Storage Temperature | -30 to 80°C (-22 to 176°F) | | Ambient Temperature | Adjacent Temperature: Below 39°F (4°C) for proper cooling of unit | | Altitude | Maximum: 25,000' (7620 m) | | Compliance | FCC (Part 15 Class A)
UL (Power Supply Listed as E144572)
CE and RoHS | | Dimensions (W x H x D) | 2.9 x 0.9 x 4.9" (75.9 x 24.8 x 124.9 mm) | | Weight | 1 oz (30 g) | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 11.6 x 9.7 x 2.2" |
