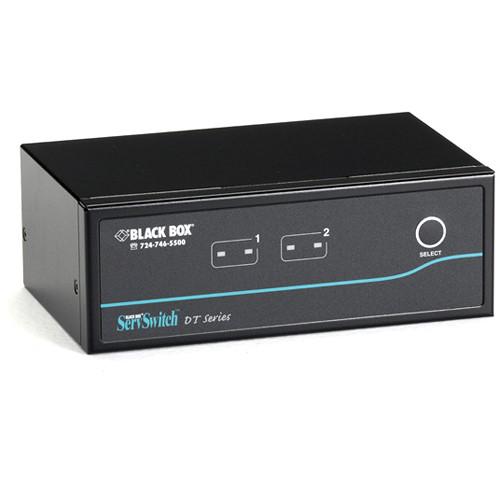

User Manual for Black Box ServSwitch DT Dual-Head DVI USB 2-Port KVM Switch Click to enlarge the picture
Contents of the user manual for the Black Box ServSwitch DT Dual-Head DVI
- Product category: KVM Switches Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box KVM Switches
|
User manual for the Black Box ServSwitch DT Dual-Head DVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The ServSwitch DT Dual-Head DVI USB 2-Port KVM Switch from Black Box enables you to control two multimedia computers. The switch supports digital resolutions up to 1920 x 1200 on each video head for sharp video plus stereo audio. It is also compatible with DVI flat screens. In addition to multimedia capabilities, the KVM switch features two USB ports. The switch's device hub port supports USB 1.1 or 2.0 high-speed device sharing, plug and play, and DDC2B emulation. - Access, control, boot, and reboot multiple USB-enabled multimedia computers using one USB keyboard, monitor, and mouse
- Compatible with DVI flat screens (digital only)
- USB 2.0 device hub ports for high-speed USB device sharing
- Choose from autoscan intervals of 3, 8, 15, and 30 seconds
- Hotkey or push-button switching
- Audio and microphone switching is independent of the KVM switch
UPC: 822088063704 In the Box Black Box ServSwitch DT Dual-Head DVI USB 2-Port KVM Switch Universal Power Supply (Output: 9 to 12 VDC, 1.5 A) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box ServSwitch DT Dual-Head DVI USB 2-Port KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box KV9622A Specs | Maximum Resolution | HDTV: 1080p
DVI-D: 1920 x 1200
Bandwidth: 1.5 Gb/s | | Connectors | CPU Side:
Video: 4 x DVI-I (digital only)
USB: 2 x USB type B
Audio: 4 x 3.5 mm stereo jacks
Console Side:
Video: 2 x DVI-I (digital only)
USB Workstation/Device Sharing: 4 x USB type A
Audio: 2 x 3.5 mm stereo jacks | | Power | 9 to 12 VDC, 1.5 A | | Supported Operating Systems | Windows 95/98/ME/XP/NT/2000, Mac OS | | Compatibility | ServSwitch DVI cables (EHN900024U)
DVI cables (EVNDVI02)
3.5 mm stereo audio cables (EJ110) | | Approvals | CE | | Dimensions (W x H x D) | 6.31 x 2.25 x 4.19" (16.0 x 5.71 x 10.64 cm) | | Weight | 2.2 lb (0.9 kg) | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 9.37 x 7.323 x 3.701" |
