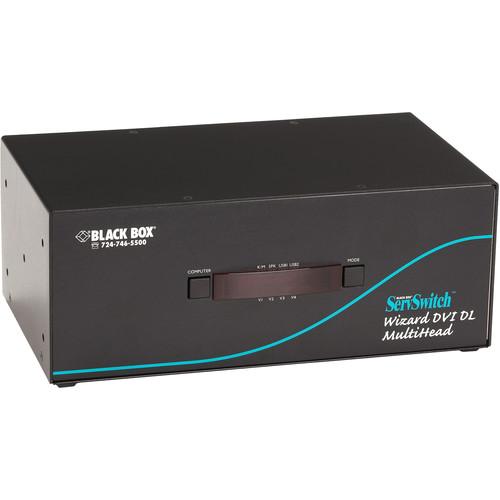

Product description Multi-Monitors: Maximizing Multitasking Read More The Black Box ServSwitch Wizard DVI DL Quad-Head 4-Port Desktop KVM Switch enables a single user to control four computers with quad video heads and share USB peripherals between them. The KVM switch centralizes and simplifies multihead video switching access at a single user console with multiple DVI screens. You can select a channel on the ServSwitch Wizard DVI Dual-Link using hotkeys, a three-button mouse, or the switch's front-panel controls. When autoscan is enabled, the switch cycles automatically between connected computers in a sequence. A seven-segment numeric display indicates the selected channel.The ServSwitch Wizard DVI Dual-Link enables a single KVM workstation user to control four separate computer systems or servers and flexibly share peripherals among them. In addition to four DVI-I video KVM user console inputs for multiscreen workstations, the switch features quad DVI-I video connectors on each of its four computer channels. This gives you an easy access to four video heads on each channel.Each video head channel on this switch supports dual-link digital DVI video at up to 450 megapixels per second. It supports 2048 x 1080 video resolutions for post-production or 2560 x 1600 (WQXGA) image clarity for detailed medical or R&D lab imaging.In addition to quad video connectors, each computer channel on the ServSwitch Wizard DVI Dual-Link has USB Type B and a 3.5mm audio jack inputs. You can also use a KVM console to work on one computer while your USB devices remain connected to other computers. Since the ServSwitch Wizard Dual-Link DVI supports audio connectivity, you can connect speakers to yet another computer (audio can be switched independently from USB and video).The ServSwitch Wizard DVI Dual-Link's rear panel has two USB Type A ports as part of its KVM user console connections plus separately switched two USB Type A ports for additional USB 2.0 connectivity. You can quickly reassign any of the connected USB peripherals to any of the connected computers. Attached devices can either be switched in unison or you can mix peripherals between any of the systems.The switch supports a wide range of USB devices, especially high-speed USB 2.0 peripherals on its switched USB ports. Printers, scanners, and non-standard HID devices can all be attached. For instance, you can be creating e-mails on one system, listening to audio on a second one, printing from a third computer, and scanning documents on another—all at the same time.With USB emulation technology, the ServSwitch Wizard Dual-Link DVI switch supports instant, reliable hotkey and mouse switching. It features True USB Emulation, which ensures that the full characteristics of the connected USB peripherals, including keyboards and mice are passed to every system concurrently. Specialized features are quickly recognized on the attached devices. Each computer retains this information even if the device is plugged into another computer. The switch also supports EDID emulation. - Each video head supports dual-link DVI video at up to 450 megapixels per second
- Control all functions from a console with four high-resolution DVI screens
- Two independent USB 2.0 channels for switching between high-speed USB peripherals
- Switch attached peripherals collectively to any computer systems or link them to separate systems
- True emulation technology on switched USB inputs
- Attached USB devices can be continuously emulated to each computer
- Supports instantaneous hotkey switching plus the extra keys and features of enhanced keyboards and mice
- Works with all known software and operating systems (Windows, Linux, Sun, Mac, NetWare, UNIX, and others)
- Equipped with audio inputs on KVM and computer channels
- Multiple switches can be cascaded to support additional video heads on a switching platform
In the Box Black Box ServSwitch Wizard DVI DL Quad-Head 4-Port Desktop KVM Switch AC Power Adapter 4 x Self-Adhesive Rubber Feet Limited 2-Year Double Diamond Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box ServSwitch Wizard DVI DL Quad-Head 4-Port Desktop KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box Wizard Specs | Max Computer Connections | 4 | | Console Connectors | 20 x dual-link DVI-I | | Audio Input | 5 x 3.5 mm stereo jack | | USB | 4 x USB Type-A
4 x USB Type-B | | Serial Port | 1 x RJ50 10P10C (RS-232) for syncing control with second KVM switch or for flash upgrades | | Video Resolution | 2048 x 1080, 2560 x 1600 | | Enclosure | Not specified by the manufacturer | | System Requirements | Not specified by the manufacturer | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Power Output | 5 VDC, 2 A | | Indicators | Seven-segment numeric display indicating computer channel currently active
4 x indicators (KVM, SPK, USB1, USB2)
4 x indicators (V1, V2, V3, V4) showing video channels being switched | | Approvals | CE | | Compliance | RoHS | | Dimensions (WxHxD) | 10.24 x 3.94 x 5.9" / 26 x 10 x 15 cm | | Weight | 4.8 lb / 2.2 kg | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 14.3 x 10.9 x 7.7" |
