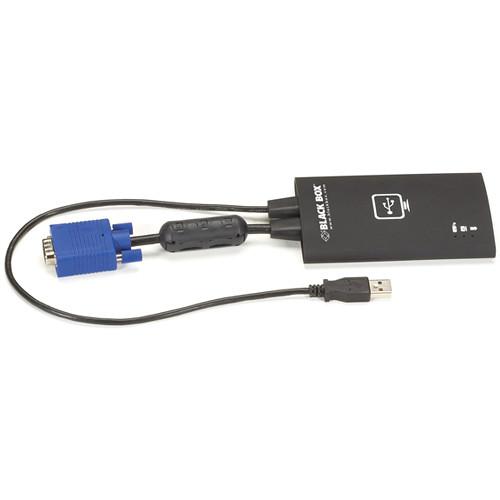

User Manual for Black Box USB Laptop Console Crash Cart Adapter Click to enlarge the picture
Contents of the user manual for the Black Box USB Laptop Console Crash
- Product category: Networking Accessories Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box Networking Accessories
|
User manual for the Black Box USB Laptop Console Crash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description The USB Laptop Console Crash Cart Adapter from Black Box provides a compact way to get immediate BIOS-level access to your server. The cart is the laptop that you carry to the server and, using the adapter, you can plug in to obtain quick server access. Connect to the video port of any crashed server to perform emergency system recovery, carry out routine system maintenance, or perform a server task of your choice. By emulating a USB keyboard and mouse, the USB laptop adapter and its software enables you to interact with the target server as a window on your laptop. For server connections, the adapter has a built-in VGA video and USB keyboard/mouse connectors. On the laptop side, it features a high-speed (480 Mb/s) USB mini type (B) connector with a detachable USB cable for server-to-laptop links. For older PS/2 style keyboards, there is a passive PS/2 to USB adapter included*. The fully hot-pluggable adapter requires no external power, thus making it portable and easy to use. The adapter comes with versatile video scaling options. With this adapter, all the software is copied to your laptop without the need to load any drivers or software on the server. The adapter's software gives you real-time video scaling so you can always see the entire screen, even on small laptop displays. Enlarge the window to use all pixels of your laptop (with or without the laptop taskbar seen), or shrink to view another application next to it. Video adjustments also include sample phase sharpening and video noise filtering. Moreover, upon rebooting the connected system, the software interface gives you command line interface and BIOS-level visibility from start to finish. You can even take screen snapshots (as PNG or JPEG files) for system analysis later. Note: *The adapter does not support PS/2 mice - You can log in to a server or computer to troubleshoot or service a system after a crash
- Handheld adapter plugs into the server on one end and your laptop on the other
- No drivers to install on the target computer
- Includes software for viewing server video on your laptop, without having to reboot or change the server in any way
- Scale the video window as needed and even take a screen snapshot.
- Works with Windows and Mac OS X laptops
Applications - Useful for performing system maintenance in compact server rooms, where you can't fit a crash cart or install a KVM console tray in the rack or cabinet
- Classrooms where the server or CPUs are stored in the back of the room and you need quick access to diagnose a problem while students are actively working on their computers
- Troubleshooting ATMs, kiosks, and retail PoS/PoP systems in stores and other areas heavily trafficked by the public
- Configuring digital signage in real time at the screen, away from the controlling PC (just plug the adapter into the player)
- Any field application where you need to interact with target computers
In the Box Black Box USB Laptop Console Crash Cart Adapter Passive PS/2 to USB Keyboard Adapter USB Mini Type (B) Male to USB Type (A) Male Cable Flash Drive with Video Display Software Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box USB Laptop Console Crash Cart Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box KVT100A Specs | Connectors | Inputs on integrated cable (to server)
VGA HD15 male
USB type (A) male
Outputs (to laptop)
Mini USB type (B) female (USB 2.0)
With detachable USB mini type B male to USB type (A) male cable | | Resolution | Maximum: 1920 x 1200 at 60 Hz or
1600 x 1200 at 75 Hz | | System Requirements | PC running Windows 2000/ XP/Vista or
Mac OS X 10.5 (Leopard) or higher (Intel processor only)
High-Speed USB Port (100 mA)
Disk Space: 20 MB for install
Color Display: 24-bit | | Server Requirements | 1 x USB port (full-speed) for keyboard/mouse (500 mA)
Analog VGA graphics output
OS supporting absolute USB mouse (Windows 2000 and later, Mac OS, Linux, and more) Analog DVI can be used with adapter | | Power | From the server or laptop USB interface with a maximum of 500 mA at 5 VDC | | Certifications | RoHS, CE | | Dimensions (W x H x D) | 2.9 x 0.6 x 4.5" (7.3 x 1.5 x 11.4 cm) | | Weight | 0.4 lb (0.2 kg) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 11.7 x 6.5 x 1.9" |
