User Manual for Black Box VGA HDTV Scaler Plus Click to enlarge the picture
Contents of the user manual for the Black Box VGA HDTV Scaler Plus
- Product category: Signal Converters Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box Signal Converters
 |
User manual for the Black Box VGA HDTV Scaler Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|

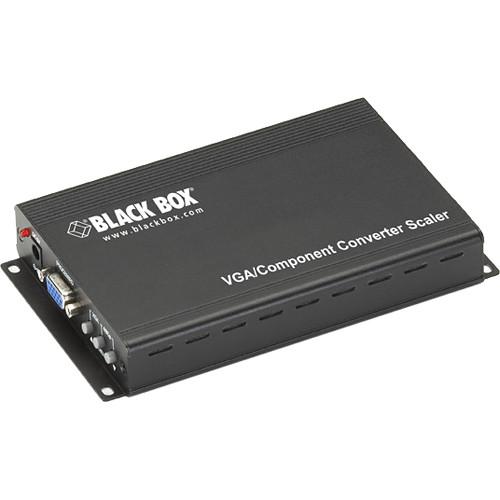

Product description The VGA/HDTV Scaler Plus from Black Box provides scaling and scan conversion so that two otherwise incompatible analog component or VGA video devices can work together. It will accept RGBHV, Y-Pb-Pr, Y-Cb-Cr input signals and, after any necessary conversion will output RGBHV or Y-Pb-Pr. It supports input and output resolutions from 640 x 480 (VGA) to 1920 x 1200 (WUXGA) for computer and 480i/576i (NTSC/PAL) to 1080p for component (HDTV) sources. The I/O connectors are of VGA type, however they can be adapted to component using a passive VGA to component adapter. Also, a component to VGA adapter is included as well as one VGA to VGA cable.

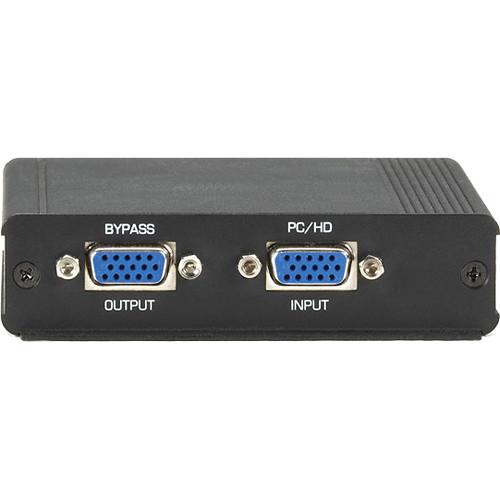

Scaling functionally allows the VGA/HDTV Scaler Plus to overcome a mis-match between the source device's resolution and the resolution(s) the display will expect. For example, a DVD player may only output 480i or 1080i while the projector it is connected to will only accept 1024 x 768 (XGA). With this product these sorts of incompatibility issues will no longer be a problem. - Loop-through (bypass) output passes unprocessed signal for local monitoring
- Able to invert the VGA output horizontally or mirror the image, making it suitable for teleprompters and rear-projection systems (for VGA to VGA applications only)
- Fine-tune the output picture by adjusting the resolution and refresh rates
- Automatically detects the input mode and timing parameters

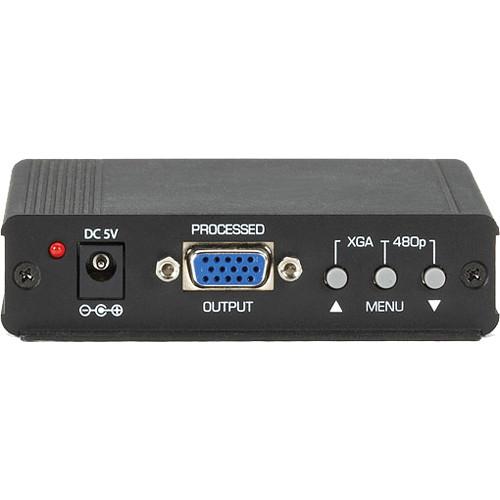

- Operated via push-button controls and an on-screen display menu
- Adjust sampling clock, phase, and position on screen
- Internal memory enables real-time frame-rate capture and conversion
- Enclosure is EMI shielded

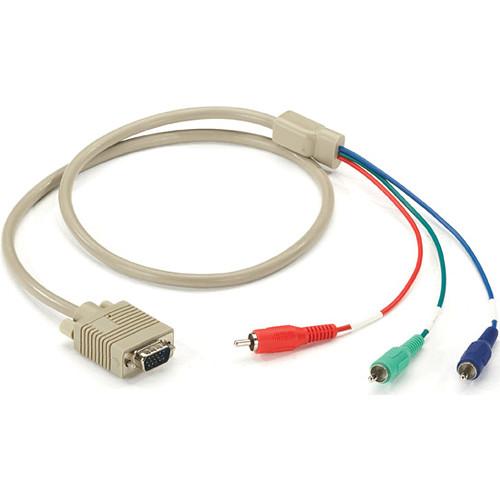

In the Box Black Box VGA/HDTV Scaler Plus 3' VGA to Component (3x RCA) Cable 3' VGA to VGA Cable Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box VGA HDTV Scaler Plus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box AC345A-R2 Specs | | | Input | 1 x Component/VGA on VGA connector
Supported Signals: RGBHV, Y-Pb-Pr, Y-Cb-Cr | | Input Resolutions | Computer: 640 x 480, 800 x 600, 1024 x 768, 1280 x 800, 1440 x 900, 1280 x 1024, 1400 x 1050, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200
HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p | | Output | Processed Output:
1 x Component/VGA on VGA connector
Supported Signals: RGBHV, Y-Pb-Pr
Bypass Output:
1 x Component/VGA on VGA connector
Supported Signals: RGBHV, Y-Pb-Pr, Y-Cb-Cr (same as input) | | Output Resolutions | Computer: 680 x 480, 800 x 600, 1024 x 768, 1280 x 800, 1440 x 900, 1280 x 1024, 1400 x 1050, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200
HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p | | | | Video Adjustments | Brightness, contrast, color, RGB | | | | Power Requirements | Power Supply: 115 VAC
Device: 12 VDC | | Dimensions (H x W x D) | 1.2 x 5.5 x 3"/ 3 x 13.9 x 7.6 cm | | Weight | 0.8 lb / 0.3 kg | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 11.1 x 7.3 x 2.9" |
