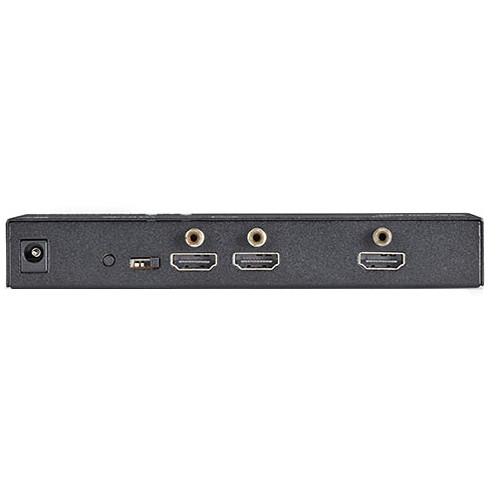

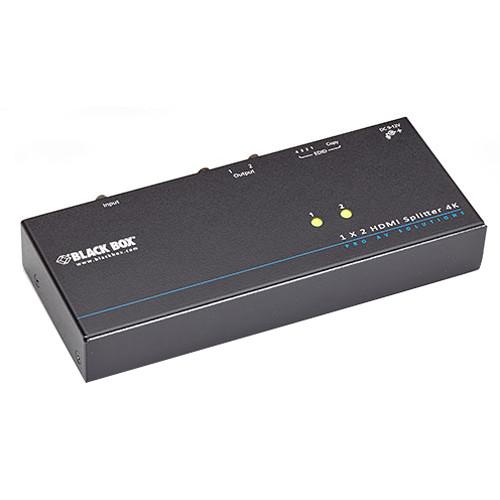

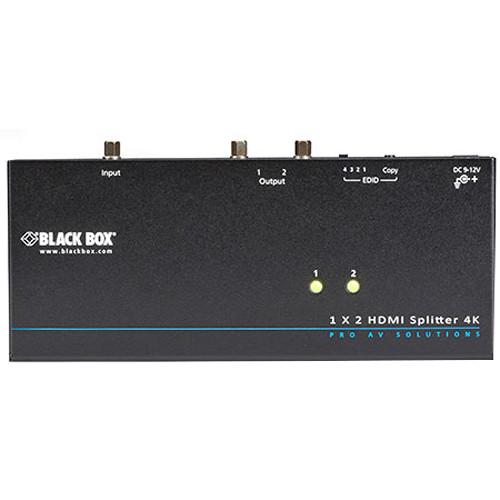

User Manual for Black Box VSP-HDMI1X2-4K 4K HDMI Splitter Click to enlarge the picture
Contents of the user manual for the Black Box VSP-HDMI1X2-4K 4K HDMI Splitter
- Product category: Distribution Amplifiers (DA's) Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box Distribution Amplifiers (DA's)
 |
User manual for the Black Box VSP-HDMI1X2-4K 4K HDMI Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description The VSP-HDMI1X2-4K 4K HDMI Splitter from Black Box distributes HDMI audio and video out to two displays. Advanced EDID functionality enables the splitter to read and/or copy EDID information automatically or manually to compatible screens. The splitter can also be daisy-chained to support additional displays. - Duplicates one video input to multiple HDMI outputs
- Supports HDMI display resolutions up to UHD (3840 x 2160)
- Unique EDID copy function provides maximum-definition display compatibility
- Enable separate audio and video EDID for multimedia/home theater system integration
- Automatic power save for when signal input is lost
- Cascaded operation for increased signal outputs
- Supports EDID and HDCP, and is Blu-ray ready for high definition display
- Includes LED indicators for signal activity monitoring
- Enables accurate and reliable reproduction of digital video signals without attenuation and distortion
In the Box Black Box VSP-HDMI1X2-4K 4K HDMI Splitter (1 x 2) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box VSP-HDMI1X2-4K 4K HDMI Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box VSP-HDMI1X2-4K Specs | TMDS Clock Frequency | 300 MHz | | Maximum Video Resolution | 4K (3840 x 2160 @ 30 Hz) The splitter is not 4K compatible when using Intel HD 4400 based services | | User Controls | 1 x EDID copy button | | Connectors | Input: 1 x HDMI female
Output: 2 x HDMI female | | Indicators | 2 x Output status LEDs | | Power Consumption | 9 to 12 VDC, 220 mA | | Enclosure | Metal | | Dimensions | 0.8 x 6.1 x 2.6" (2.0 x 15.6 x 6.5 cm) | | Weight | 10 oz (286 g) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 9.3 x 6.1 x 2.6" |
