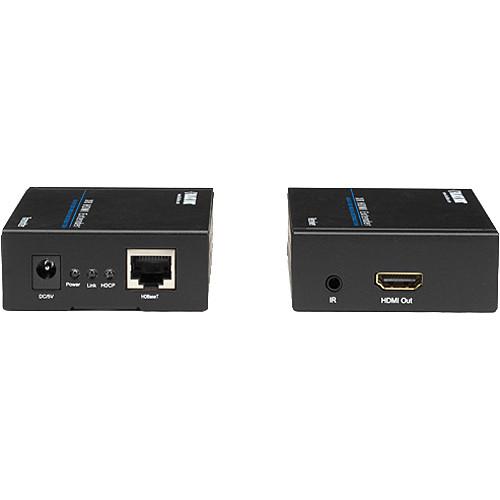

User Manual for Black Box VX-HDMI-TP-100M XR HDMI over CATx Extender Kit Click to enlarge the picture
Contents of the user manual for the Black Box VX-HDMI-TP-100M XR HDMI over
- Product category: Video Extenders & Repeaters Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box Video Extenders & Repeaters
 |
User manual for the Black Box VX-HDMI-TP-100M XR HDMI over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|

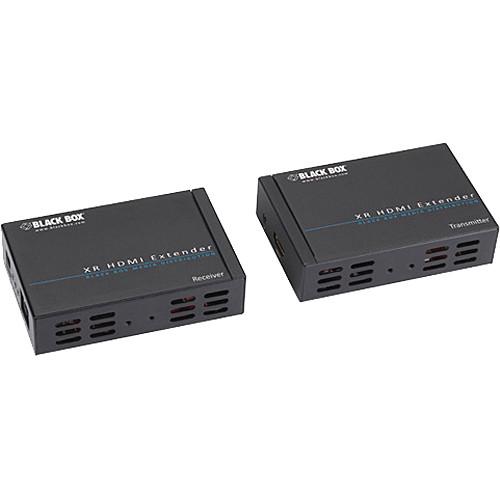

Product description The VX-HDMI-TP-100M XR HDMI (HDMI/IR) over CATx Extender Kit by Black Box, comprised of a local transmitter unit and a remote receiver unit, drives uncompressed HD video, audio, and control signals with a maximum video resolution of 1080p up to 328' away from your HDMI or DVI-D source using one CATx cable (CAT5e/6). A built-in IR extender function allows IR remote control of source devices from a remote viewing location. To do this, the extender sends IR commands received near the display back to the source devices. The extender supports 340 MHz/3.4 Gbps of HDMI video bandwidth per channel and 10.2 Gbps on all channels allowing transmission of 1080p 3D video and digital 7.1 surround audio. HDBaseT technology reduces susceptibility to EMI/RFI noise over the full 328' distance. EDID and HDCP communications are supported, meaning you can also extend content from a Blu-ray player or other protected-content source. For high-quality sound, the XR HDMI and IR extender transmits uncompressed LPCM signals as well as compressed audio, such as DTS-HD and Dolby TrueHD audio, as part of the HDMI signal. - Extends uncompressed HD video, audio, and control signals up to 328'
- Capable of resolutions up to 1920 x 1200, including 1080p
- Enables HDMI 10.2 Gbps over a single 330' CAT5e/6 cable
- IR extension with CEC passthrough for controlling source devices at the screen
- Supports HDCP and EDID for compatibilty with all monitors
- HDBaseT based for greater video capacity and 3D support
- Supports uncompressed HDMI signals featuring HDBaseT technology
- Supports 340-MHz/3.4-Gbps per channel (10.2 Gbps all channels) bandwidth
- Works with uncompressed audio such as LPCM
- No software or driver installation required
- HDCP compliant and Blu-ray ready
In the Box Black Box VX-HDMI-TP-100M XR HDMI (HDMI/IR) over CATx Extender Kit 2 x Power Supply IR Emitter IR Receiver 4 x Wallmount Bracket 8 x Mounting Screw Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box VX-HDMI-TP-100M XR HDMI over CATx Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box VX-HDMI-TP-100M Specs | HDTV Resolutions | Interlaced: (50 and 60 Hz) 480i, 576i, 1080i
Progressive: (50 and 60 Hz) 480p, 576p, 720p, 1080p | | PC Resolutions | Up to 1920 x 1200 / 1920 x 1080 | | Transmission Range | 328' (100 m), maximum Distance depends on the characteristics and quality of the cable and the type of HDMI source and display | | Input Video Signal | 1.2 VDC p-p | | Operating Frequency | Video Amplifier Bandwidth: 3.4 Gbps/340 MHz

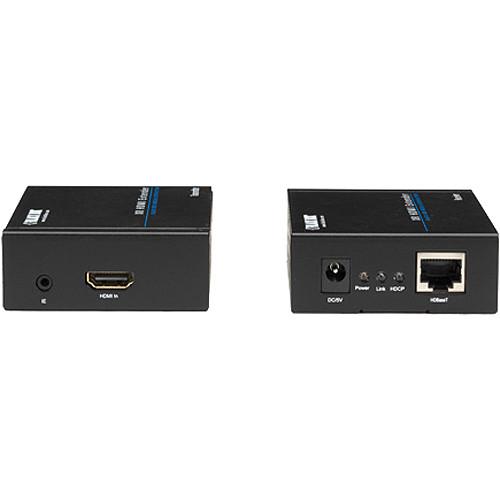

Vertical Frequency Range: 50/60 Hz | | Output Video | HDMI | | Video Bandwidth | 340 MHz / 3.5 Gbps per channel (10.2 Gbps on all channels) via HDMI | | Connectors | Local Unit:
1 x HDMI female, video input
1 x 3.5 mm phone jack, IR emitter
1 x RJ-45, interconnect
1 x 5 VDC power plug
Remote Unit:
1 x HDMI female, video output
1 x 3.5 mm phone jack, IR receiver
1 x RJ-45, interconnect
1 x 5 VDC power plug | | Indicators | Each Unit:
1 x LED, power
1 x LED, link
1 x LED, HDCP | | Power | Each Unit:
115 - 230 VAC, 50 - 60 Hz, external | | Dimensions (H x W x D) | Each Unit:
1 x 2.6 x 3.9" (2.5 x 6.6 x 4 cm) | | Weight | Each Unit:
0.4 lb (0.2 kg) | | | | Package Weight | 2.531 lb | | Box Dimensions (LxWxH) | 12.6 x 11.7 x 2.8" |
