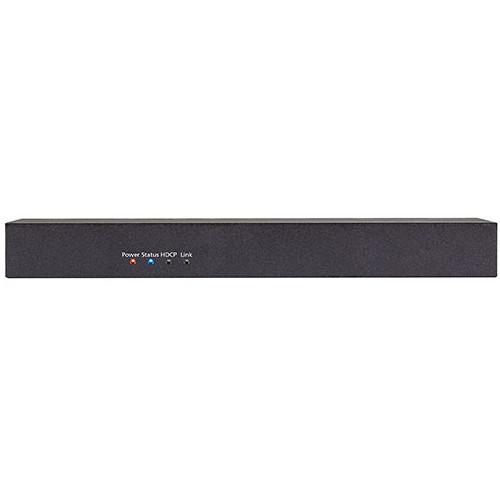

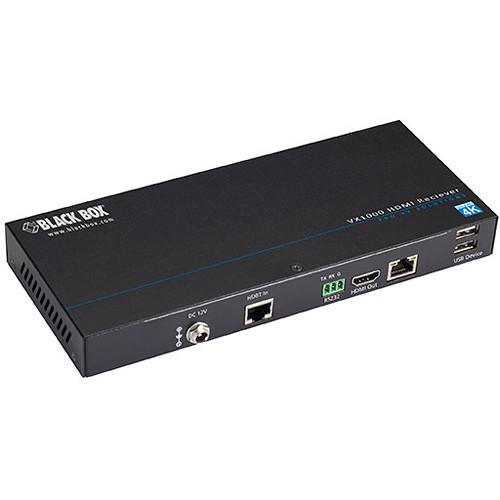

User Manual for Black Box VX1000 Series Extender 4K, HDMI, HDBaseT, and USB Receiver Click to enlarge the picture
Contents of the user manual for the Black Box VX1000 Series Extender 4K,
- Product category: Video Extenders & Repeaters Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box Video Extenders & Repeaters
 |
User manual for the Black Box VX1000 Series Extender 4K, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description Provided by third party: This HDMI extension of audio, video, USB, control, Ethernet, and power over a single CATx cable enables video extension up to 330 ft. at 1080p and up to 230 ft. at 4K Ultra HD.
- Key Features
-
- Supports up to 4K (UHD) resolutions
- HDBaseT for the most reliable connection and highest video quality
- True 48V PoH powering only requires a single power supply
- USB support for keyboard and mouse
- Automatic HDMI EDID management
- HDCP 2.2 compliance
- RS-232 and Ethernet passthrough
- All connections on the same side of device
- Works with 4 x 1 and 8 x 2 Presentation Switchers (AVSC-0401H, AVSC-0802H)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box VX1000 Series Extender 4K, HDMI, HDBaseT, and USB Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

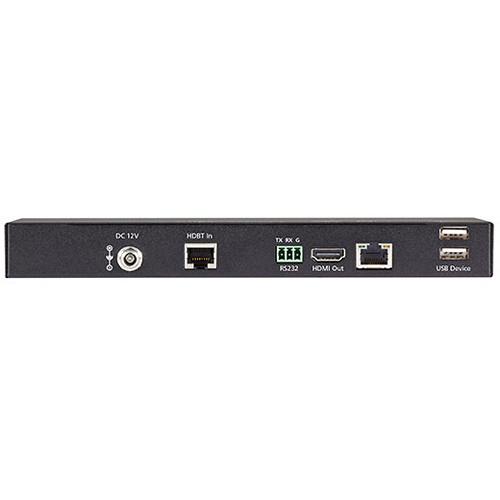

Technical parametersBlack Box VX-1001-RX Specs | | | Device Type | Video/audio/infrared/USB/serial/network extender | | | | Connectivity Technology | Wired | | Data Link Protocol | HDBaseT | | Keyboard / Mouse Interface | USB | | Max Resolution | 4096 x 2160 | | Max Transfer Distance | 328 ft | | | | Interfaces | 1 x HDMI (output) - 19 pin HDMI Type A female
2 x USB (output) - Type A female
1 x network (output) - RJ-45 female
1 x RS-232 (output)
1 x remote control (output)
1 x HDBaseT (input) - RJ-45 female | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 12.362 x 7.087 x 3.071" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
