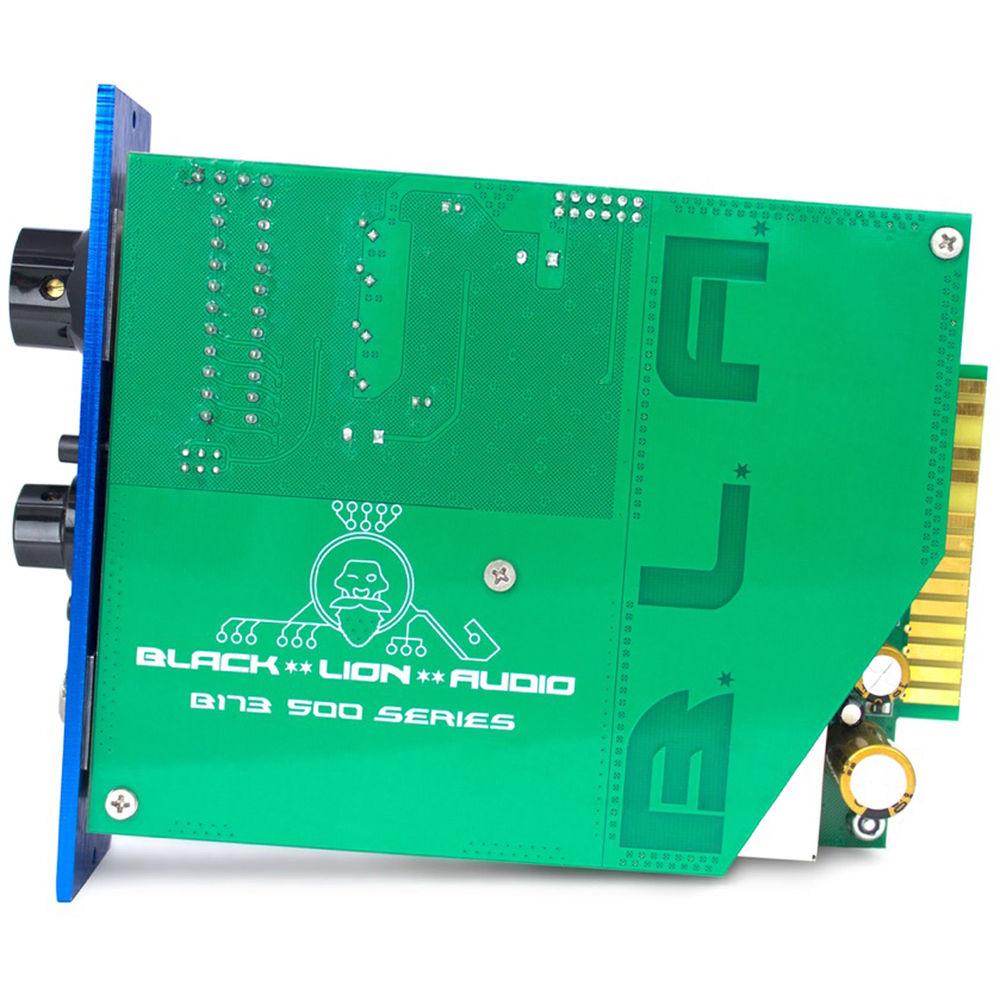

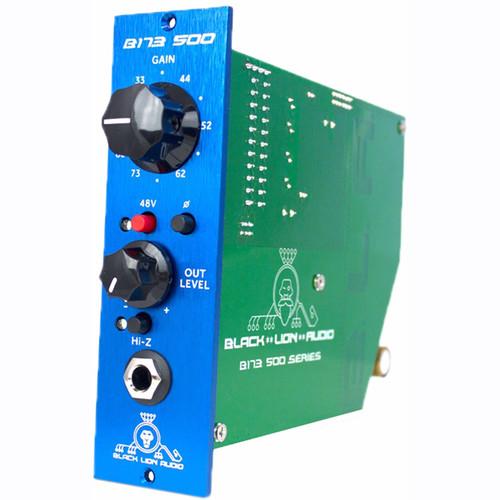

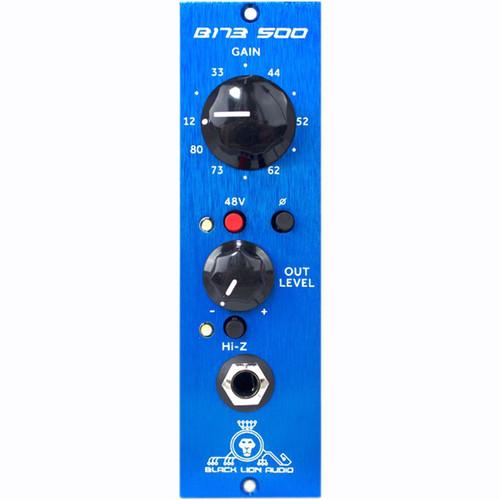

User Manual for Black Lion Audio 500 Series B173 Preamplifier Click to enlarge the picture
Contents of the user manual for the Black Lion Audio 500 Series B173
- Product category: Microphone Preamps Black Lion Audio
- Brand: Black Lion Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Lion Audio Microphone Preamps
 |
User manual for the Black Lion Audio 500 Series B173 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Lion Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Lion Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Lion Audio product will considerably shorten its lifespan!
|
Product description The Black Lion Audio 500 Series B173 Preamplifier features the Cinemag input and Edcor output transformers. The +24V rail needed to power the B173 500 is converted from the +/- 16V rails of a 500 series rack using a custom DC-DC converter circuit specially designed to keep any unwanted noise or modulations out of the signal path. Complete isolation is then achieved through the use of inductors, ferrite beads, decoupling capacitors, power regulation, and a custom enclosure surrounding the entire circuit. - 500 series format (500 series rack required for use)
- Cinemag input transformer
- Hi-Z input (passive, unbalanced)
In the Box Black Lion Audio 500 Series B173 Preamplifier Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Lion Audio 500 Series B173 Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Lion Audio B173 Specs | Microphone Input Level | +1 dBu | | Input Impedance | 200 Ohms | | Gain | +12 to +80 dB | | Equivalent Input Noise | Noise Floor: -103 dB | | THD+N | 0.072% @ +8 dBu gain
0.074% @ +29 dBu gain
0.082% @ +44 dBu gain
0.152% @ +60 dBu gain
0.709% @ +76 dBu gain | | Bandwidth | (1 kHz, 150 Ohms source, Unweighted): 10 Hz to 30 kHz | | Hi-Z | THD+N
@ +4 dBu Output: 0.0045% @ +10 dBu, 0.0076% @ +15 dBu | | Output | Max Output Level: +29 dBu
Output Impedance: 600 Ohms | | Power Supply | +24 V provided by ultra-low noise, custom power supply (500 series rack required) | | Dimensions | 1.5 x 6.5 x 5.25" (38.1 x 165.1 x 133.35 mm) | | Weight | 1.2 lb (0.54 kg) |
