User Manual for Black Lion Audio Auteur MkII 500 Click to enlarge the picture
Contents of the user manual for the Black Lion Audio Auteur MkII 500
- Product category: Microphone Preamps Black Lion Audio
- Brand: Black Lion Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Lion Audio Microphone Preamps
 |
User manual for the Black Lion Audio Auteur MkII 500 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Lion Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Lion Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Lion Audio product will considerably shorten its lifespan!
|

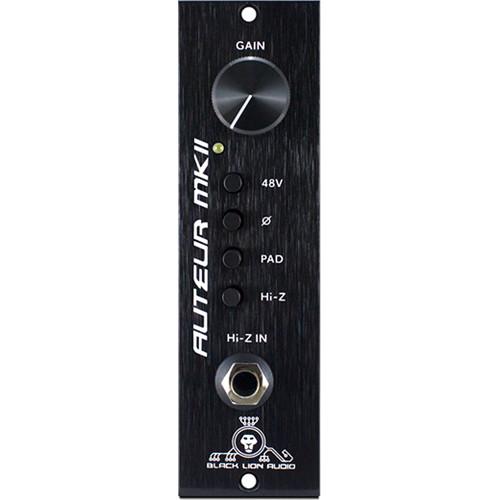

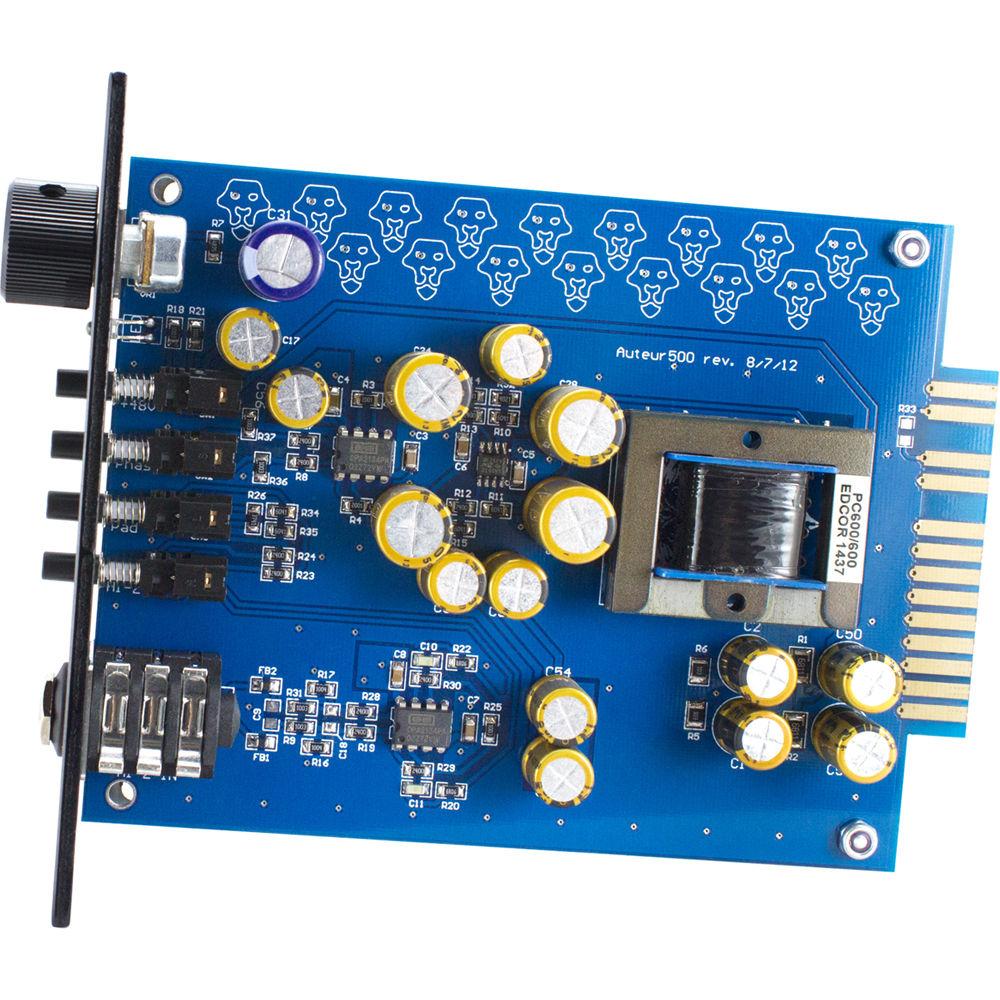

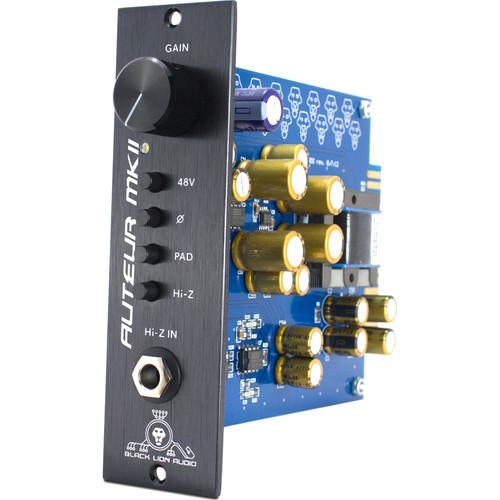

Product description The Auteur MkII 500 from Black Lion Audio is a single-channel, 500-series preamp that features phantom power, phase, a 13 dBu pad, and a Hi-Z input. - 500-series format (500 rack required)
- Ultra high-speed input stage
UPC: 700254867182 In the Box Black Lion Audio Auteur MkII 500 Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Lion Audio Auteur MkII 500 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Lion Audio AUTEUR MKII 500 Specs | Maximum Input Level | Microphone: 1 dBu
DI: 18 dBu | | Input Impedance | Microphone: 6 kOhms
DI: 2.2 MOhms balanced, 1.1 MOhms unbalanced | | Pad | 13 dBu | | Gain | 16 to 67 dB | | Equivalent Input Noise | Microphone: -108 dB
DI: -82 dB | | THD + N | Microphone:
0.0046% @ +12 dBu gain
0.0064% @ +24 dBu gain
0.012% @ +32 dBu gain
0.028% @ +40 dBu gain
0.085% @ +50 dBu gain
0.3% @ +62 dBu gain
DI:
0.011% @ +16dB gain
0.024% @ +24dB gain
0.15% @ +40dB gain
02.2% @ +67dB gain | | Bandwidth | 1 kHz, 600 ohms unbalanced source, unweighted: 10 Hz to 30 kHz | | Maximum Output Level | 28 dBu | | Output Impedance | 600 ohms | | Power Supply | +/- 15 V (from 500 rack) | | Dimensions | 1.5 x 6.5 x 5.25" (3.81 x 16.51 x 13.34 cm) | | Weight | 0.8 lb (0.36 kg) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 13.1 x 10.6 x 4.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 45 owners. Add your rating and experience with the product.
