User Manual for Black Lion Audio Auteur Quad 4-Channel Microphone Preamp and DI Click to enlarge the picture
Contents of the user manual for the Black Lion Audio Auteur Quad 4-Channel
- Product category: Microphone Preamps Black Lion Audio
- Brand: Black Lion Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Lion Audio Microphone Preamps
 |
User manual for the Black Lion Audio Auteur Quad 4-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Lion Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Lion Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Lion Audio product will considerably shorten its lifespan!
|

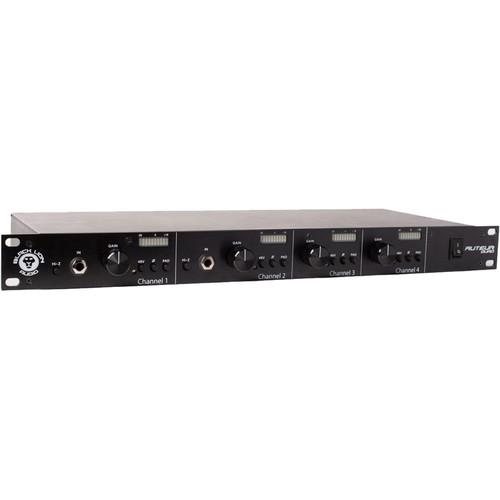

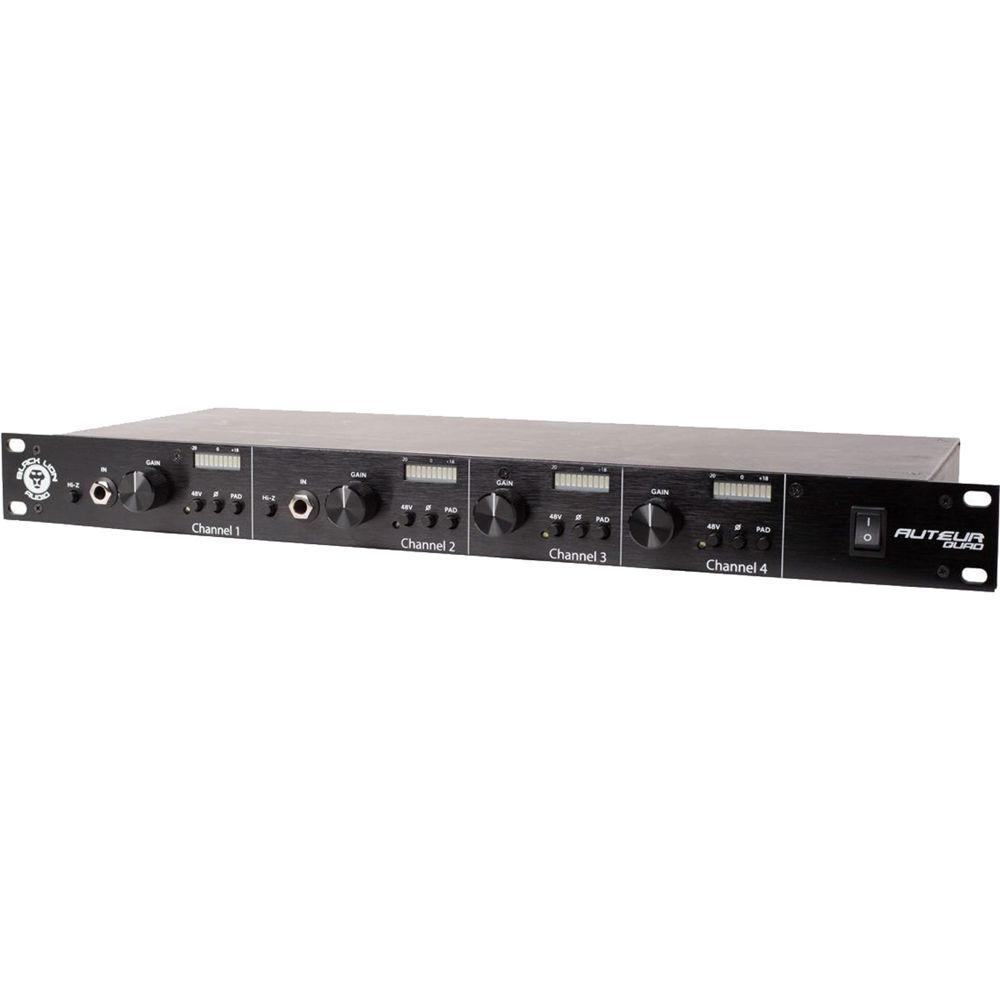

Product description NAMM 2018: Black Lion Releases New Compressor, Mic Pres, and 500-Series Rack Read More The Black Lion Audio Auteur Quad is a rack-mountable, 4-channel microphone preamp and DI designed to provide versatile amplification of microphone and instrument signals for producers, musicians, and recording engineers in home, project, commercial, and mobile-recording studios. Up to 65 dB of gain is available for each preamp, which utilizes an XLR input and 1/4" and XLR outputs. The first two preamps offer DI inputs via front-panel 1/4" TS hi-Z jacks for easy hook-up of instruments. The combination of an IC-based input stage and Edcor output transformers yields a tonal signature that works well on anything from vocals to drums to obscure instruments. Activate the -10 dB pads to prevent distortion when miking loud sources. Polarity and phantom power are selectable per channel. Each channel also features a 10-segment LED meter to indicate the current level between -20 dB and +18 dB. The Auteur Quad occupies 1 RU and ships with an external power supply. - Up to 65 dB of gain for up to four microphones
- Two unbalanced 1/4" hi-Z DI inputs for direct connection of instruments such as guitar, bass, and keyboards

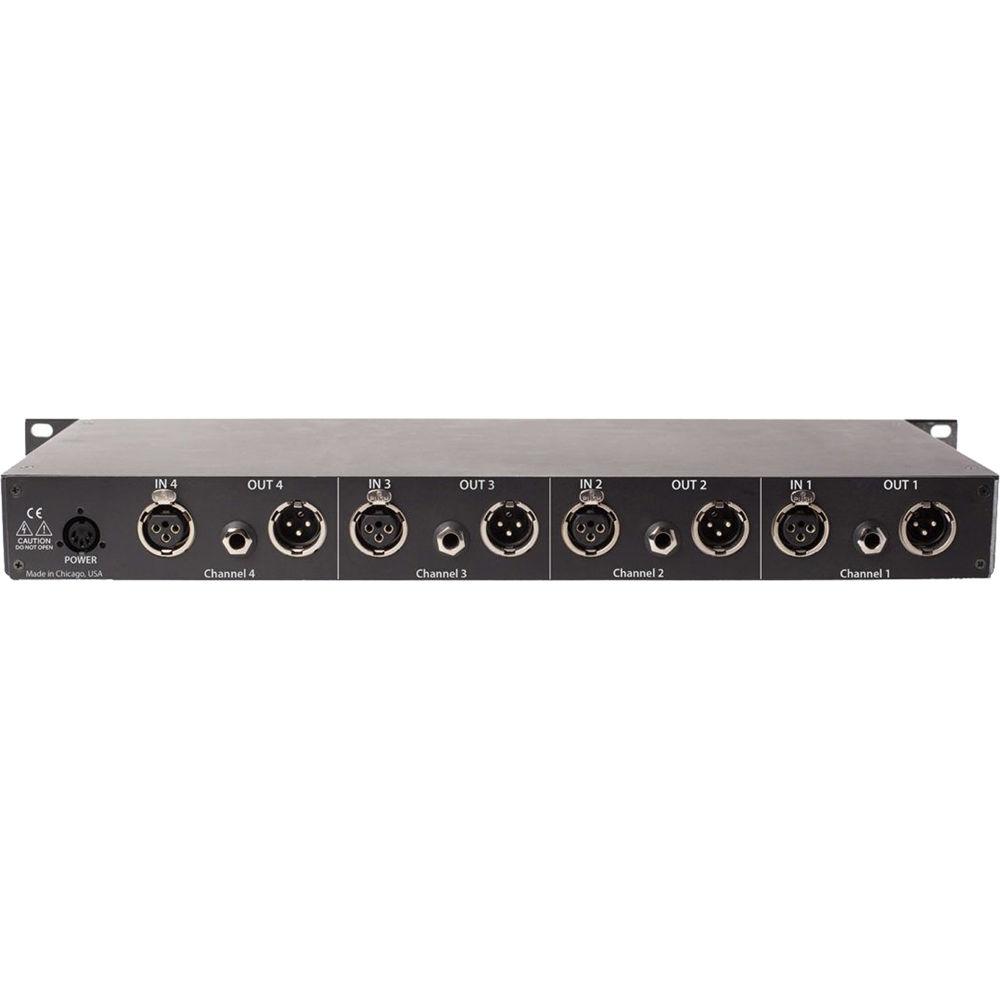

- Four rear-panel XLR 3-pin inputs
- Rear-panel XLR 3-pin and 1/4" outputs per channel
- IC-based front end and Edcor transformers on the back end deliver a flexible combination of transparency and color
- Per-channel switches for phantom power, polarity, and -10 dB pad
- 10-segment meter on each channel indicates level between -20 dB and +18 dB
UPC: 713541493551 In the Box Black Lion Audio Auteur Quad 4-Channel Microphone Preamp and DI External Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Lion Audio Auteur Quad 4-Channel Microphone Preamp and DI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Lion Audio Auteur Quad Specs | Rack Height | 1 RU | | Number of Channels | 4 | | Inputs | 4 x XLR 3-pin
2 x 1/4" TS hi-Z | | Output | 4 x XLR 3-pin
4 x 1/4" jacks | | Phantom Power | 48 VDC (selectable per channel) | | Gain Range | +14 to +65 dB | | Maximum Input Level | Mic: +1 dBu
DI: +18 dBu | | Maximum Output Level | +26 dBu | | Input Impedance | Mic: 6 kOhms
DI Balanced: 2.2 MOhms
DI Unbalanced: 1.1 MOhms | | Output Impedance | 600 Ohms | | Pad | Mic: 10 dBu
DI: 13 dBu | | Equivalent Input Noise | Mic: -108 dBu
DI: -82 dB | | THD+N | Mic (at +4 dBu output):
.0033% at +10 dBu gain
.0054% at +24 dBu gain
.0112% at +32 dBu gain
.027% at +40 dBu gain
.078% at +50 dBu gain
.21% at +62 dBu gain
DI (at +4 dBu output):
.007% at +12 dBu
.11% at +40 dBu | | Frequency Response | Mic: 10 Hz to 30 kHz (1 kHz, 150 Ohms source, unweighted)
DI: 10 Hz to 30 kHz (1 kHz, 600 Ohms unbalanced source, unweighted) | | Specialties | 4 x polarity switches
4 x 10-segment LED meter | | Dimensions (W x D x H) | 19.0 x 7.6 x 1.8" / 48.3 x 19.3 x 4.6 cm | | Weight | 6.1 lb / 2.8 kg |
