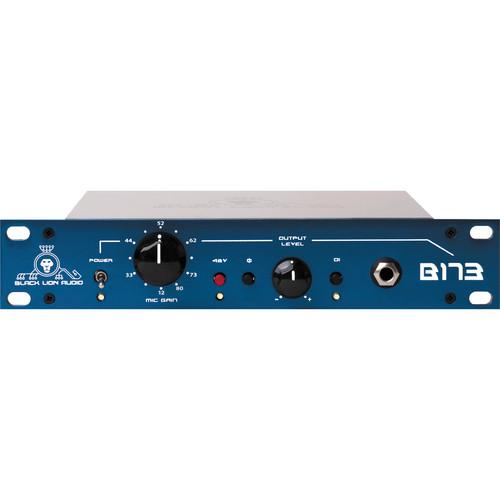

User Manual for Black Lion Audio B173 Single-Channel Microphone Preamplifier Click to enlarge the picture
Contents of the user manual for the Black Lion Audio B173 Single-Channel Microphone
- Product category: Microphone Preamps Black Lion Audio
- Brand: Black Lion Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Lion Audio Microphone Preamps
|
User manual for the Black Lion Audio B173 Single-Channel Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Lion Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Lion Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Lion Audio product will considerably shorten its lifespan!
|
Product description The Black Lion Audio B173 Single-Channel Microphone Preamplifier is a 1RU 1/2-rack chassis preamplifier designed for studio recording. The unit is based on the classic Neve 1073, utilizing a discrete Class A, single-ended style microphone amp and a discrete balanced output amplifier.
For I/O, it features an XLR-3F microphone input as well as a 1/4" high-impedance buffer DI input for connecting instruments such as guitars and keyboards. The output is supplied via a 1/4" back plate connector.
For controls, the unit features a microphone gain knob in 12 steps from +12 to +80 dB of gain, and output gain control, selectable +48V phantom power for utilizing condenser microphones, a power switch, and a switch for routing either the XLR or DI input to the output transformer. Due to the circuit design of the preamp, it will require approximately two to three minutes of warm up time for distortion to settle throughout the signal path. UPC: 700254867007 In the Box Black Lion Audio B173 Single-Channel Microphone Preamplifier Limited 2-Year Warranty Manual PDF 302kbcyscyswfcvrfucreawdt Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Lion Audio B173 Single-Channel Microphone Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Lion Audio B173 Specs | I/O | 1x XLR-3F balanced microphone input
1x 1/4" DI input
1x 1/4" output | | Control | Gain knob in 12-steps | | Gain Range | +12 to +80 dB max gain | | THD + N | at 12 dB gain: 0.07%
at 62 dB gain: 0.14% | | Power Requirements | 24 VDC at 15 W | | Warm-Up Time | 2 to 3 minutes | | Rack Mount | 1RU x 1/2 | | Dimensions (W x H) | 9.5 x 1.75" (24 x 4.4 cm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 4.75 lb | | Box Dimensions (LxWxH) | 13.1 x 9.8 x 4.2" |
