User Manual for Black Lion Audio Micro Clock MKIII XB Word Clock Click to enlarge the picture
Contents of the user manual for the Black Lion Audio Micro Clock MKIII
- Product category: WordClock & Syncronization Black Lion Audio
- Brand: Black Lion Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Lion Audio WordClock & Syncronization
 |
User manual for the Black Lion Audio Micro Clock MKIII contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Lion Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Lion Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Lion Audio product will considerably shorten its lifespan!
|

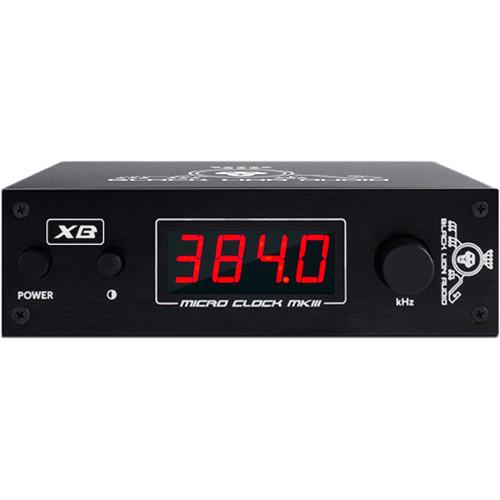

Product description The Micro Clock MKIII XB from Black Lion Audio is a very accurate word clock with only 0.6pS RMS of jitter at the BNC outputs. It can be used as the master word clock in large production or broadcast facilities or for re-clocking digital mixing consoles at live shows or houses of worship. Its small form factor has the ability to drive up to 1,000 feet of coaxial cable and it is suitable for improving the conversion quality of an audio interface. It can sync all of your digital gear together, even if it's located in different rooms, or different buildings. Full- and 1/2-rack removable rack ears are also included. - Ultra-low jitter, harmonically-enhanced word clock signal generation
- 8 selectable sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4kHz, 192 kHz, 352.8 kHz, and 384 kHz
- 6 BNC outputs with dedicated output drivers for maximum isolation

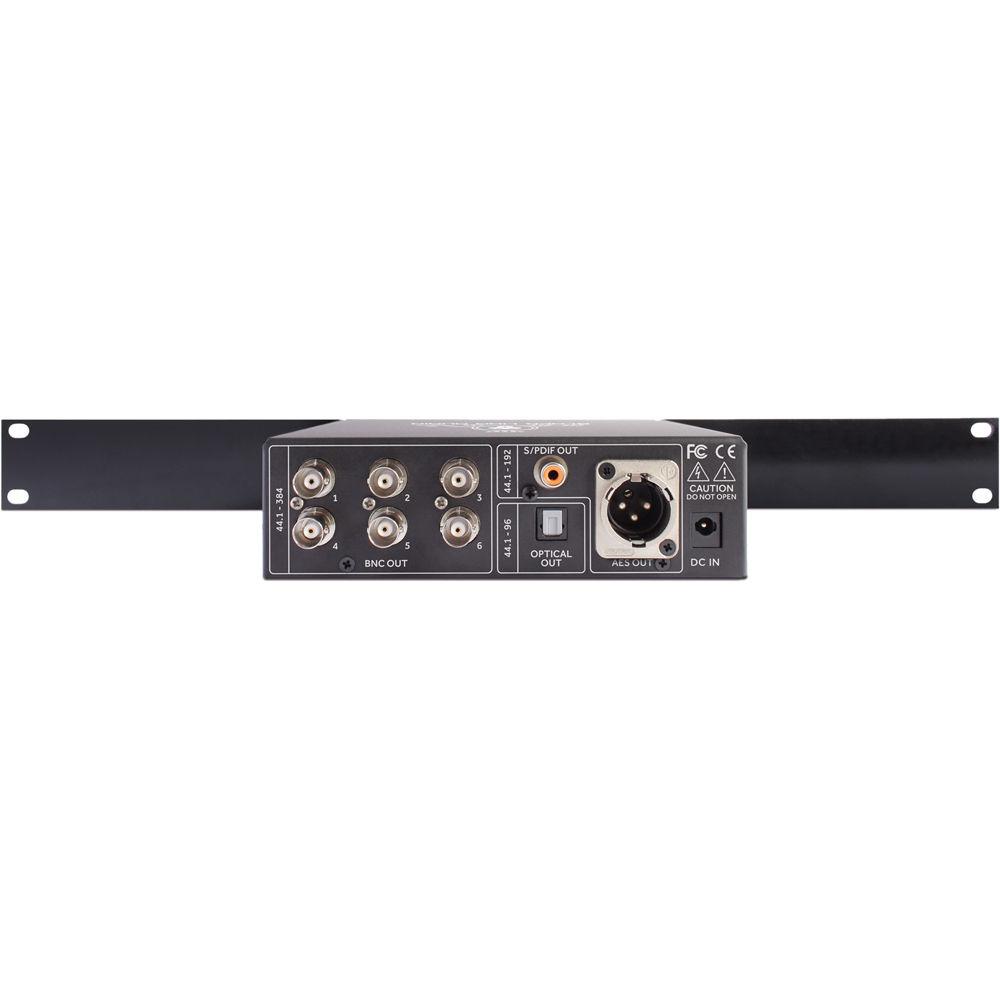

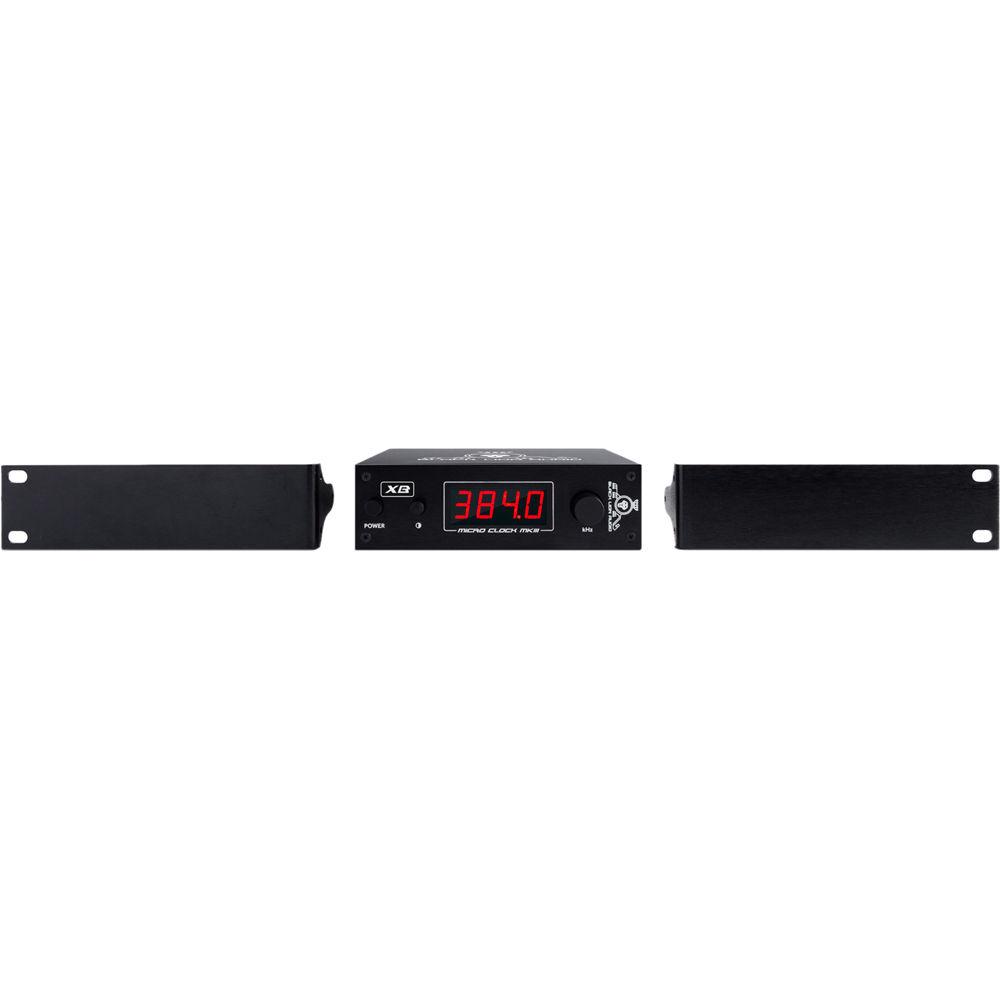

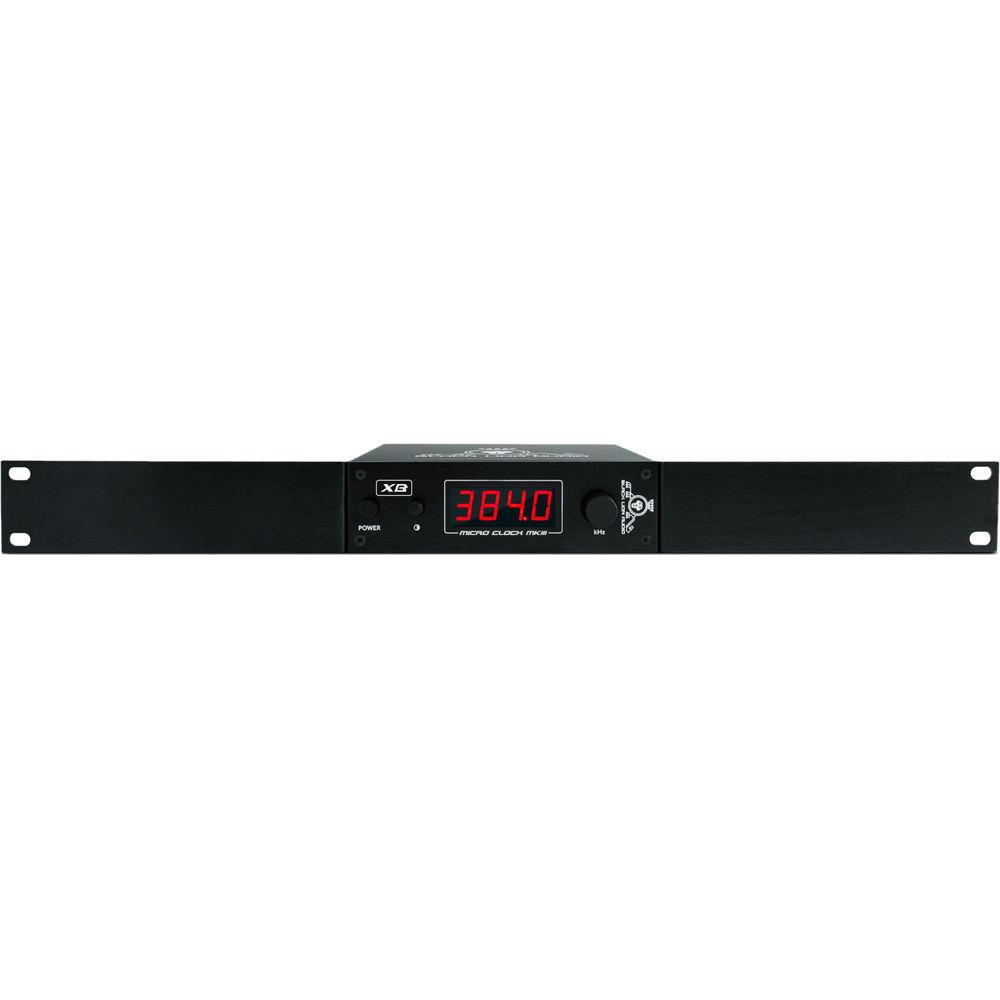

UPC: 700254867199 In the Box Black Lion Audio Micro Clock MKIII XB Word Clock Full- and Half-Rack Ears with Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Lion Audio Micro Clock MKIII XB Word Clock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

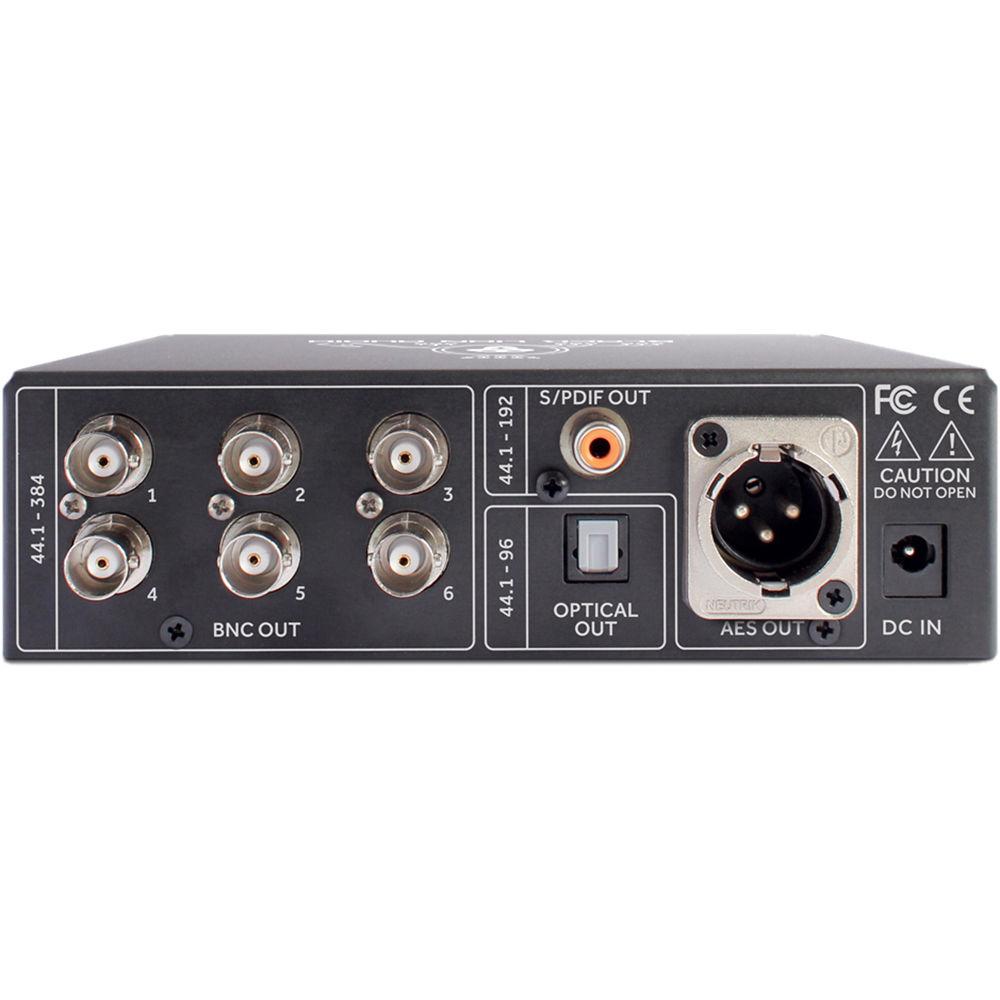

Technical parametersBlack Lion Audio MICROCLOCKMK3XB Specs | Jitter | 0.6 pS RMS (BNC outputs) | | Outputs | 6 x BNC
1 x XLR AES
1 x RCA S/PDIF
1 x optical S/PDIF (recommended max. cable length = 3.3' (1 m) | | BNC | 75 Ohms, 5 V unterminated | | RCA | S/PDIF: 75 Ohms, unbalanced | | AES | 110 Ohms, balanced | | Clock Frequency | BNC: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
RCA S/PDIF & AES: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Optical S/PDIF: 44.1, 48, 88.2, 96 kHz | | Power | 9 VDC (6 W power consumption) | | Power Connector | 2.1 mm barrel connector with 5.5 mm outer diameter, center-pin positive | | Dimensions (L x W x H) | 6.5 x 6 x 1.75" (17 x 15 x 4.4 cm) | | Weight | 4 lb (1.8 kg) | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 13.1 x 10.4 x 4.6" |
